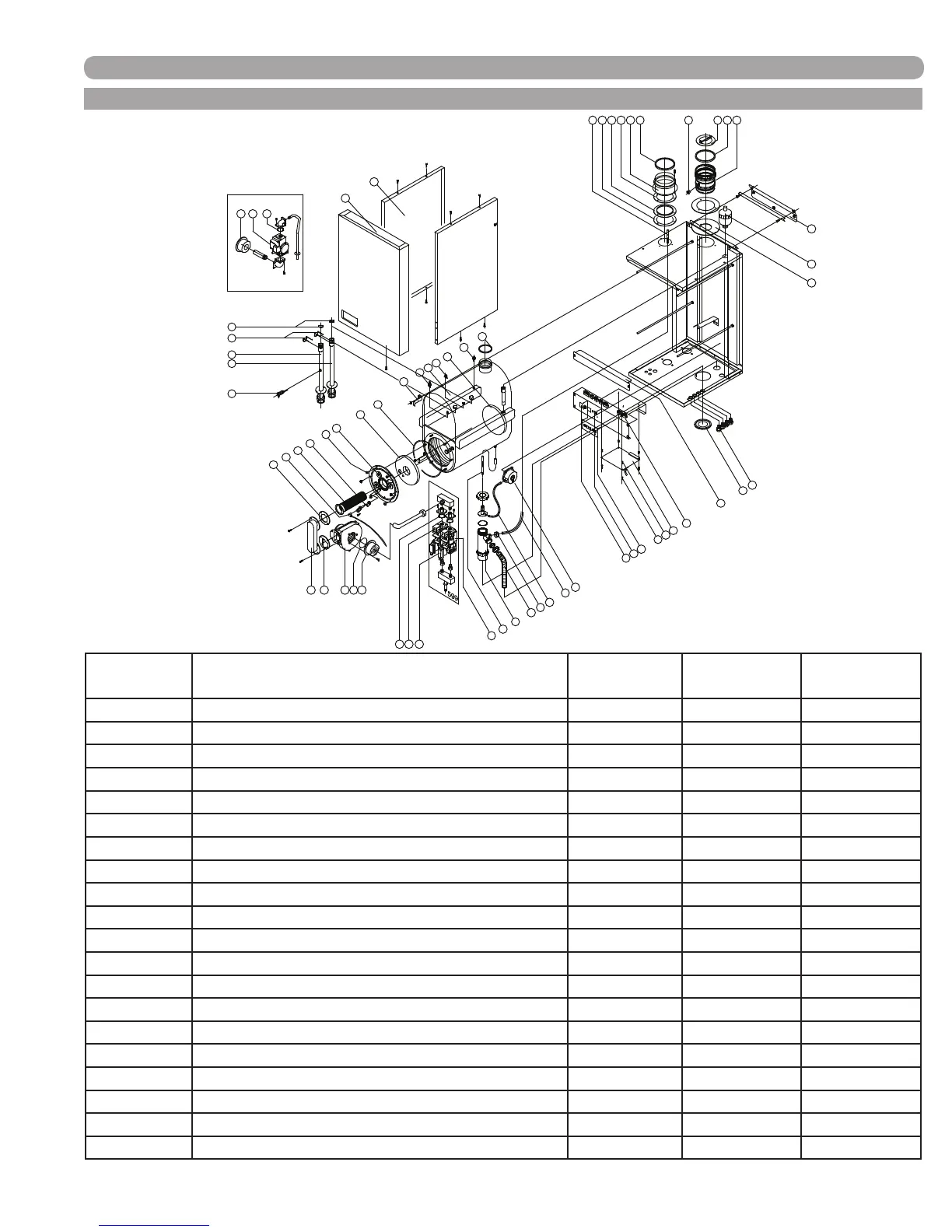

J. EVO DUO (HW 299-599) PARTS BREAKDOWN
NO. ON
DRAWING
PART DESCRIPTION PART NO.
299
PART NO.
399
PART NO.
599
1 Side panel JKR 74071 JKR 74071 JKR 74072
2 Front panel JKR 74073 JKR 74073 JKR 74074
3, 53, 56 Seal ring 115mm / 130mm GKT 74031 GKT 74031 GKT 74025
4, 8 Inlet / Outlet Sensor NTC TST 74287 TST 74287 TST 74287
5 Burner room insulation (target wall) C/F C/F C/F
6a High limit thermostat 195
o
F HLC 74066 HLC 74066 HLC 74066
6b High limit thermostat 225
o
F HLC 74274 HLC 74274 HLC 74274
7 Heat Exchanger C/F C/F C/F
10 Gasket burner door - heat exchanger GKT 74035 GKT 74035 GKT 74035
11 Insulation burner door FIB 74093 FIB 74093 FIB 74093
12 Equipped burner door incl. gasket & cord BNR 74056 BNR 74056 BNR 74056
13 Nut with ange 6 ea. M6 x 0.1 MSC 74012 MSC 74012 MSC 74012
14 Electrode Assembly PLT 74058 PLT 74058 PLT 74058
15 Burner C/F C/F C/F
16 Ignition cable with plug WRE 74064 WRE 74064 WRE 74064
17 Gasket burner & gas / air inlet pipe GKT 74029 GKT 74029 GKT 74029
18 O-Ring Quick Connect GKT 74032 GKT 74033 GKT 74034
19 Clip Quick Connect MSC 74022 MSC 74022 MSC 74023
20 Outlet Tube Assembly C/F C/F C/F
21 Inlet Tube Assembly C/F C/F C/F
