Replacing the print head (continued)
To replace the print head, please proceed as follows:
Before changing the print head, make sure you unplug the power cable.
!

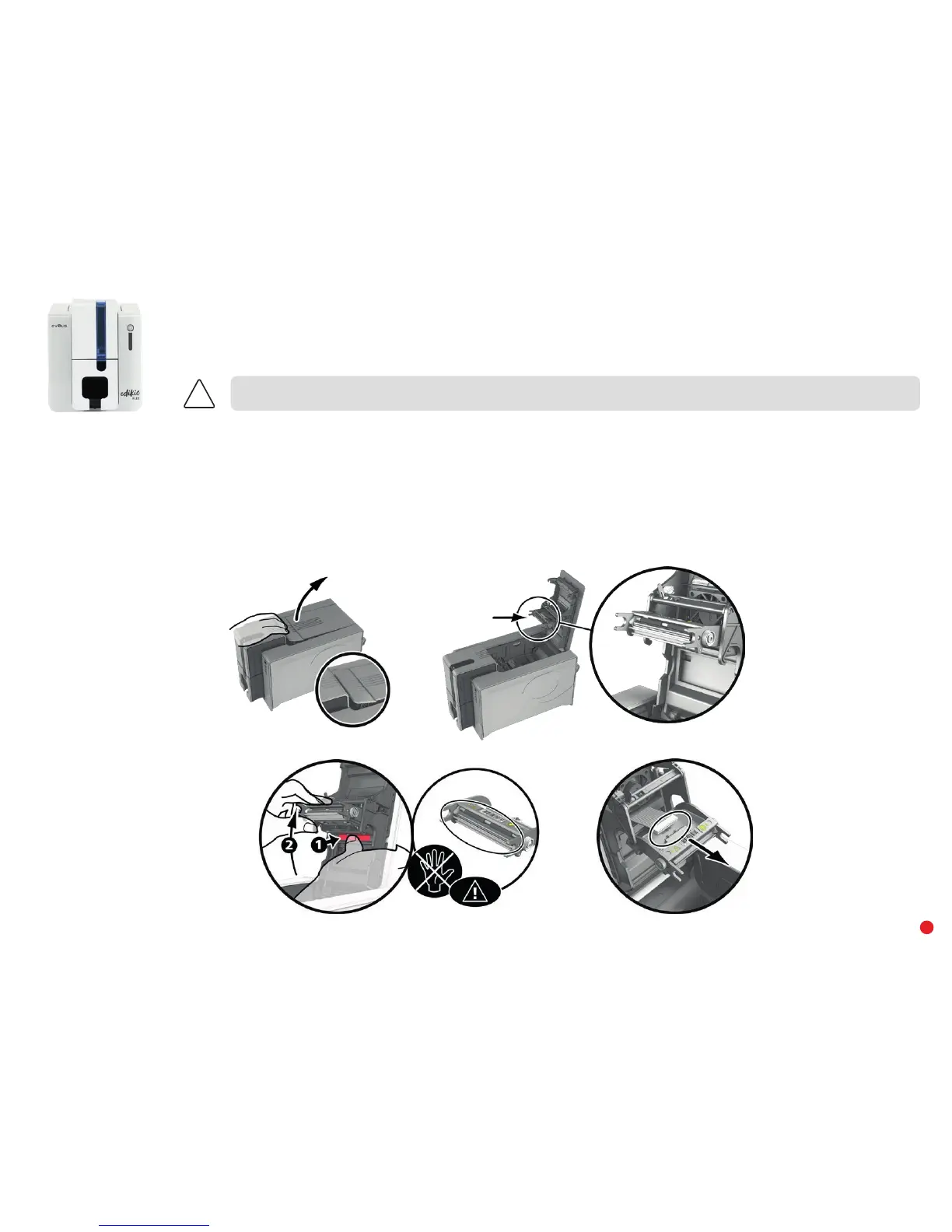

Step 1 - Removing the defective print head
1 Open the printer cover.
2 Locate the print head.
3 Press on the plastic part behind the head (pressure plate) and pull the head with your other hand as shown in the diagram in order to
free the lugs from the holding fork, then remove the lugs from their slots.
4 Tilt the head carefully downwards and disconnect the connector linked to the cable without forcing the mechanism.
1
2
3
4
