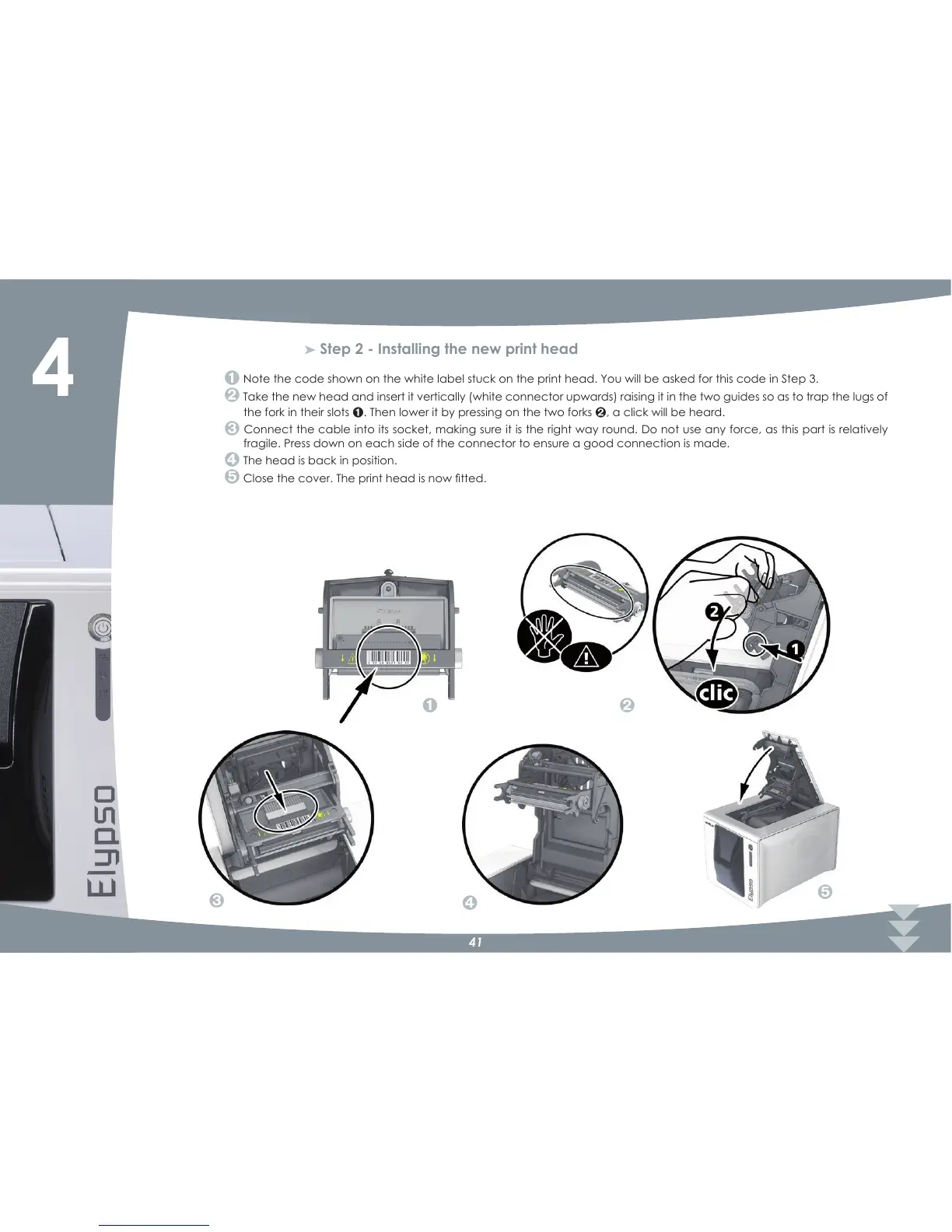

Step 2 ? Installing the new print head

1RWHWKHFRGHVKRZQRQWKHZKLWHODEHOVWXFNRQWKHSULQWKHDG<RXZLOOEHDVNHGIRUWKLVFRGHLQ6WHS

Take the new head and insert it vertically (white connector upwards) raising it in the two guides so as to trap the lugs of
the fork in their slots

. Then lower it by pressing on the two forks

, a click will be heard.

Connect the cable into its socket, making sure it is the right way round. Do not use any force, as this part is relatively
fragile. Press down on each side of the connector to ensure a good connection is made.

The head is back in position.

&ORVHWKHFRYHU7KHSULQWKHDGLVQRZÀWWHG
