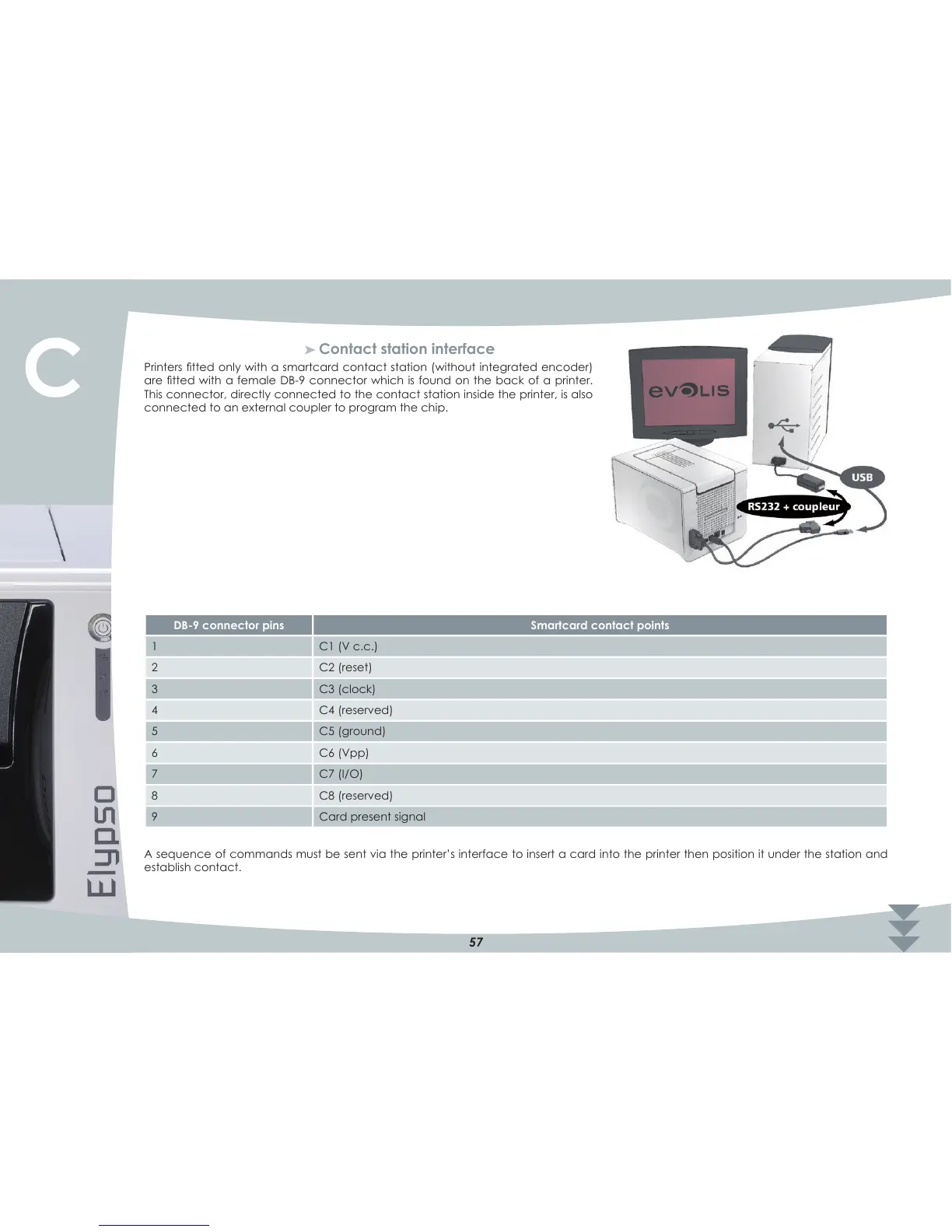

Contact station interface
3ULQWHUVÀWWHGRQO\ZLWKDVPDUWFDUGFRQWDFWVWDWLRQZLWKRXWLQWHJUDWHGHQFRGHU
DUHÀWWHGZLWKDIHPDOH'%FRQQHFWRUZKLFKLVIRXQGRQWKHEDFNRIDSULQWHU
This connector, directly connected to the contact station inside the printer, is also
connected to an external coupler to program the chip.
A sequence of commands must be sent via the printer’s interface to insert a card into the printer then position it under the station and
establish contact.
DB?9 connector pins Smartcard contact points
1 C1 (V c.c.)
2 C2 (reset)
3 C3 (clock)
 &UHVHUYHG
5 C5 (ground)
6 C6 (Vpp)
7 &,2
8 C8 (reserved)
9 Card present signal
