Examples of printer configuration
Page 27
6.6 Configuring a printer in Wi-Fi mode - Access point with WPA-AES security and IP
adress in DHCP mode
6.6.1 With the embedded web server
1. Open the web server page.
2. Click on Network tab.
3. Check the DHCP checkbox to enable the DHCP mode.
4. Click on Wireless tab.
5. Choose Access point in Mode eld.
6. Complete the Channel and SSID elds.
7. Set the Security eld to WPA2-PSK [AES] and complete the WPA Pass-Phrase eld (8 to 63
characters).
8. Click on Restart Network button.

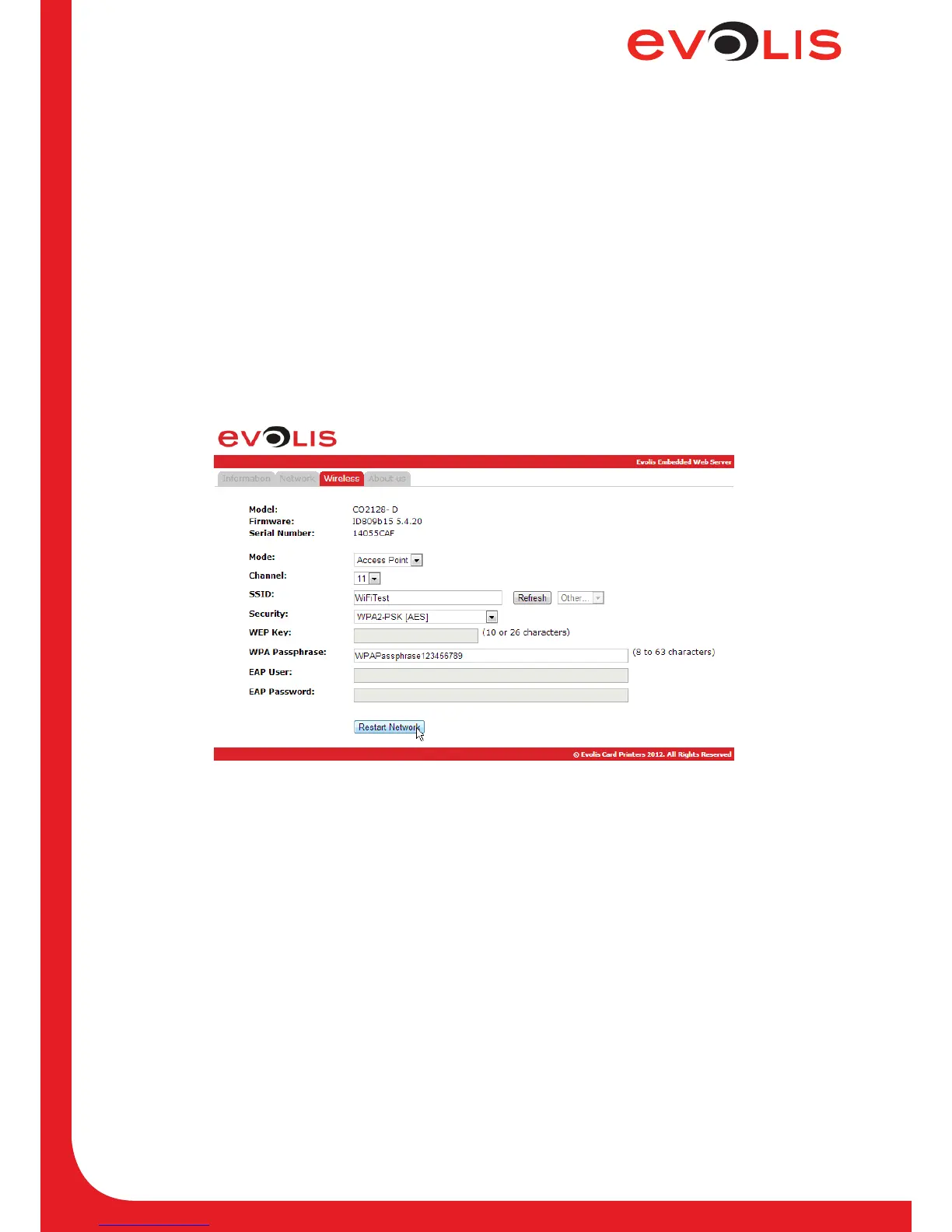

Figure 16: Web server (Wi-Fi - Access point - WPA-AES)
6.6.2 With escape commands
1. Open the Evolis Print Center and right-click on the printer you want to congure, then on properties.
2. In the printer properties window, click on Maintenance.
3. In Command eld, type sequentially:
- Pip;dhcp
- Pwifi;MDE;2
- Pwifi;WLCH;#Channel (i.e. 11) where #Channel is the channel of WiFi signal (between 1 and 13).
- Pwifi;WSI0;Name_Of_SSID (i.e. WiFiTest)
- Pwifi;WST0;0 to Disable security before send a new setting
- Pwifi;WPP0;Keyphrase (i.e. WPAPassphrase123456789) where Keyphrase contains 8 to 63
characters
- Pwifi;WST0;4
- Snetw
- Check your conguration by typing:
· Rip;1. The result should be: 192.168.2.13 Auto
· Rwifi;all You should verify that the previous parameters are correctly set.
