Examples of printer configuration
Page 23

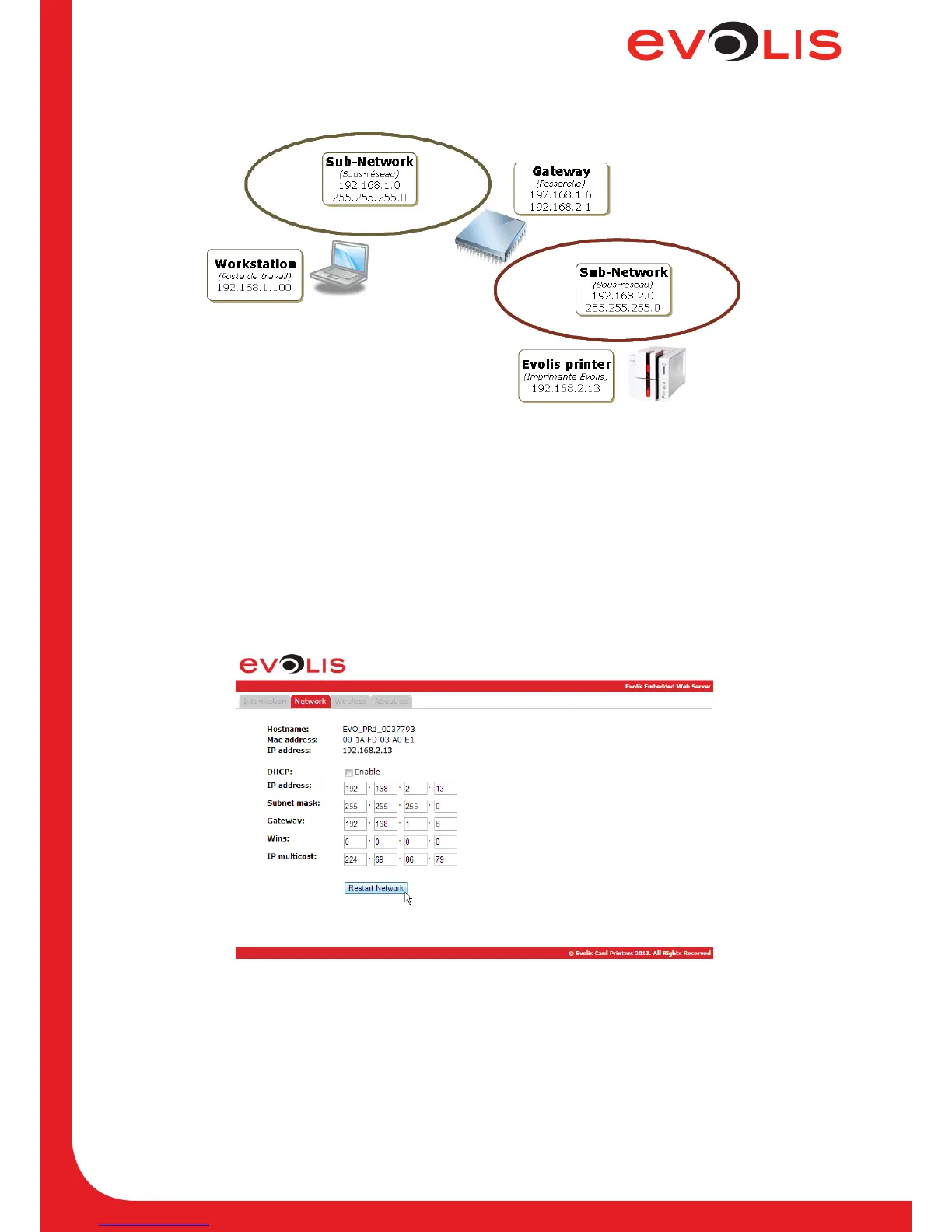

6.3 Configuring a printer with a static IP address, on a subnet without WINS resolution
Figure 12: Static IP configuration without WINS resolution
6.3.1 With the embedded web server
1. Open the web server page.
2. Click on Network tab.
3. Uncheck the DHCP checkbox to disable the DHCP mode.
4. Complete the IP address, Subnet mask and Gateway elds.
5. Complete the eld WINS with 0.0.0.0
6. Click on Restart Network button.
Figure 13: Web server (Without WINS resolution)
