Evolis Zenius User Manual

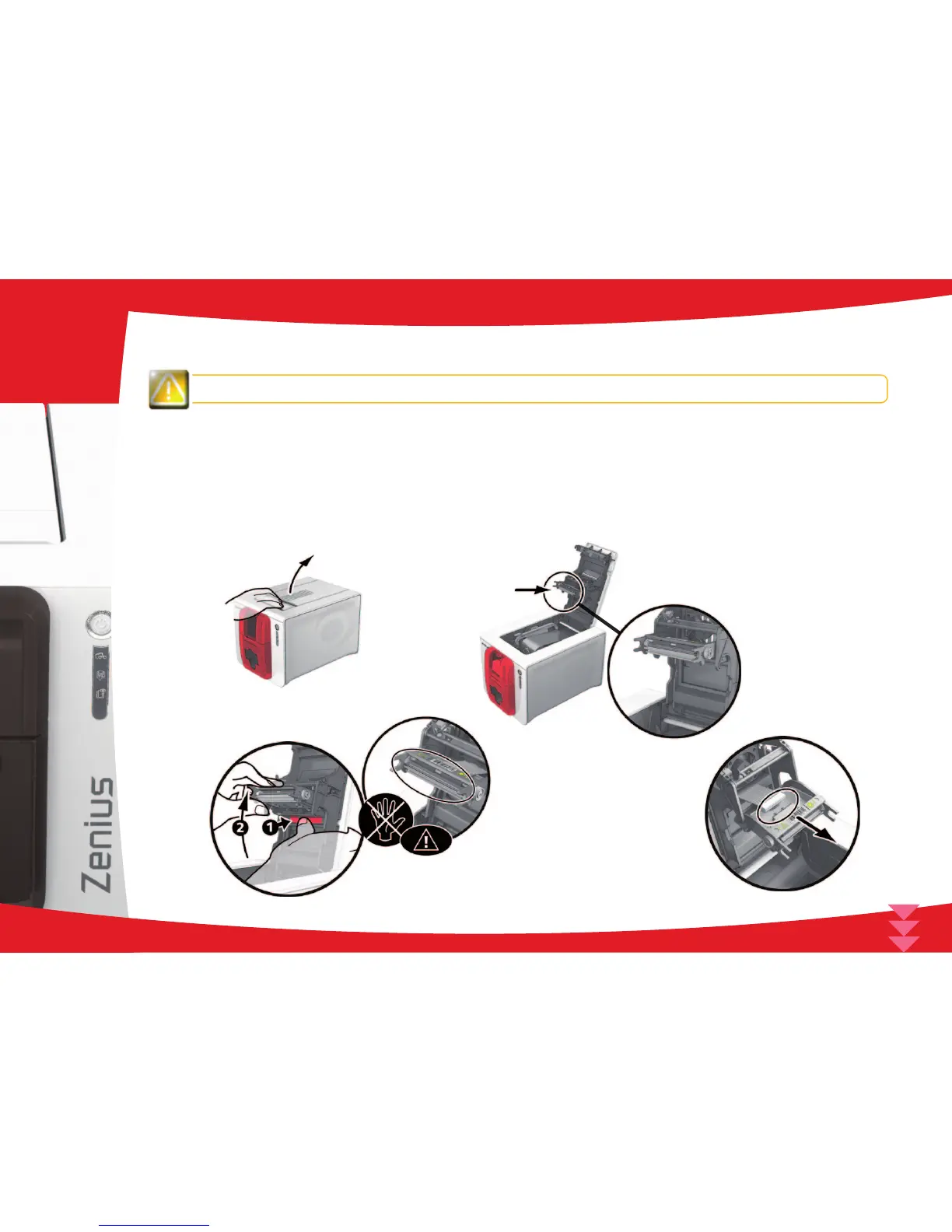

To exchange the print head, please proceed as follows:
Before changing the print head, please unplug the power cable.
ä
Step 1 - Removing the defective print head
Ê
Open the printer cover.
Ë
Locate the print head.
Ì
Press on the plastic part behind the head (pressure plate) and pull on the head with the other hand as shown in the
diagram in order to free the lugs from the holding fork, then remove the lugs from their slots.
Í
Tilt the head carefully downwards and disconnect the connector linked to the cable without using force on the
mechanism.
Ê
Ì
Í
Ë
41
4

Evolis Zenius Specifications

General

Card size	53.98 x 85.60 mm
Card types	PVC, PVC Composite
Card feeder	Yes
Duplex printing	No
Print technology	Dye-sublimation/Thermal transfer
Maximum resolution	300 x 300 DPI
Print speed (color)	150 card/h
Print speed (monochrome)	500 card/h
Display	-
Certification	CE, FCC, IEC, VCCI, CCC, KC, RoHS
Product color	Brown, White
Internal memory	16 MB
Built-in barcodes	Code 128 (A/B/C), Code 39, EAN13, Interleaved 2/5
Cable lock slot type	Kensington
USB version	1.1
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	84433210

Weight and Dimensions

Weight	3300 g
Dimensions (WxDxH)	310 x 205 x 195 mm
