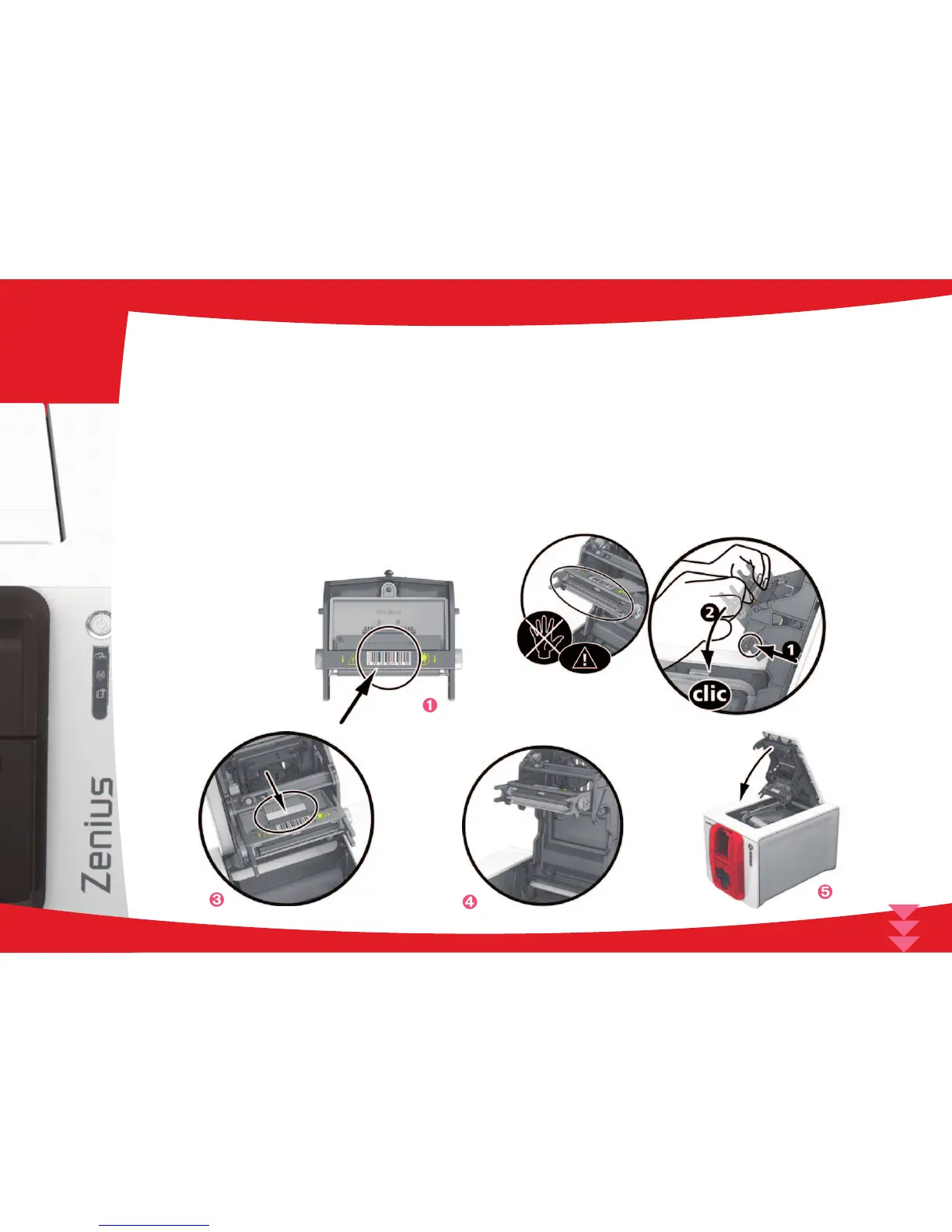

Step 2 - Installing the new print head
Ê
Note the code shown on the white label stuck on the print head. You will be asked for this code in Step 3.
Ë
Take the new head and insert it vertically (white connector upwards) raising it in the two guides so as to trap the lugs of
the fork in their slots
Ê
. Then lower it by pressing on the two forks
Ë
, a click will be heard.
Ì
Connect the cable into its socket, making sure it is the right way round. Do not use any force, as this part is relatively
fragile. Press down on each side of the connector to ensure a good connection is made.
Í
The head is back in position.
Î
Close the cover. The print head is now tted.
40
Ê
Í
Î
Ë
Ì
42
4

Evolis Zenius Specifications

General

Card size	53.98 x 85.60 mm
Card types	PVC, PVC Composite
Card feeder	Yes
Duplex printing	No
Print technology	Dye-sublimation/Thermal transfer
Maximum resolution	300 x 300 DPI
Print speed (color)	150 card/h
Print speed (monochrome)	500 card/h
Display	-
Certification	CE, FCC, IEC, VCCI, CCC, KC, RoHS
Product color	Brown, White
Internal memory	16 MB
Built-in barcodes	Code 128 (A/B/C), Code 39, EAN13, Interleaved 2/5
Cable lock slot type	Kensington
USB version	1.1
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	84433210

Weight and Dimensions

Weight	3300 g
Dimensions (WxDxH)	310 x 205 x 195 mm
