FITTING THE FASCIA
SLOTTED

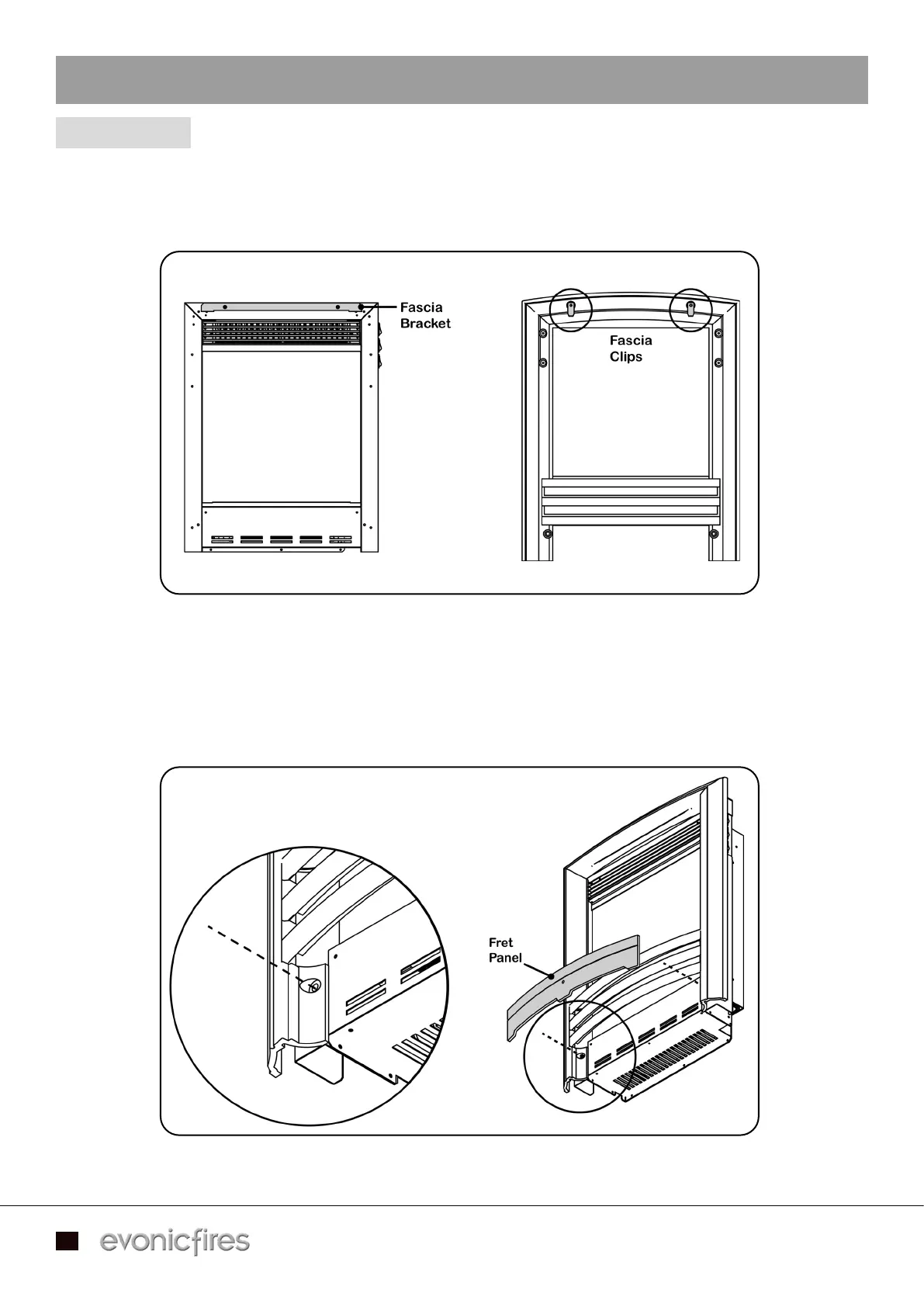

The Oberon and Strellar cast fascia is secured to the front of the appliance with two top mounted clips
and a mounting bracket. Line up the two clips with the top of the mounting bracket and slot them
down into the bracket.
The cast frame can now be screwed to the appliance using the 2x screws supplied. The
screw holes are located at the lower part of the frame. Once these are fitted, the fret
panel can be fitted in front of this.
