EVS XT-3 User Manual

3. Hardware Specifications
3.1. Mechanical Dimensions and Weights
3.1.1. Rack Mount 4U Main Frame
Weight
4U - 19 inches chassis with 6 HDD on RSAS board: 31 kg / 68.3 lb.
Dimensions

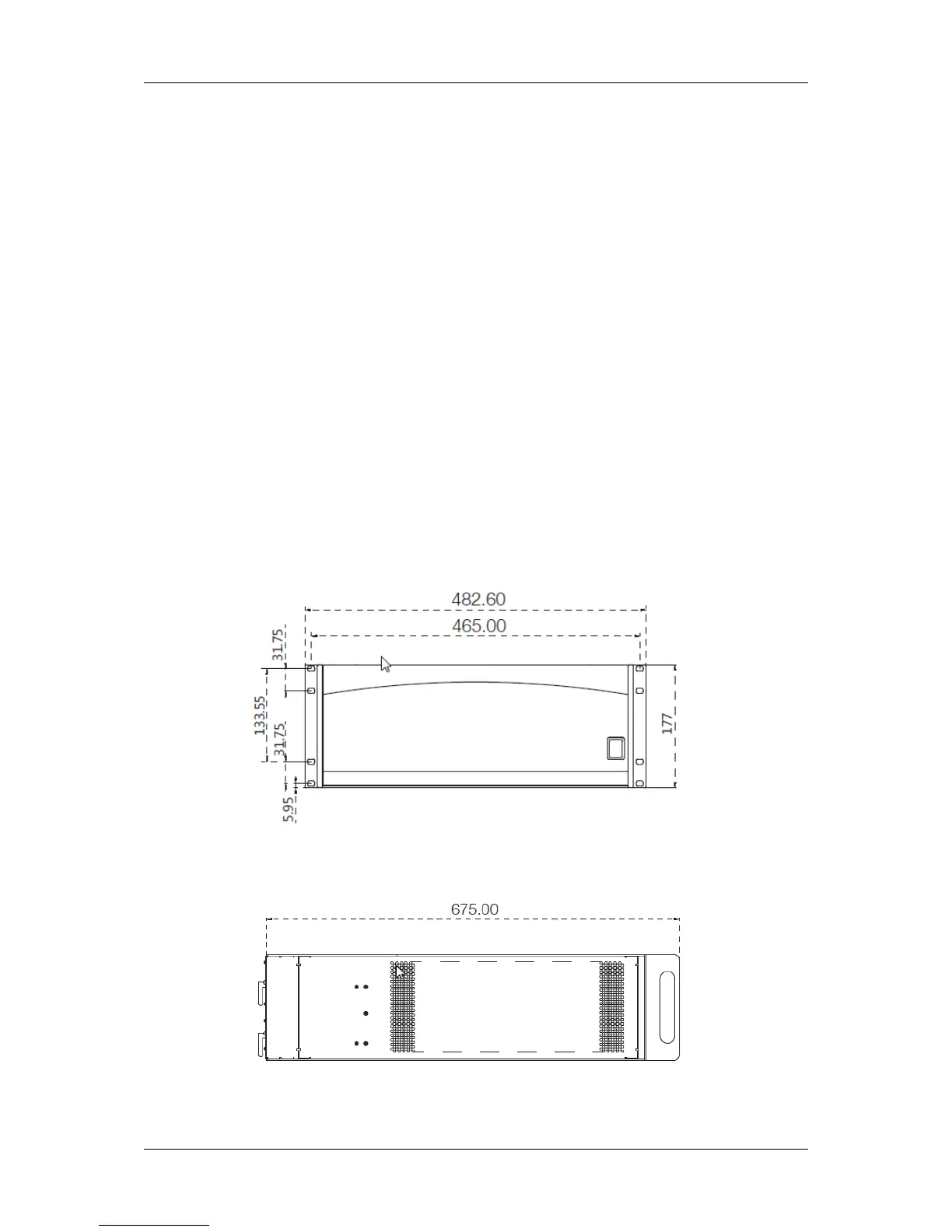

The following drawings provide the various dimensions, in mm, of the XT3 server with a
4U chassis.
Front View
Left View
6 3. Hardware Specifications
EVS Broadcast Equipment SA Issue 12.05.C- November 2014
