EVS XT-3 User Manual

5.6.2. Network Architectures
Introduction
To set up an XNet network, EVS servers may be connected directly in a closed loop
architecture. Using a dedicated hub, they may be connected in a star architecture as
illustrated in the following figure.
Note
Multicam 12.02 can work with XHub version 3.03 or above but 3G-SDTI is only
supported with version 4.00.

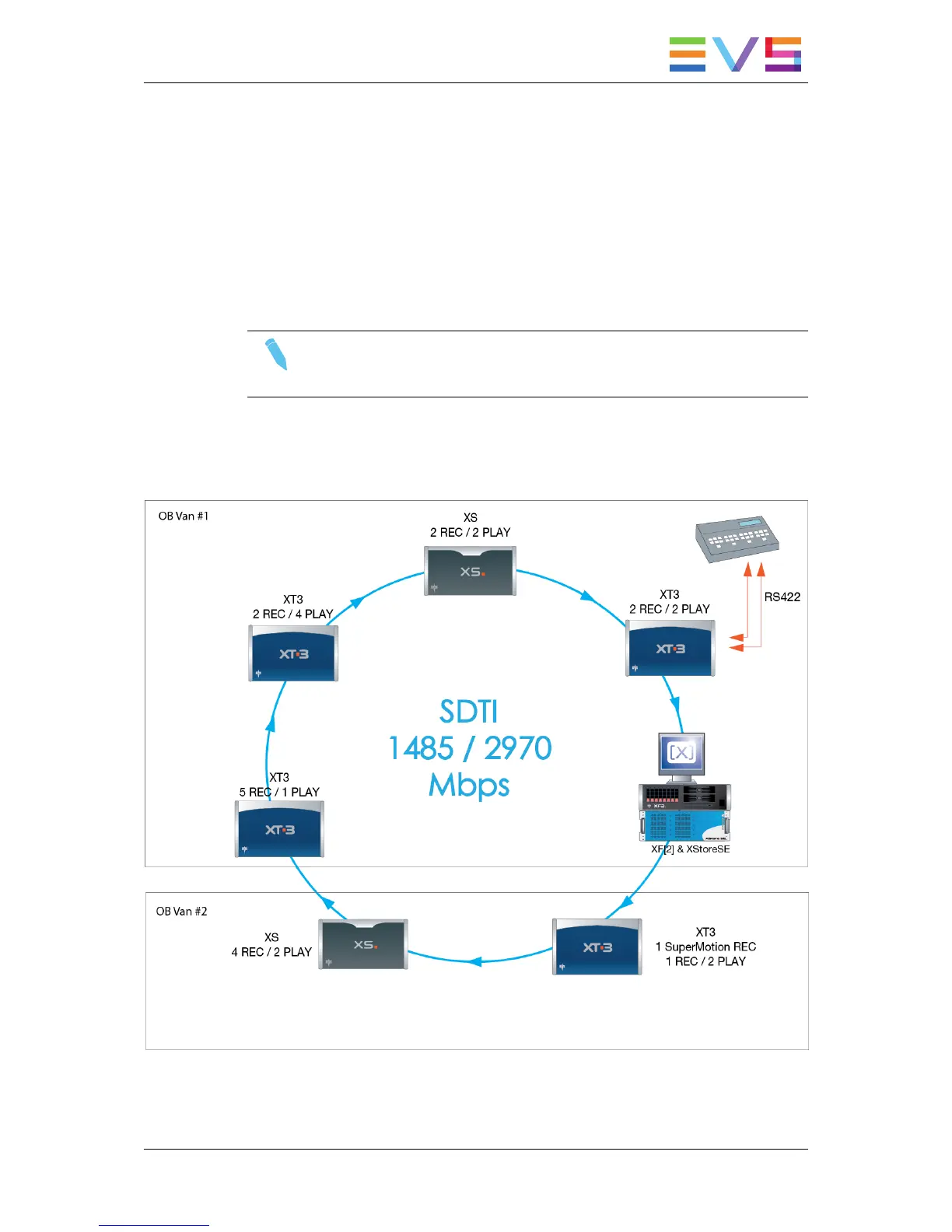

Connection Diagram Without EVS XHub SDTI Hub
Example of XNet2 network without hub:
HARDWARE TECHNICAL REFERENCE MANUAL XT3 Server 12.05
5. Hardware Installation and Cabling 69
