5.8.2. GP Out Connections

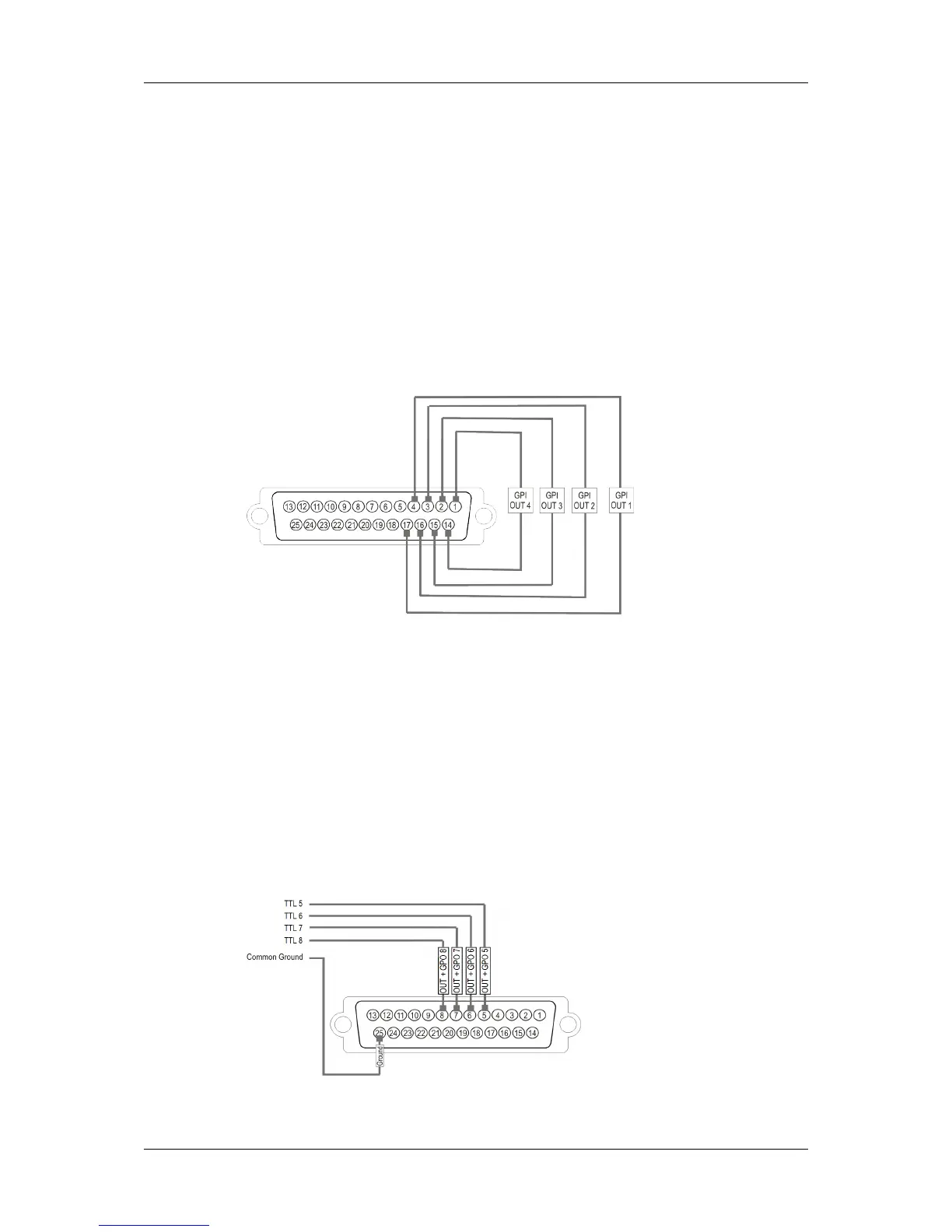

Relay Isolated Outputs (GP Out 1, 2, 3, 4)

Pin-Out

The user can define the functions, types and settings associated to the GPI outs in the

following applications:

• Setup menu of the Remote Panel

• IP Director settings (GPI and Auxiliary Track tab)

Specifications

• normally open contact (power off -> open)

• maximum 1A

• maximum 50 Volts

• typical life time: 100.000.000 switchings

TTL Outputs (GP Out 5, 6, 7, 8)

Pin-Out

82 5. Hardware Installation and Cabling

EVS Broadcast Equipment SA Issue 12.05.C- November 2014
