5.6.2. Network Architectures
Introduction
To set up an XNet network, EVS servers may be connected directly in a closed loop
architecture. Using a dedicated hub, they may be connected in a star architecture as
illustrated in the following figure.
NOTE
With an SDTI network of 3Gbps, XHub v4.00 only is supported.
Connection Diagram Without EVS XHub SDTI Hub

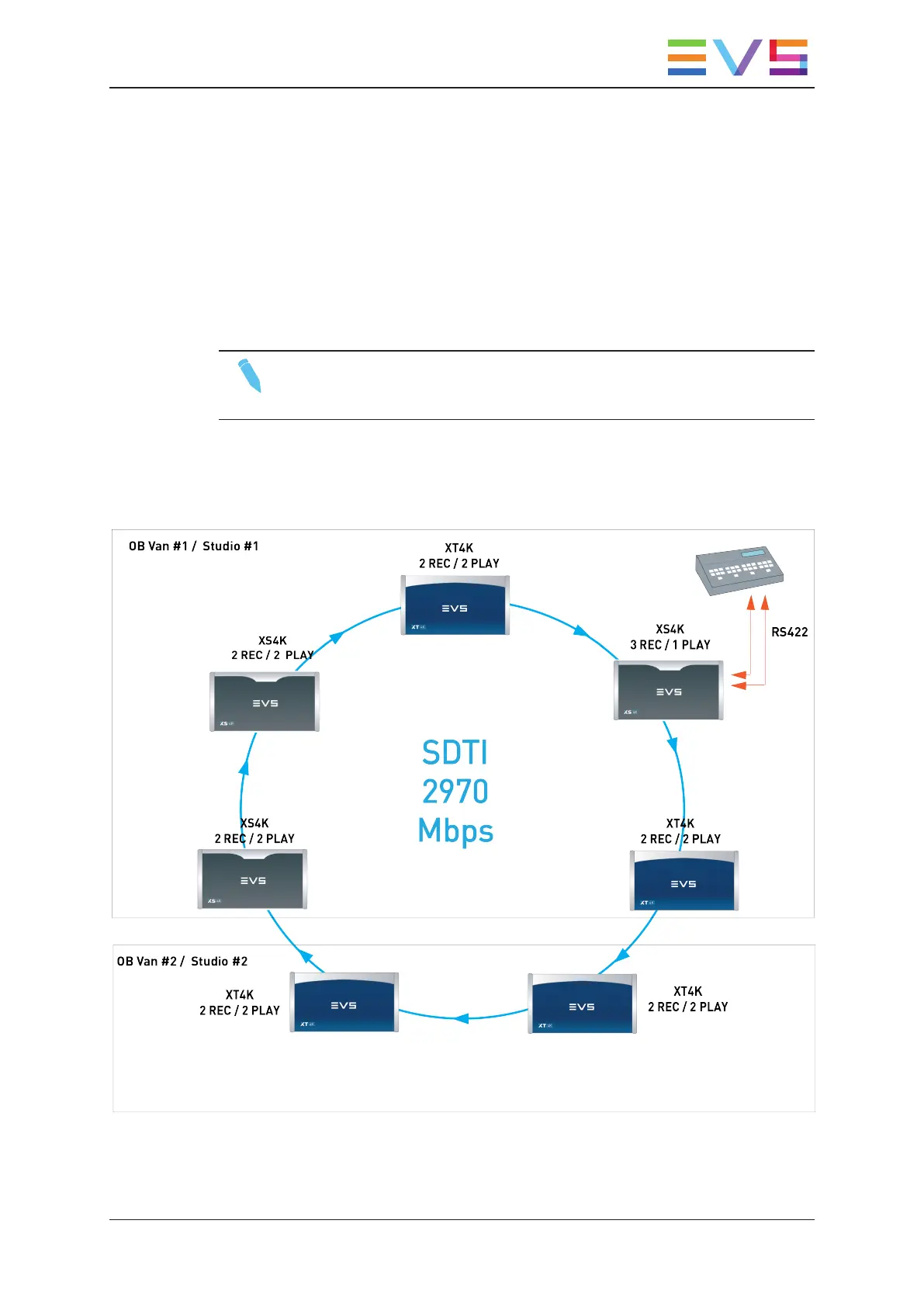

Example of XNet2 network without XHub:
