EVS XT4K - Video Connections

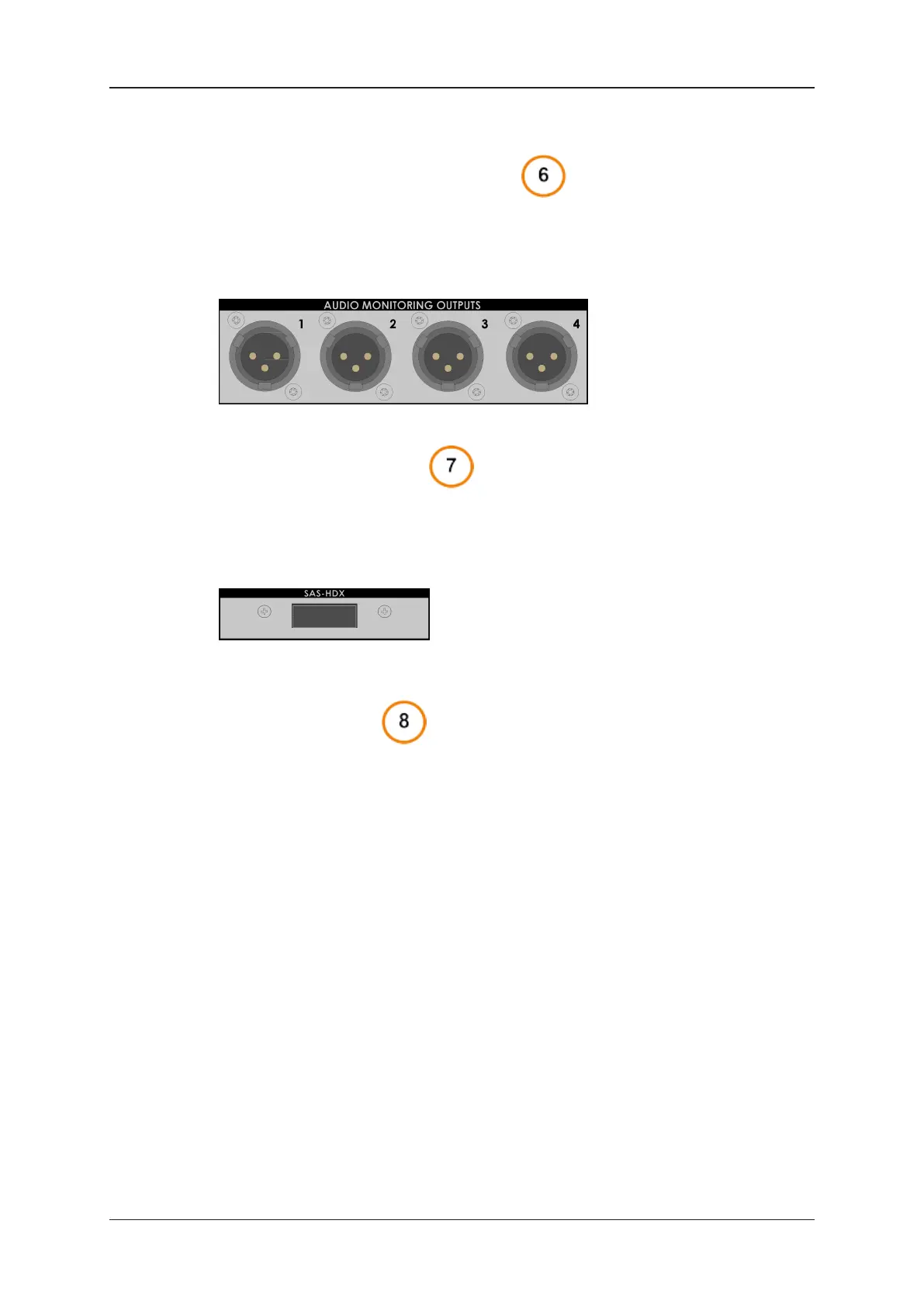

Audio Monitoring Connectors
This connector is located on the top right part of the rear panel, above the PSU.
The Audio Monitoring Outputs connectors are AES XLR connectors that allow audio
output connections for monitoring purposes.
SAS-HDX Connector
This connector is located on the top right part of the rear panel, above the PSU.
The SAS-HDX connector allows the connection to the external disk array SAS-HDX if it is
installed. By default, it is covered with a cap.
Power Supplies
The server power supply is made of two hot-swappable units. Both of these units are
connected to allow automatic power switching to the second power supply should the first
one fail.
5.3. Video Connections
You fill find full details on video connections in the Configuration manual, in the chapter
"Supported Configurations".
