EVS XT4K - Backup of Clips

5.7.2. Backup of Clips
Overview

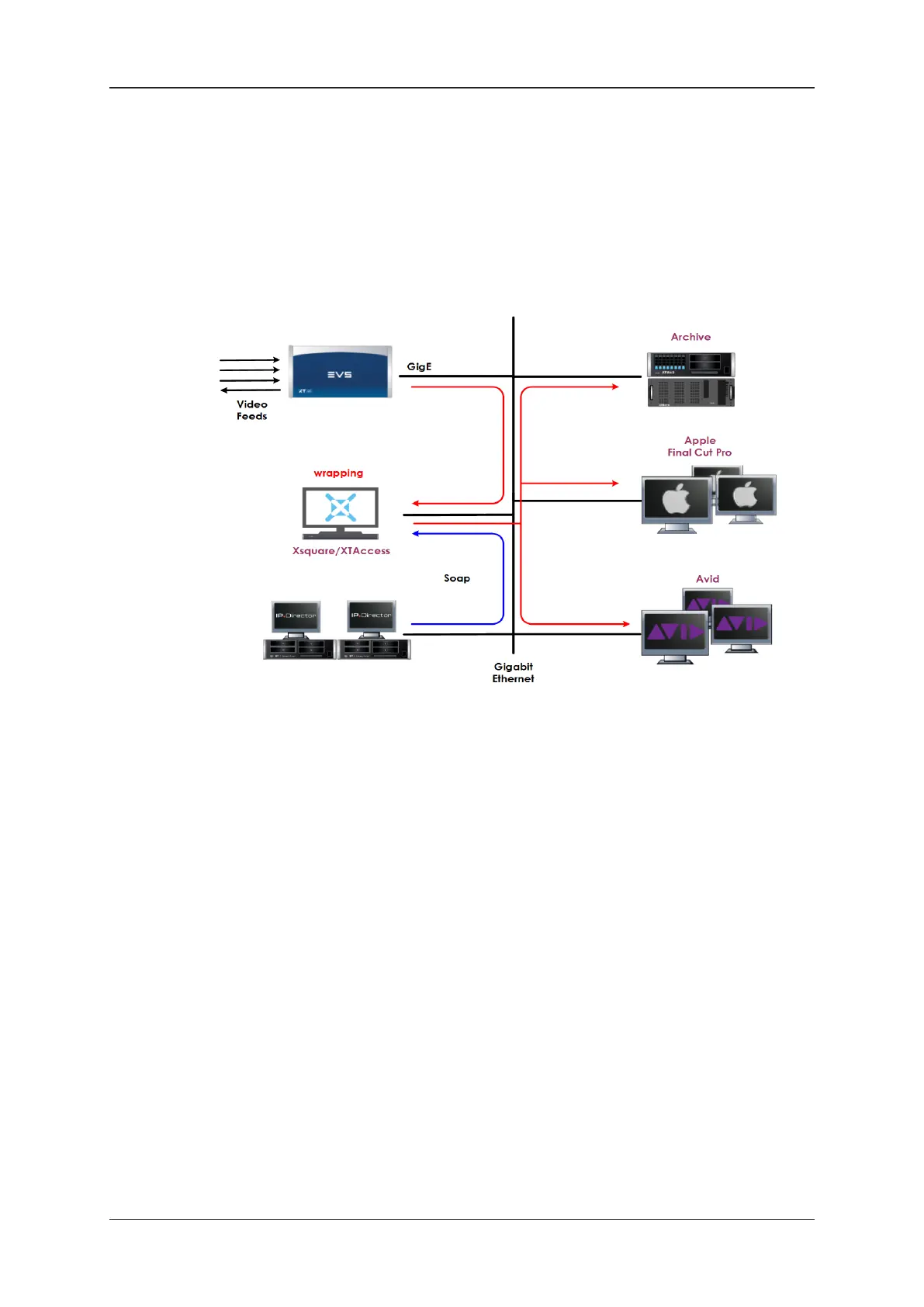

The following schema shows how the backup of clips is performed with the Gigabit
connection and Xsquare/XTAccess:
Workflow
1. An external system, for example IP Director, sends a soap request to Xsquare to
request the backup of a given clip created on XT4K server .
2. Xsquare processes the soap request:
◦ It gets the clip content that has to be backed up from the server.
◦ It generates a backup file of the clip in the format specified by the external system
(no transcoding feature, only native codec).
◦ It stores the backup file in the target folder specified by the external system.
48 5. Hardware Installation and Cabling
EVS Broadcast Equipment SA Issue 15.2.A- June 2017
