5.2. Rear Panel Description
5.2.1. Rear Panel Configurations
The XT4K server comes in the following rear panel:
• 6U rack with 4 codec modules.
The various parts of the rear panel are described in the following topics.
5.2.2. Rear Panel Layout
Rear Panel Areas

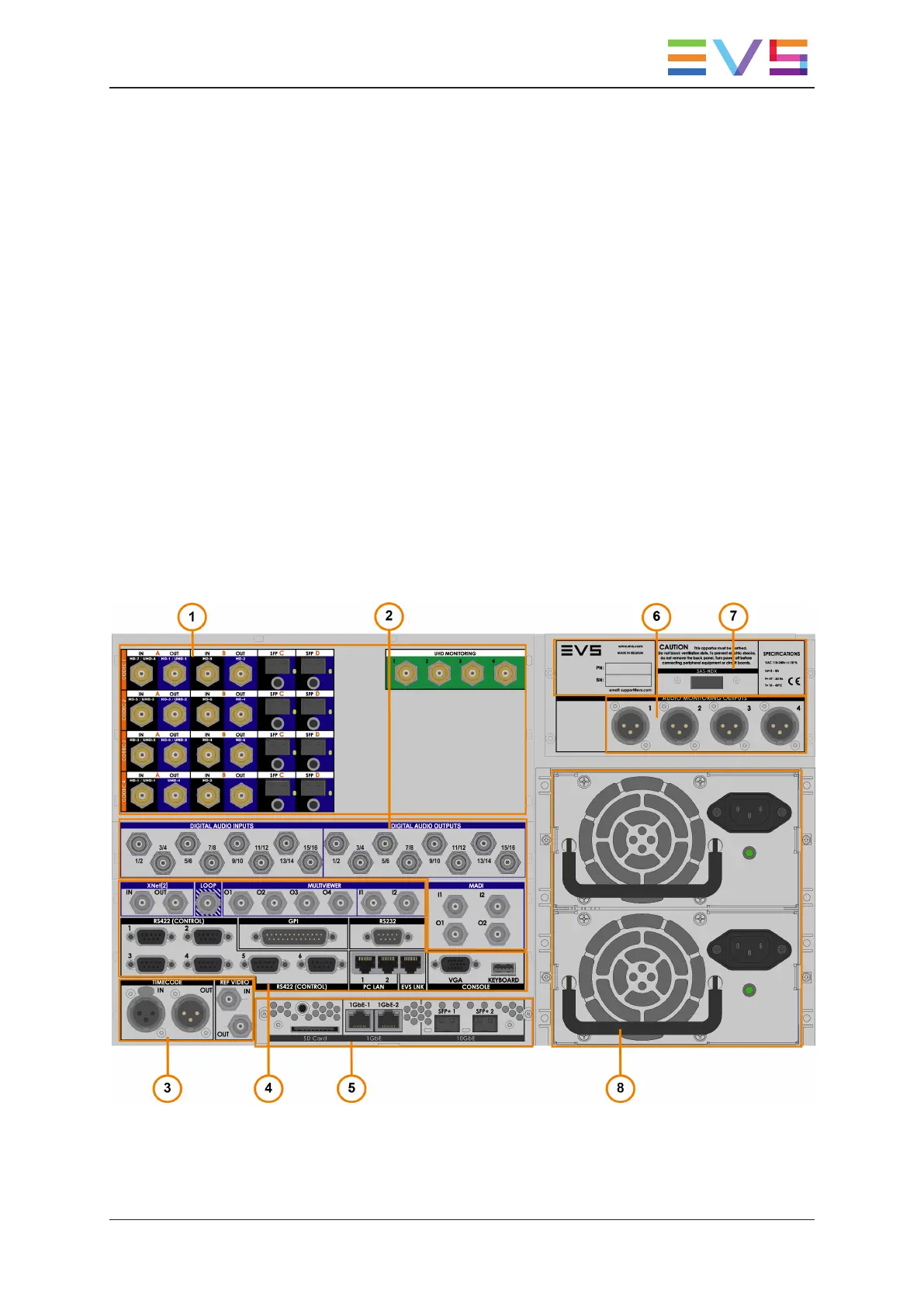

The following drawing represents an example of a rear panel available on XT4K server.
The various areas of the rear panel are highlighted in the drawing and their respective
variants are listed in the sections below along with a short description of the related
connectors.
