Video and Codecs
The codec modules allow connections for recording and playback of video material.
See section "V4X Video and Reference Boards" on page 59 for more details on each
connector specific usage according to the different configurations.

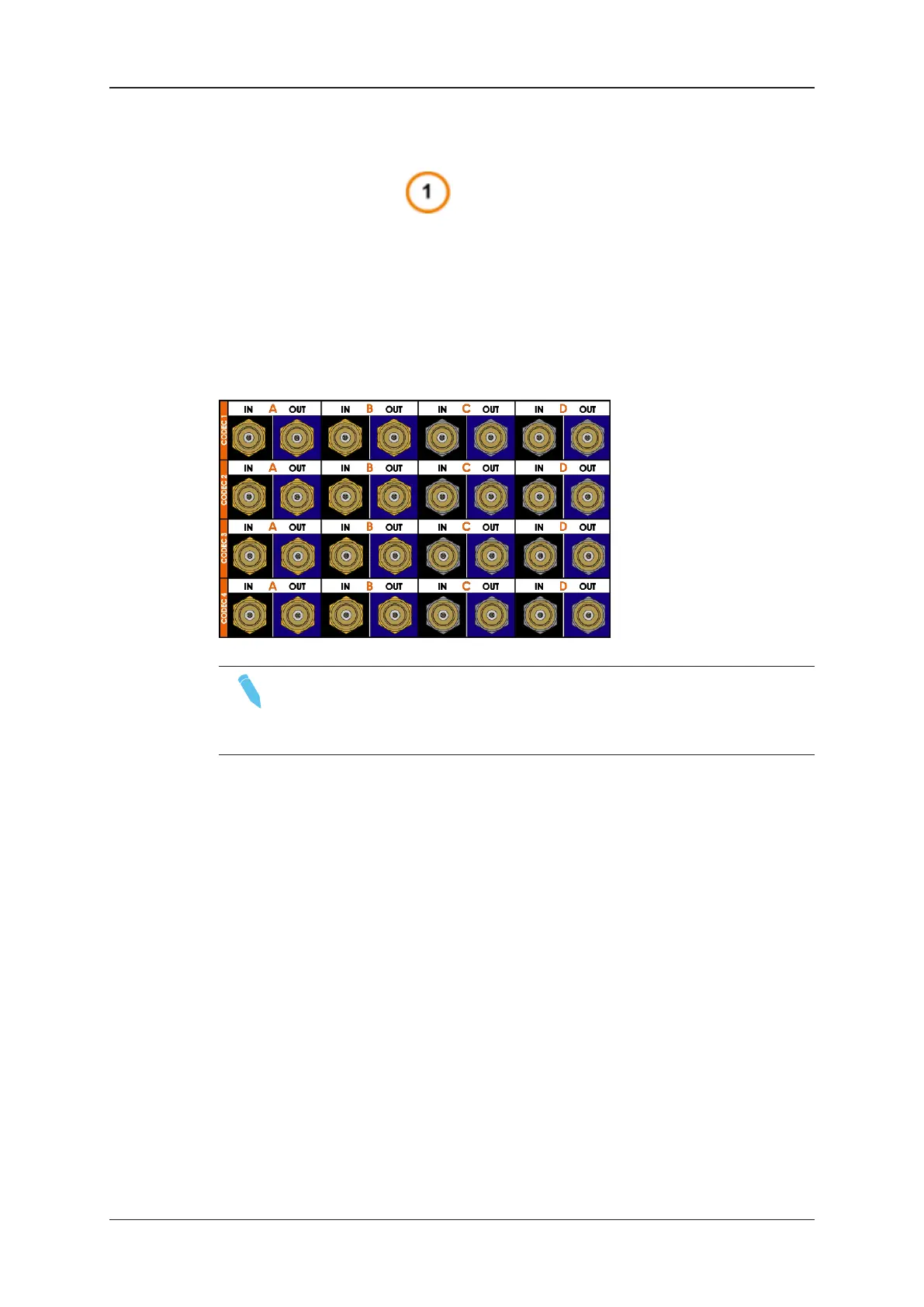

The video and codec connector layout available with the XT4K server includes 4 codec
modules with one of the following layout on each codec module:
• 8 BNC ports for 3G-SDI connectivity
The first 4 left ports, with a copper ring, are 12G-SDI capable.
NOTE
When using a 12G-SDI interface on a codec module, cable only the IN or OUT
A connector of the codec module.
