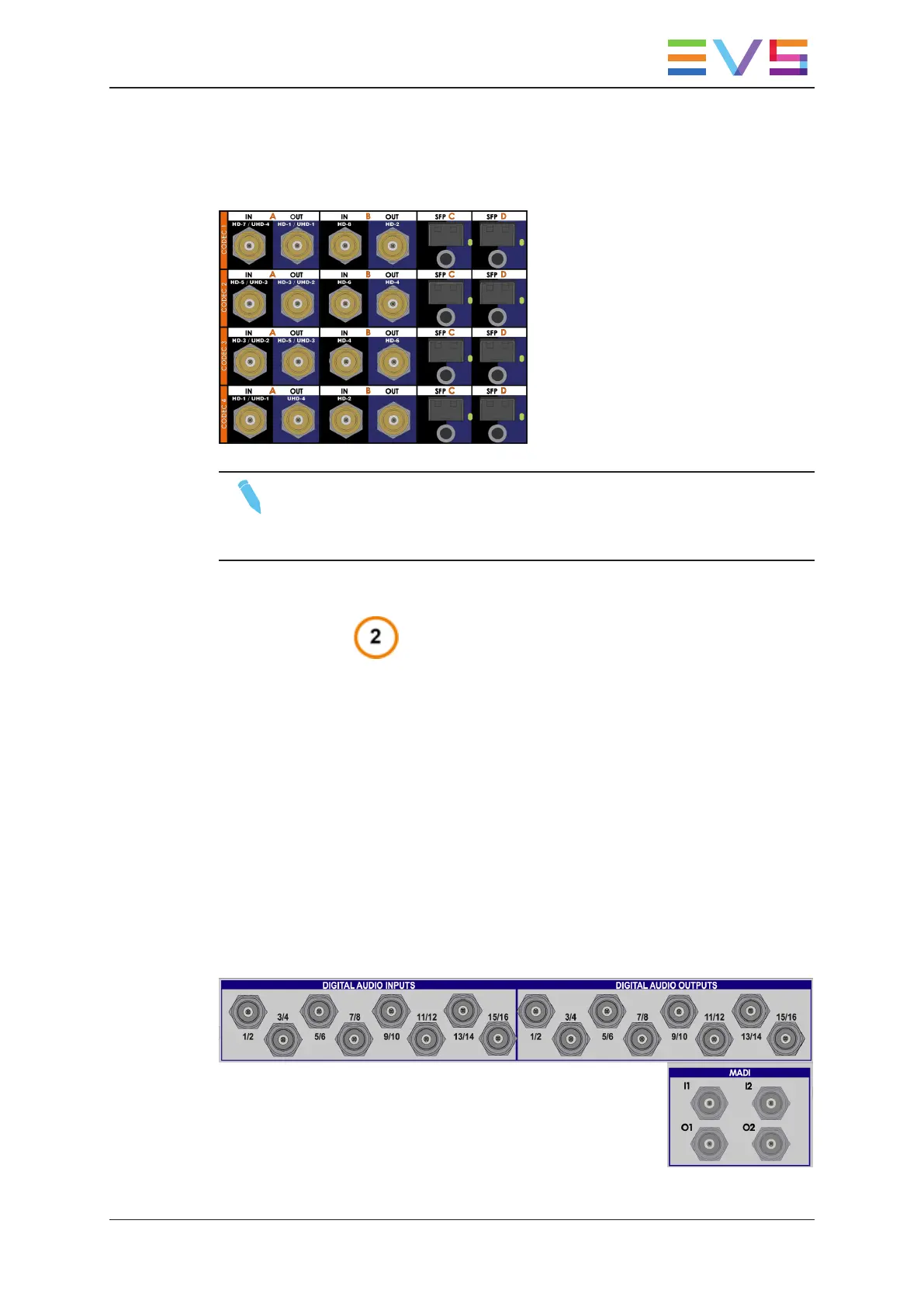

• 4 BNC ports for 3G-SDI connectivity
AND
• 2 SFP+ ports (10GbE) for IP connectivity
NOTE
When the SFP+ is used, the BNC connectors are no longer operational, and
vice versa. See the XT4K configuration manual for more information.
Digital Audio
This section shows the available associations of digital connectors.
The audio connector layouts described in this section are available according to your
configuration.
The MADI connectors are available by default on every XT4K server.
See section "Audio Specifications" on page 11 for more details on the available audio
configurations.
See section "Audio Connections" on page 39for more details on the DA-15 connectors
pinout depending on the configuration.
MADI BNC + Digital BNC
• MADI Digital audio: 4 BNC connectors (2 in and 2 out)
• Digital audio: 16 BNC connectors (8in and 8out)
