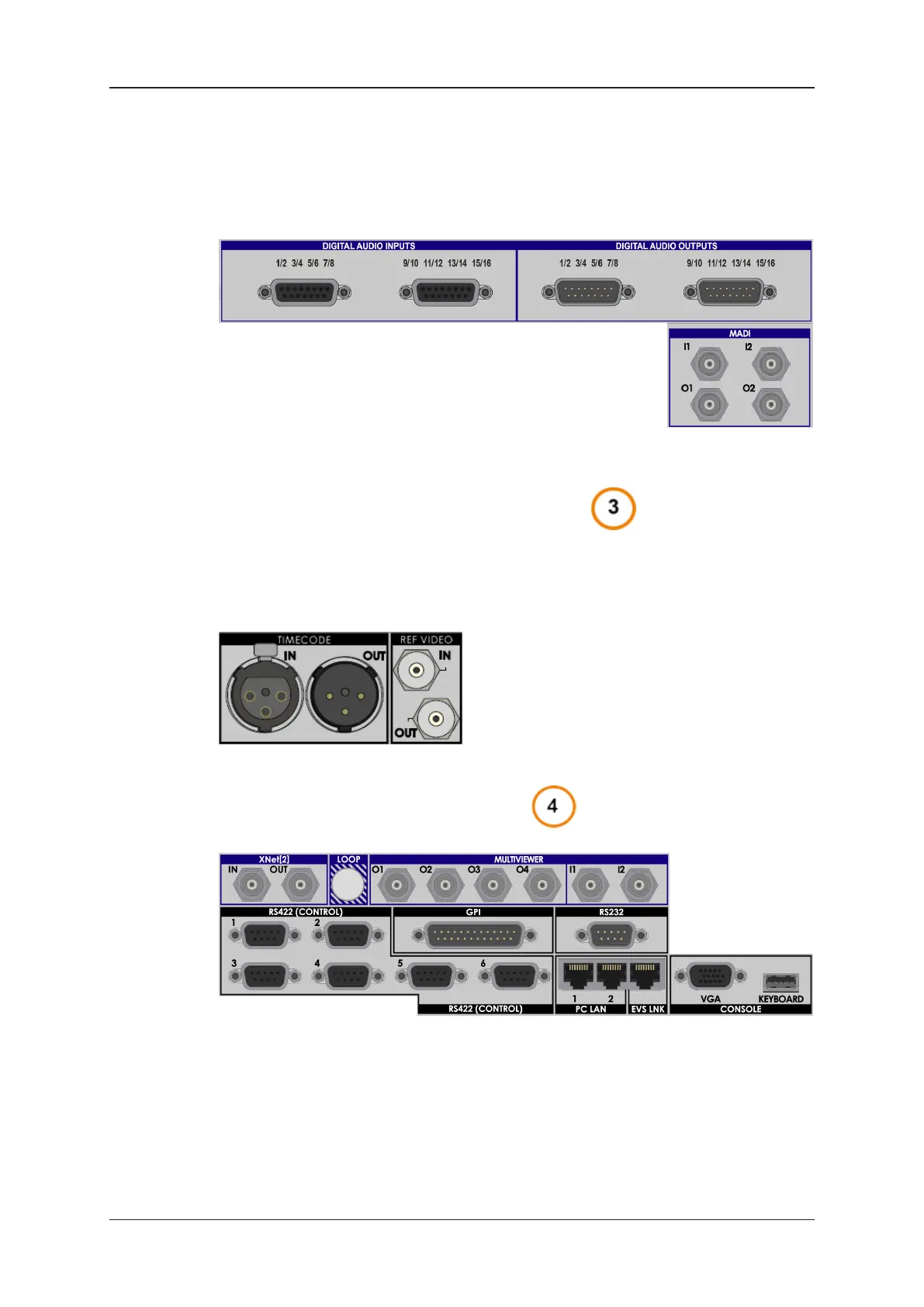

MADI BNC + Digital DA-15
• MADI audio: 4 BNC connectors (2 in and 2 out)
• Digital audio: 4 multi-pin DA-15 connectors (2in and 2out)
Timecode and Video Ref Connectors
The Timecode connectors allow the server to receive the LTC timecode reference signal
and send the LTC timecode that corresponds to PGM1.
The Ref Video connectors allow the server to receive or send back the analog genlock
reference signal.
Controls and Communications
This rear panel part, located below the audio connectors, presents connectors that allow
the EVS server to communicate with other devices. The connectors are described from
top left to bottom right:
The XNet2 connectors allow the interconnection of EVS servers in an XNet2 network.
The IN connector of a server is connected to the OUT connector of another server, and so
on to form a closed loop network.
The Multiviewer connectors provides:
