• 4 OUT connectors to connect monitors directly to the server, and display PGM and
REC channels on the monitors.
• 2 IN connectors to connect an external source and display it as an individual channel
on the monitors.
The monitor display is configured in the Multicam Configuration window, Monitoring tab,
Multiviewer page. See the Multicam Configuration manual for a description of the
configuration parameters.
The RS422 ports allow the server to be remotely controlled through remote panels or
third-party control devices. When a remote panel is used, it should be connected on the
first RS422 port.
The GPI connector allows GPI (General Purpose Interface) devices to send or receive
electric pulses that will trigger commands on the server or to be connected with third-party
devices.
The RS232 connector allows a tablet to be connected to the server.
Two PC LAN connectors allow connection of the PC LAN interface of the EVSserver to
an Ethernet network. Refer to the XT4K Configuration manual for more information on PC
LAN redundancy.
The EVS Link connector is reserved for internal use.
The Console connectors allow a monitor and a keyboard to be connected to the server.

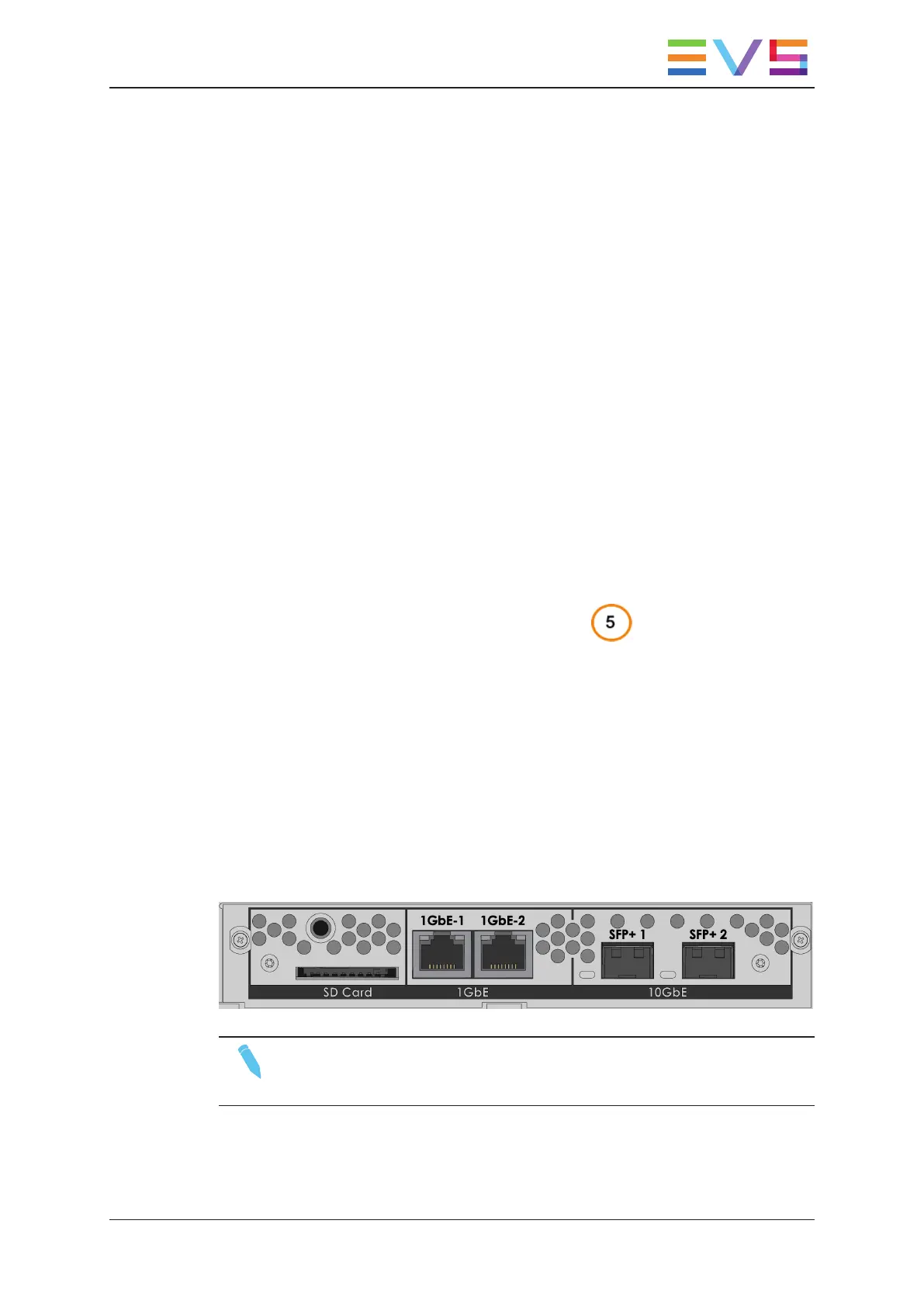

Gigabit Ethernet Connectors Module
The Gigabit Ethernet Connector module of the GbE board is located at the bottom center
of the rear panel.
This area can have one of the following layouts:
• It hosts the full Gigabit connector module.
The Gigabit Ethernet connector module allows the interconnection of servers, other
EVS, and/or third-party systems into a Gigabit Ethernet network via:
◦ 2 SFP+ connectors, each offering a global bandwidth of 10 GbE
◦ 2 RJ45 connectors, each offering a global bandwidth of 1 GbE
◦ SD card slot
NOTE
The 10 GbE and 1GbE connectors cannot be used at the same time.
