Machine description – quick overview
Front view
16
099-005401-EW501
17.06.2014
4 Machine description – quick overview
4.1 Front view

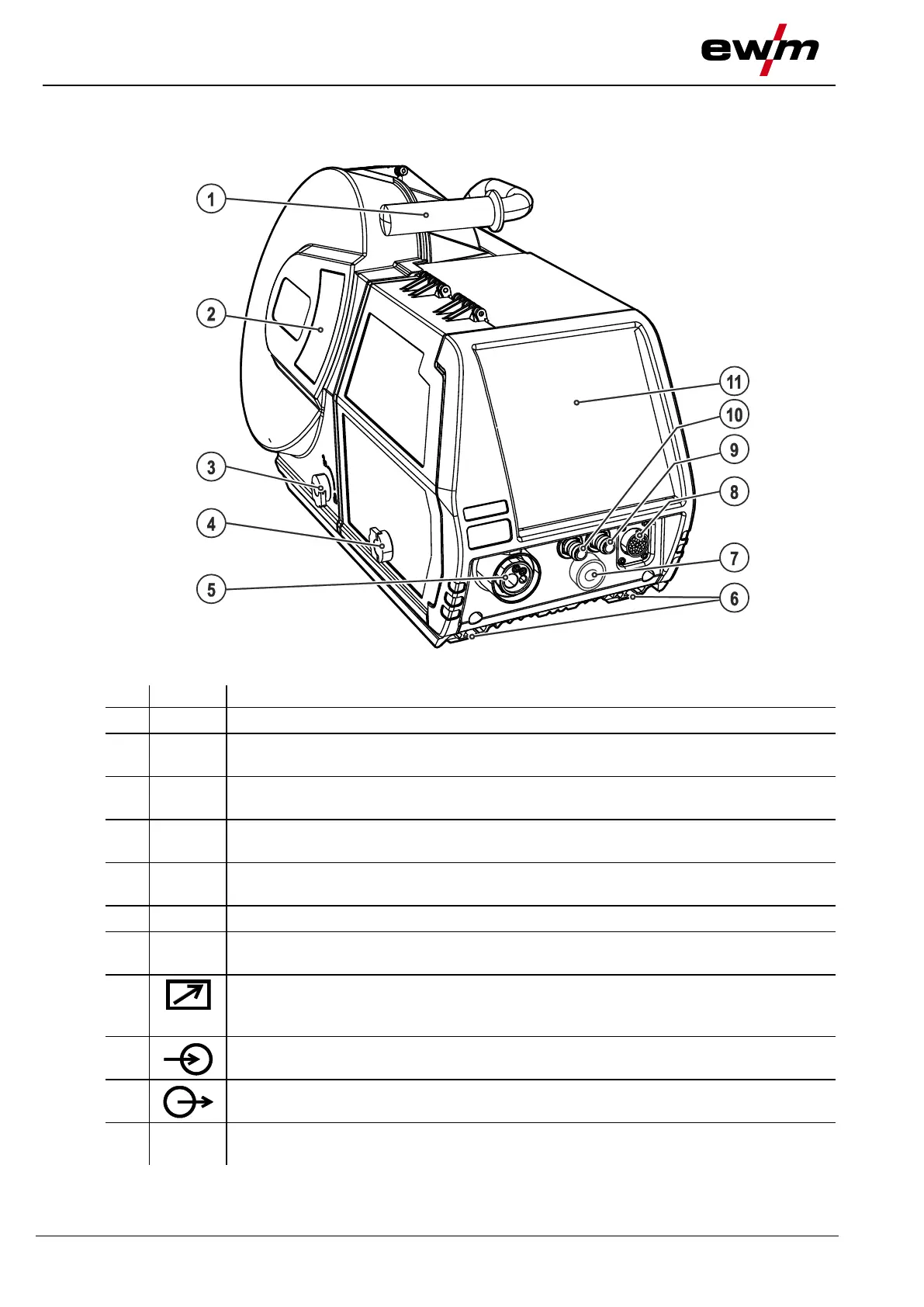

Figure 4-1
Item
Symbol
Description 0
1
Carrying handle
2
Wire spool inspection window
Check wire supply
3
Rotary closure
Locking of the protective cap, wire spool
4
Rotary closure
Locking of the protective cap, wire feed mechanism
5
Welding torch connection (Euro or Dinse torch connector)
Welding current, shielding gas and torch trigger integrated
6
Machine feet
7
Welding current connection socket (ex works option)
Welding current potential of the torch connector for MMA welding or gouging
8
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
9
Quick connect coupling (red)
coolant return
10
Quick connect coupling (blue)
coolant supply
11
Machine control
See Machine control – operating elements chapter
