EWM drive 4 Basic - Spool Brake Setting

Design and function
MIG/MAG welding
099-005401-EW501
17.06.2014
35

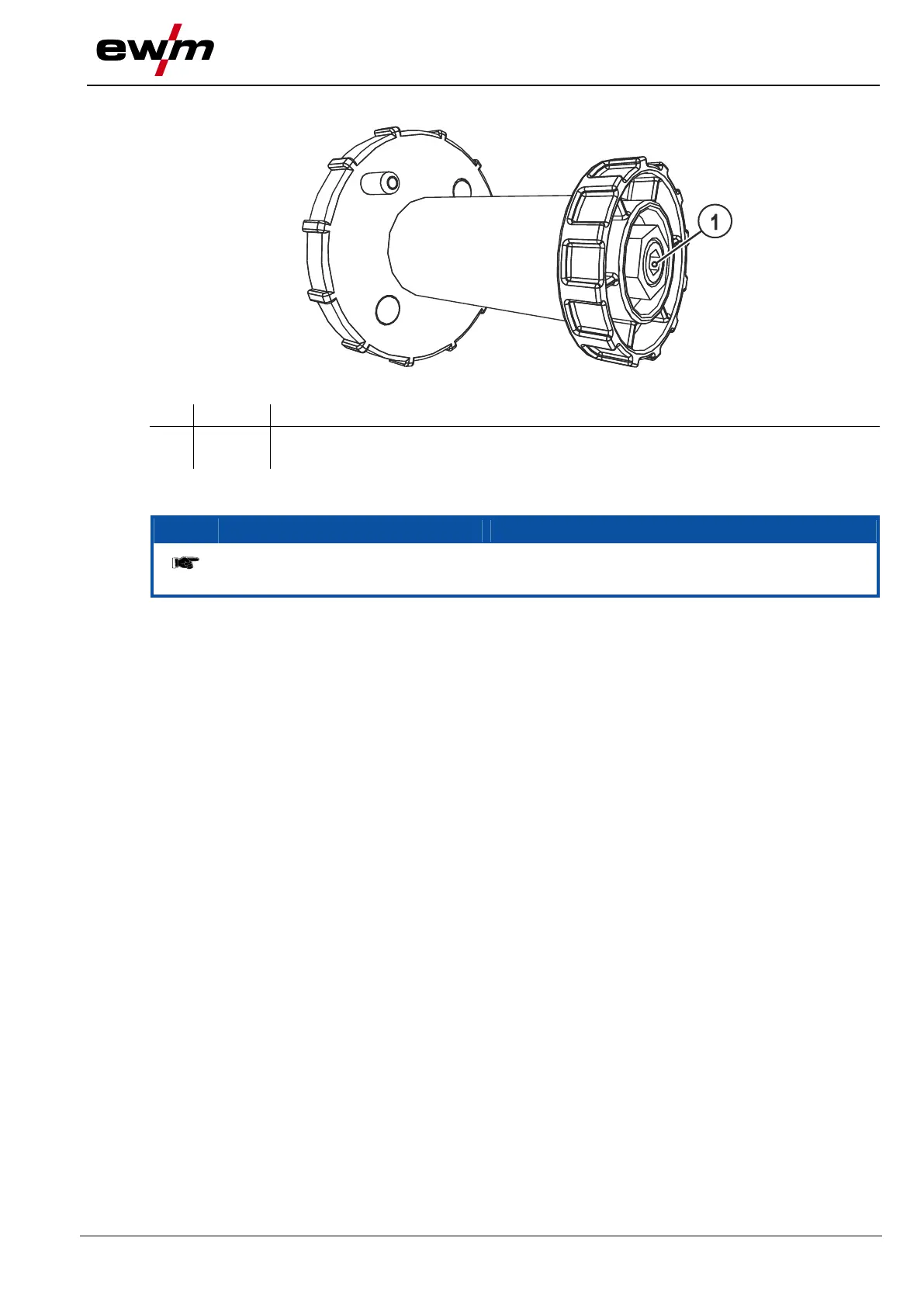

5.7.2.5 Spool brake setting
Figure 5-11
Item
Symbol
Description 0
1
Allen screw
Securing the wire spool retainer and adjustment of the spool brake
• Tighten the Allen screw (8 mm) in the clockwise direction to increase the braking effect.
NOTE
Tighten the spool brake until the wire spool no longer turns when the wire feed motor stops but
without it jamming during operation!
