EWM drive 4 Basic - Rear View

Machine description – quick overview
Rear view
099-005401-EW501
17.06.2014
17

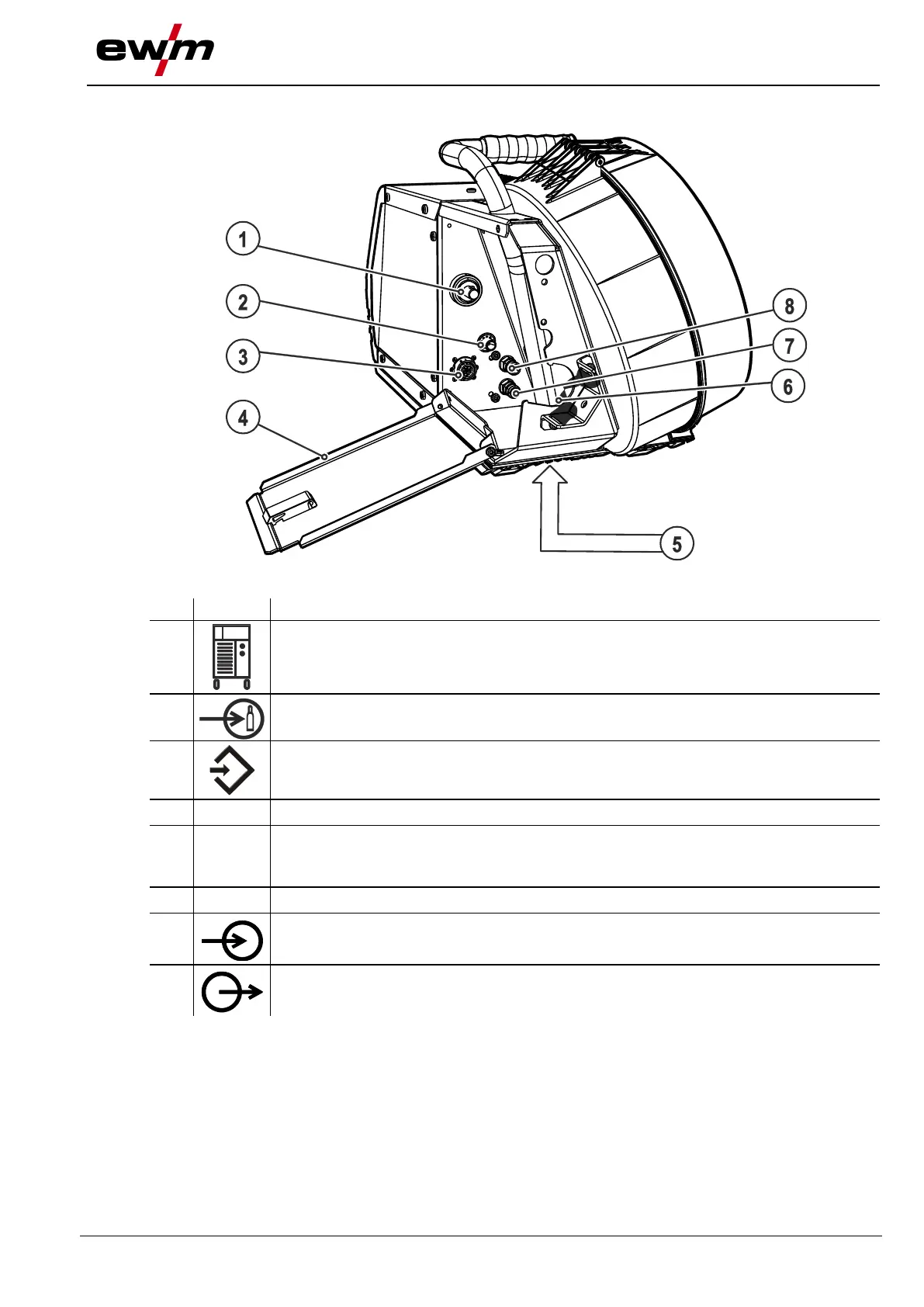

4.2 Rear view
Figure 4-2
Item
Symbol
Description 0
1
Power source welding current connector plug
Welding current connection between power source and wire feeder
2
G¼" connecting nipple, shielding gas connection
3
19-pole connection socket (analogue)
Wire feed unit control lead connection
4
Protective cap
5
Turning mandrel support
The wire feeder is placed onto the power source turning mandrel using this support to
enable horizontal pivoting of the machine.
6
Intermediate hose package strain relief
7
Quick connect coupling (blue)
coolant supply
8
Quick connect coupling (red)
coolant return
