4.4 Machine control – Operating elements

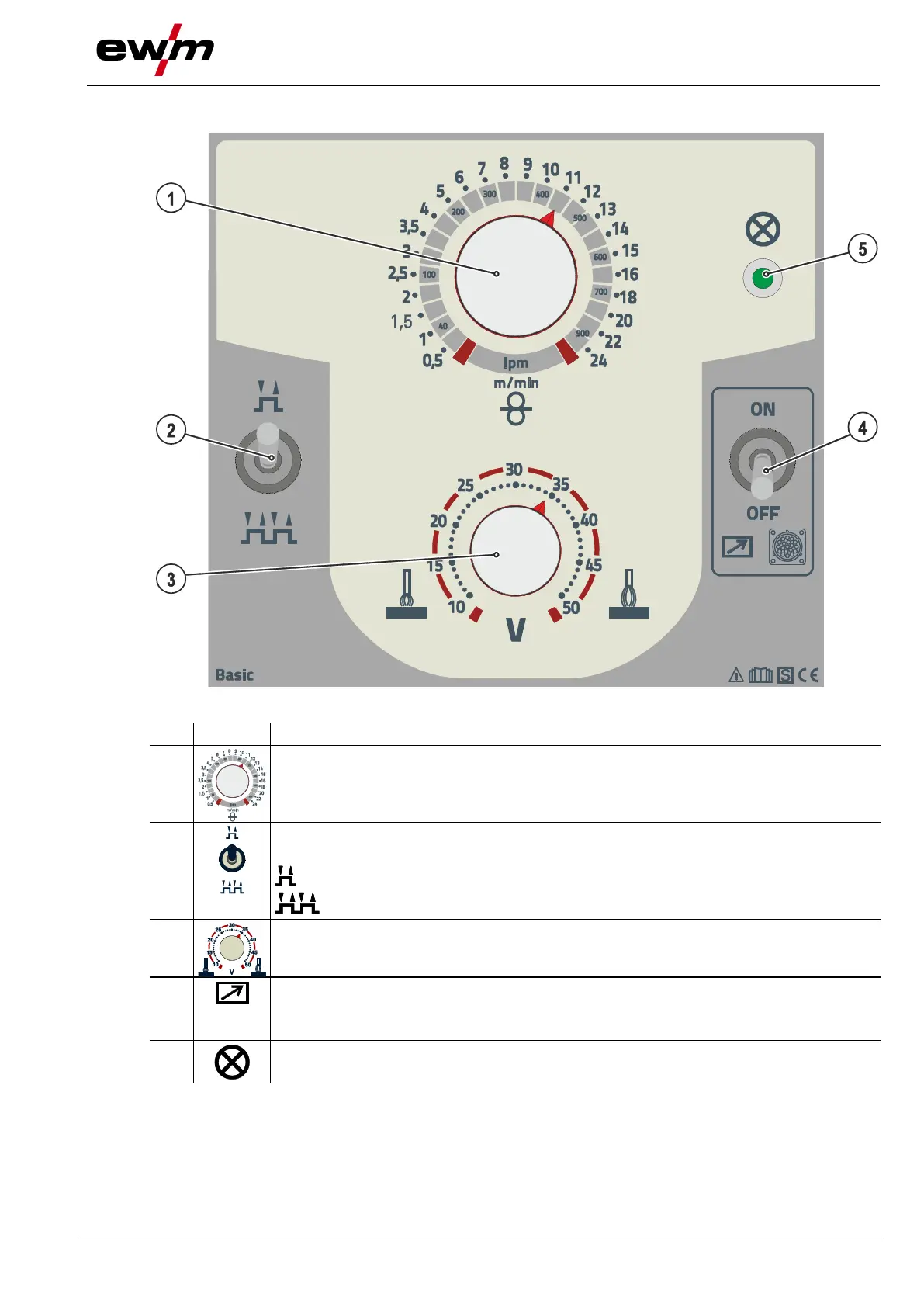

Figure 4-4
Item
Symbol
Description 0
1
Rotary dial, wire speed
Wire speed setting
2
Operating mode changeover switch
Switching between non-latched and latched operating modes
Non-latched operation
Latched operation
3
Rotary dial, welding voltage
Adjustment of the welding voltage from min. to max.
4
Changeover switch, remote control on/off
ON Set the welding performance via the remote control
OFF Set the welding performance via the machine control
5
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
