Design and function
MMA welding
099-005401-EW501
17.06.2014
5.8 MMA welding
Risk of being crushed or burnt.
When replacing spent or new stick electrodes
• Switch off machine at the main switch
• Wear appropriate safety gloves
• Use insulated tongs to remove spent stick electrodes or to move welded workpieces and
• Always put the electrode holder down on an insulated surface.
Please note the relevant documentation of the accessory components.
5.8.1 Connecting the electrode holder and workpiece lead

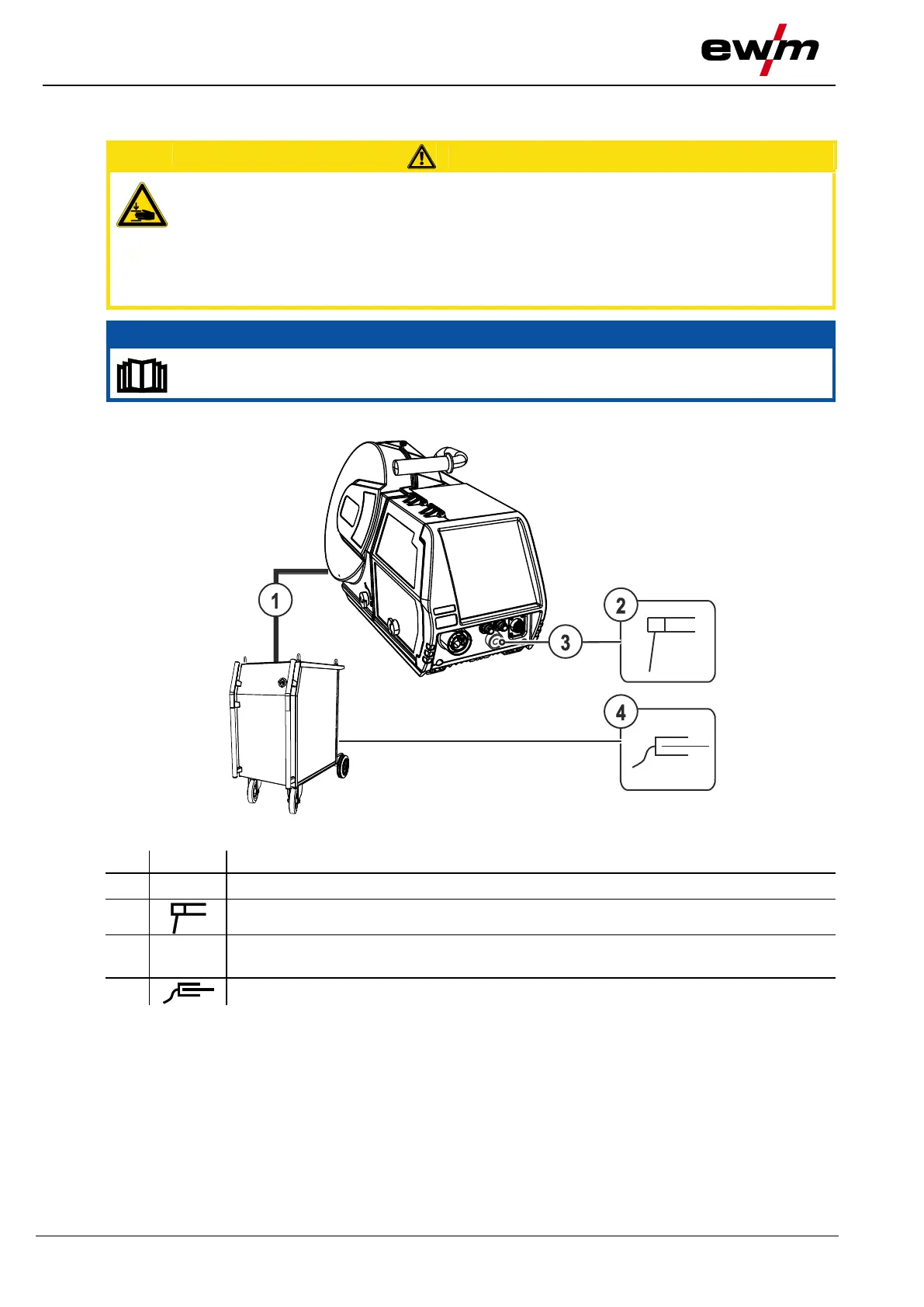

Figure 5-13
Intermediate hose package
Welding current connection socket (ex works option)
Welding current potential of the torch connector for MMA welding or gouging
• Insert the electrode holder plug into the welding current connection socket (wire feeder) and lock in
place by turning to the right.
• Insert the workpiece lead plug into the "-" welding current connection socket (welding machine) and
lock in place by turning to the right.
