EWM drive 4 Basic - Air Arc Gouging; Gouging Torch and Workpiece Line Connection

Design and function
Air arc gouging
40
099-005401-EW501
17.06.2014
5.9 Air arc gouging
NOTE
Please note the relevant documentation of the accessory components.
Special electrode holders and carbon electrodes are required for air arc gouging.
5.9.1 Gouging torch and workpiece line connection

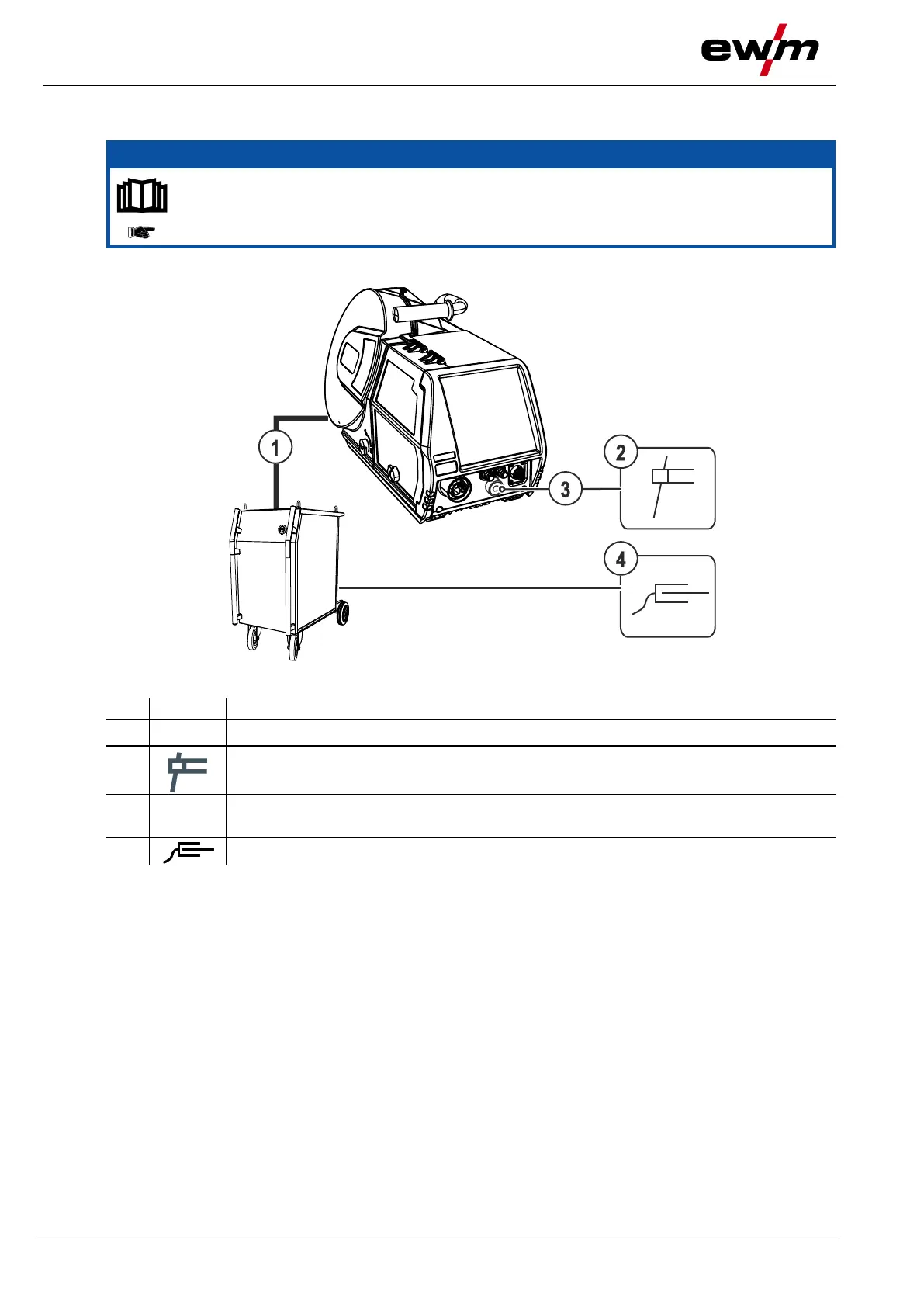

Figure 5-17
Item
Symbol
Description 0
1
Intermediate hose package
2
Gouging torch
3
Welding current connection socket (ex works option)
Welding current potential of the torch connector for MMA welding or gouging
4
Workpiece
• Insert the gouging torch plug into the welding current connection socket (wire feeder) and lock in place
by turning to the right.
• Insert the workpiece lead plug into the "-" welding current connection socket (welding machine) and
lock in place by turning to the right.
