Design and function
Notes on the installation of welding current leads
24
099-005401-EW501
17.06.2014
NOTE

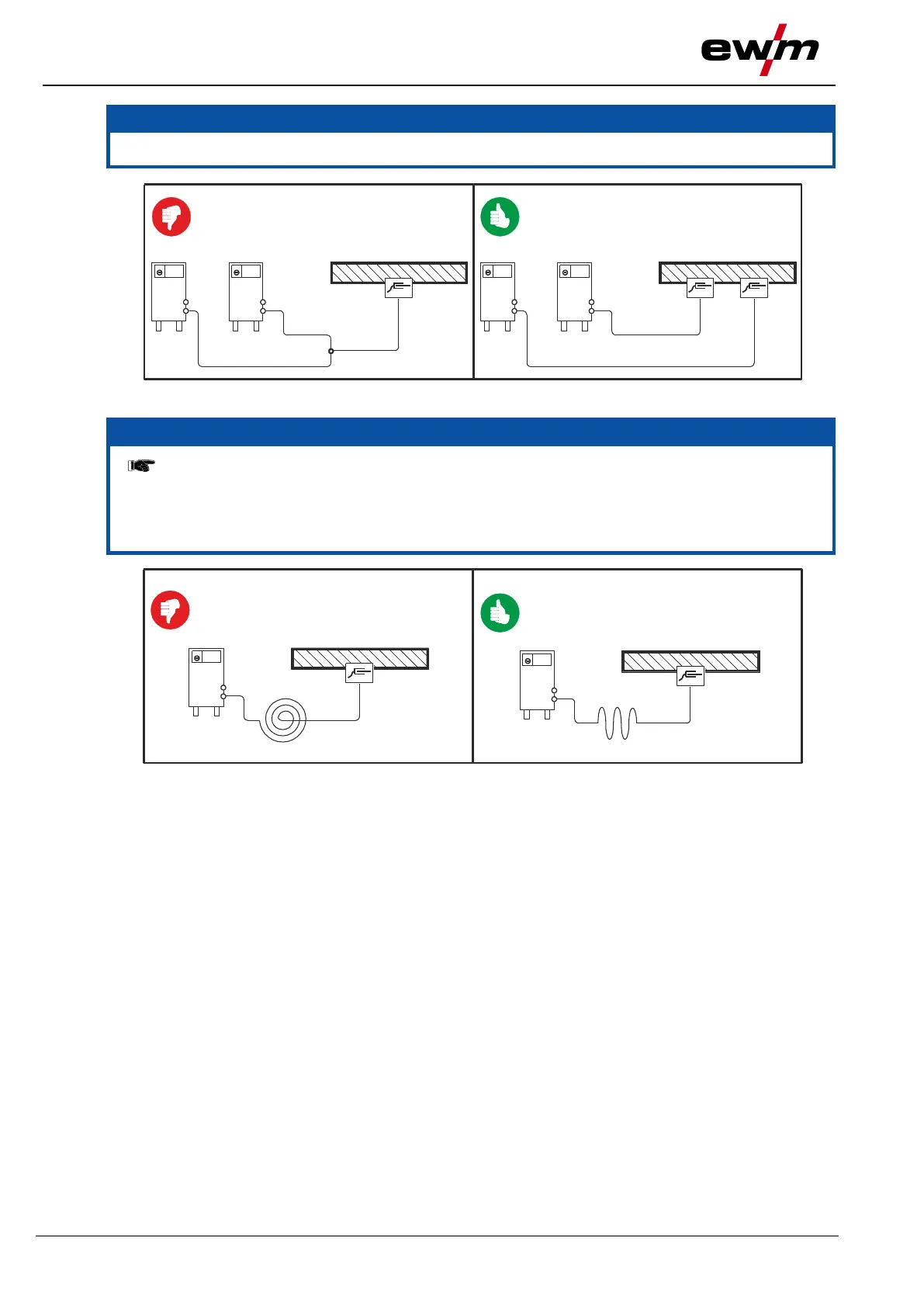

Use an individual welding lead to the workpiece for each welding machine!
Figure 5-2
NOTE
Fully unroll welding current leads, torch hose packages and intermediate hose
packages. Avoid loops!
Always keep leads as short as possible!
Lay any excess cable lengths in meanders.
Figure 5-3
