USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg

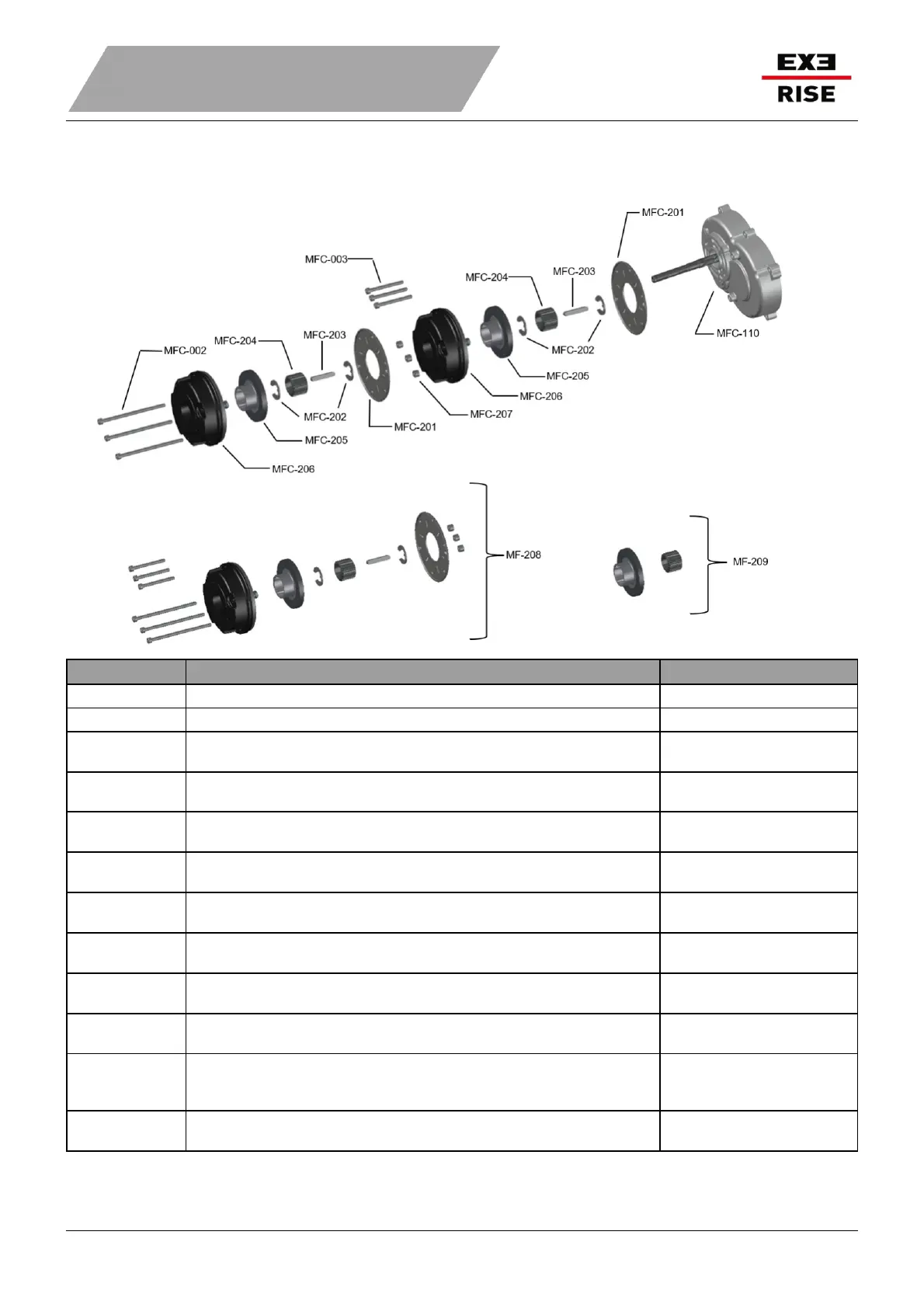

MFC - Brakes Exploded DrawingMFC - Brakes Exploded Drawing
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I ITA CODEA4I ITA CODE
MFC-110 Gear Box alum. housing + n.6 screws UNI 5931 6x35mm TCEI 8.8 ZB Not available
MFC-201 Steel brake disk Øe 84mm - Øi 31.9mm – S=1.5mm (n.1 per brake) LT XRS-0137
MFC-202
KIT n.4 Seeger-Ret. Shaft Locking Washer Set Ø10mm
(n.2 x brake)
LT XRS-0159
MFC-203 Metal key 4x4x20mm (n.1 x brake)
Not available separately
(MFC-208)
MFC-204 Hub gear (n.1 x brake)
Not available separately
(MFC-208 MFC-209)
MFC-205 Rotor brake (n.1 x brake)
Not available separately
(MFC-208 MFC-209)
MFC-206 KIT Stator brake L06 103VDC (n.1 x brake)
Not available separately
(MFC-208)
MFC-207 (Only double brake) Spacers (n.3 x pair of brake)
Not available separately
(MFC-208)
MFC-002
(Only double brake) n.3 Screws UNI 5931 4x80mm TCEI 8.8 ZB (n.1 kit
x pair of brake)
LT XRS-0153
MFC-003
(Only single brake) n.3 Screws UNI 5931 4x40mm TCEI 8.8 ZB (n.1
kit x brake)
LT 999
MFC-208
KIT 1st or 2nd brake
MFC-201 + n.2 MFC-202 + MFC-203 + MFC-204 + MFC-205+ MFC-
206 + n.3 MFC-207 + n.3 TCEI-M4x80 + n.3 TCEI-M4x40
LT XRKB06
MFC-209
KIT Rotor brake + Hub Gear
MFC-204 + MFC-205
LT XRS-0091
