USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg
MFC - Gear Box Exploded DrawingMFC - Gear Box Exploded Drawing
WARNINGWARNING
For more information contact EXE Technology OfficeFor more information contact EXE Technology Office
MFC - Motor Side Exploded DrawingMFC - Motor Side Exploded Drawing
WARNINGWARNING
For more information contact EXE Technology OfficeFor more information contact EXE Technology Office
MFC - Load Wheel & Chain Guide Exploded DrawingMFC - Load Wheel & Chain Guide Exploded Drawing
WARNINGWARNING
For more information contact EXE Technology OfficeFor more information contact EXE Technology Office

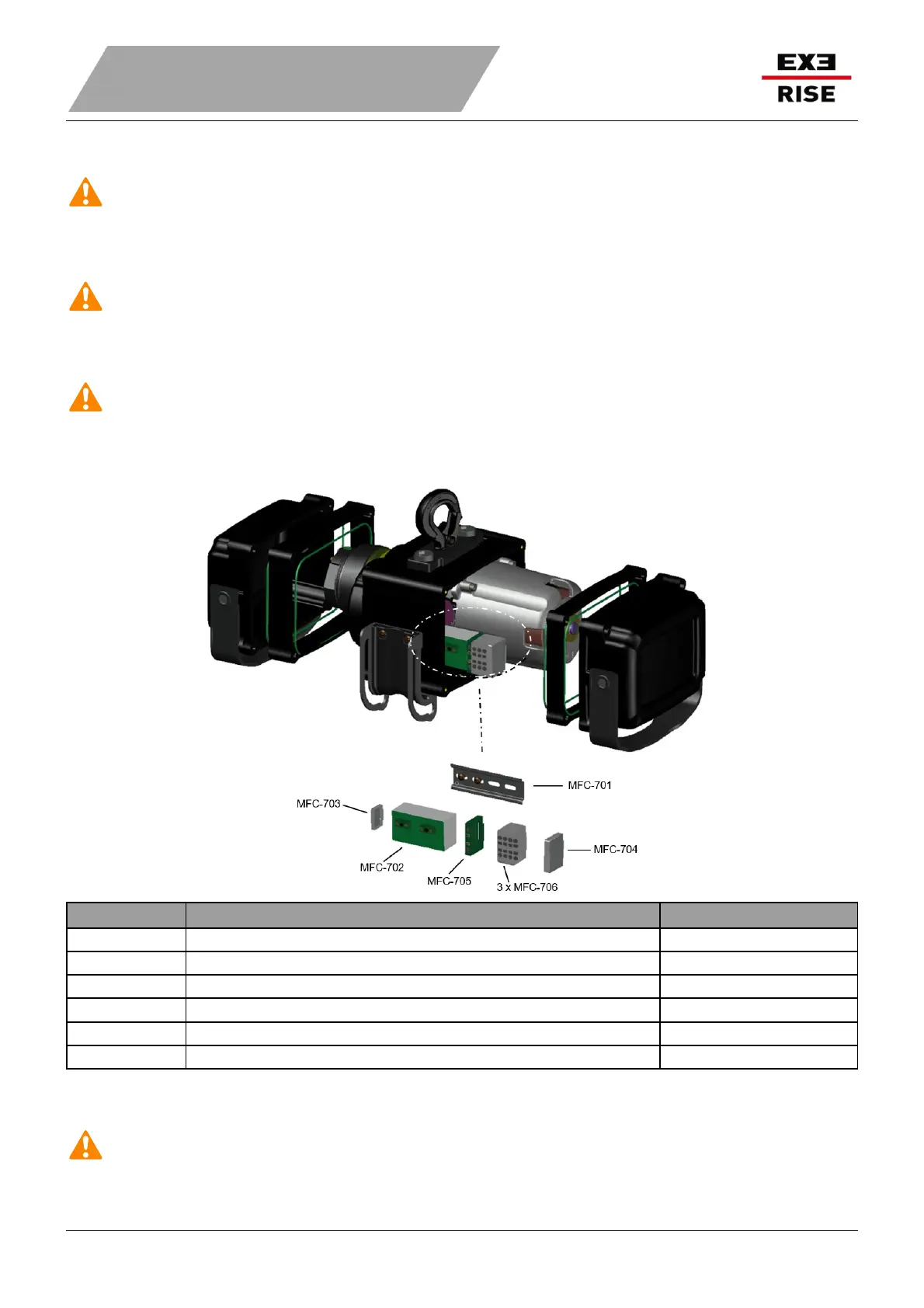

MFC - Electrical components Exploded Drawing: Direct ControlMFC - Electrical components Exploded Drawing: Direct Control
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I ITA CODEA4I ITA CODE
MFC-701 Omega Support with screws LT XRS-0174
MFC-702 Rectifier & Circuit Breaker 120Vac/105Vdc (for Brake 105Vdc) LT XRS-0008
MFC-703 Terminal block of screw terminal and omega support LT AXWEI792034
MFC-704 End plate of screw terminal LT AXWEI170475
MFC-705 Yellow-green PE screw terminal LT AXWEI171281
MFC-706 n.1 Single terminal screw LT AXWEI171275
MFC - Electrical components Exploded Drawing: Low Voltage ControlMFC - Electrical components Exploded Drawing: Low Voltage Control
WARNINGWARNING
For more information contact EXE Technology Office
