USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg

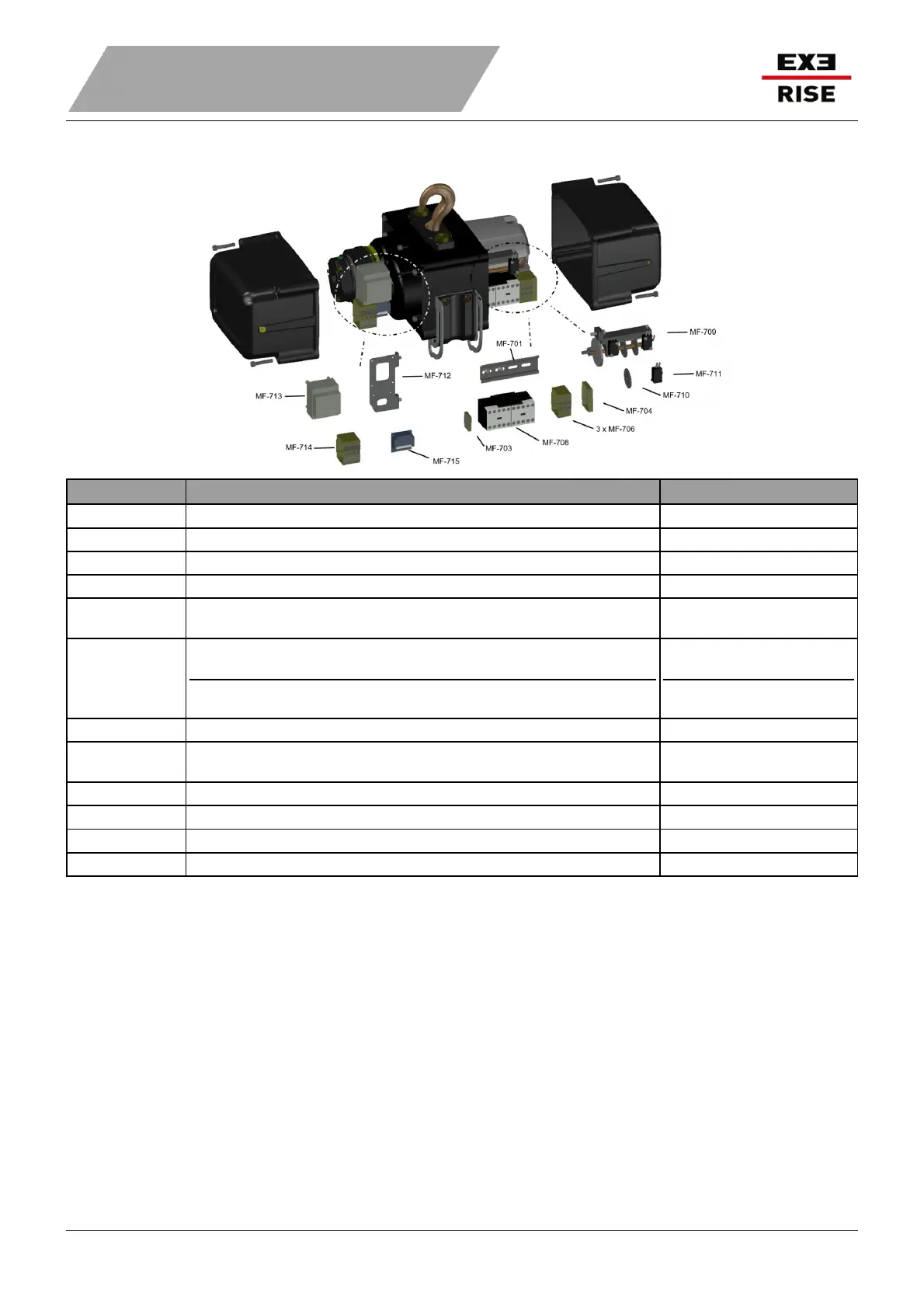

MF - Electrical components Exploded drawing: Low Voltage ControlMF - Electrical components Exploded drawing: Low Voltage Control
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I CODE / NOTEA4I CODE / NOTE
MF-701 Omega Support with screws LT XRS-0174
MF-703 Terminal block of screw terminal and omega support LT AXWEI792034
MF-704 End plate of screw terminal LT AXWEI170475
MF-706 n.1 Single terminal screw LT AXWEI171275
MF-708 Micro Reversing Contactor 3pin+2cont. 2.2kW 400Vac coil 24Vac 50Hz
LT AXBENK05D/2
LT AXBENK0W-VB
MF-709
Medium Frame 2p Limit Switch RWM (30m) with extended shaft for
Encoder Lika CK41
Medium Frame 4p Limit Switch RWM (30m) with extended shaft for
Encoder Lika CK41
LT XRS-0186
LT XRS-0115
MF-710 n.1 Wheel for Limit Switch RWM LT XRS-0188
MF-711
"Giovenzana" Microswitch (intermediate spring) - Faston connection
0.8x6.3 + n.2 screws UNI 7687 TCBI+ M3x16
LT XRS-0166
MF-712 Aluminium support + n.2 screws LT 999
MF-713 Transformer Meth Type T4 25VA 400/24vac LT XRS-0066
MF-714 Fuse holder LT 999
MF-715 Rectifier PMESF 400S LT XRS-0016
