Chain hoist from 198kg to 2500kg

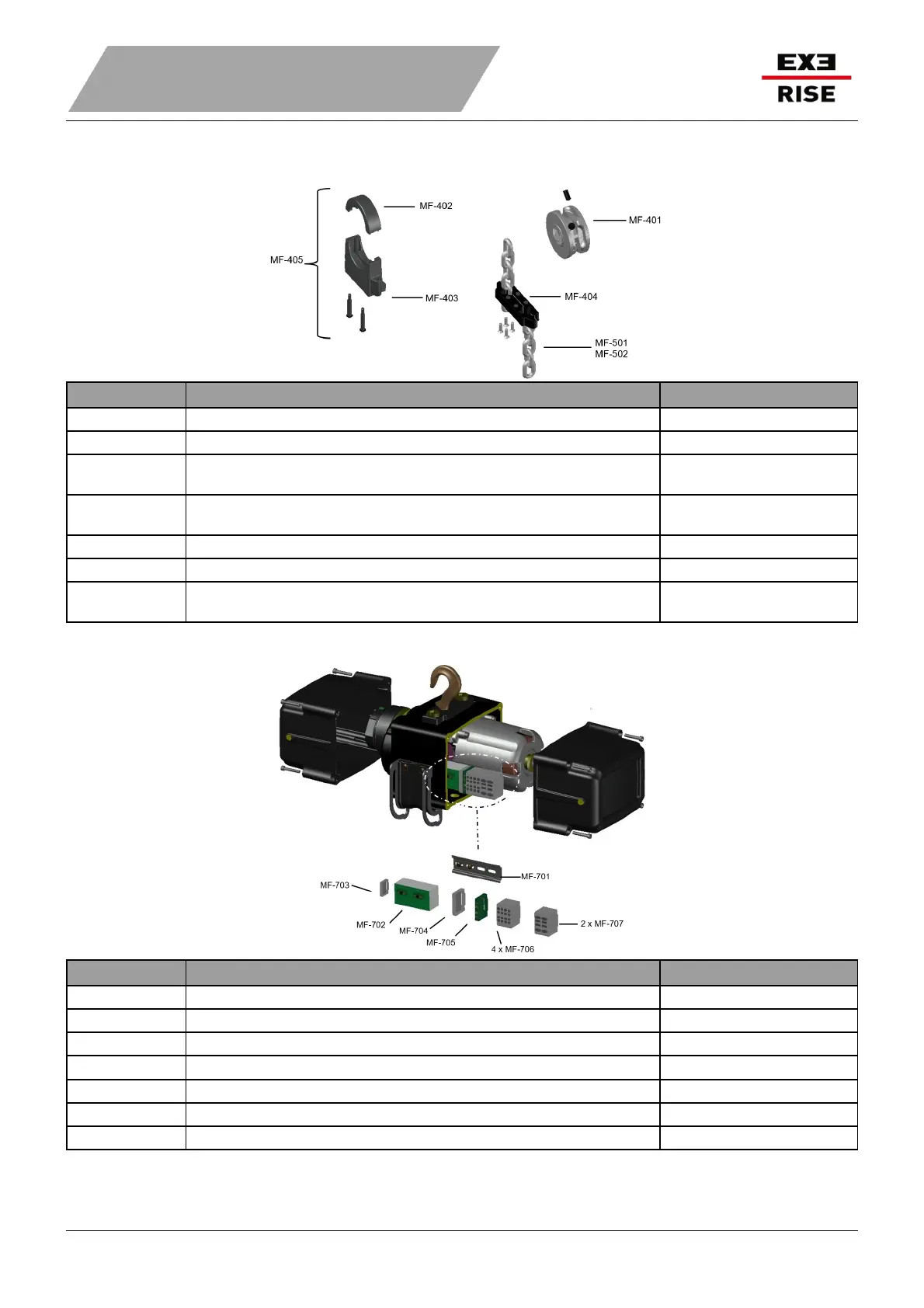

MF - Load Wheel & Chain Guide Exploded DrawingMF - Load Wheel & Chain Guide Exploded Drawing
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I CODE / NOTEA4I CODE / NOTE
MF-401 Medium Frame Load Wheel 5 pocket for 6x18mm chain + Hex Socket LT XRS-0126
MF-402 Medium Frame Internal Chain Guide for 6x18mm chain LT XRS-0134
MF-403
Medium Frame External Chain Guide for 6x18mm chain with n.2 screws
UNI 5931 6x35mm TCEI
LT XRS-0158
MF-404
Medium Frame PVC External Chain Guide Plate (2 parts) for 6x18mm
chain with n.4 screws 5x25mm TCEI
LT XRS-0074
MF-501 Galvanized Steel Chain 6x18mm RTS DAT (1m) LT XRC0618-01M
MF-502 Phosphated Black Steel Chain 6x18mm RTS DAT (1m) LT XRC0618K-01M
MF-405
Medium Frame KIT Chain Guide for 6x18mm chain (Internal + Exernal +
screws) = MF-402 + MF-403
LT XRS-0146
MF - Electrical components Exploded Drawing: Direct ControlMF - Electrical components Exploded Drawing: Direct Control
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I CODE / NOTEA4I CODE / NOTE
MF-701 Omega Support with screws LT XRS-0174
MF-702 Rectifier & Circuit Breaker 120Vac/105Vdc (for Brake 105Vdc) LT XRS-0008
MF-703 Terminal block of screw terminal and omega support LT AXWEI792034
MF-704 End plate of screw terminal LT AXWEI170475
MF-705 Yellow-green PE screw terminal LT AXWEI171281
MF-706 n.1 Single terminal screw LT AXWEI171275
MF-707 n.1 Double terminal screw LT AXWEI171278
To Next Page
