USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg

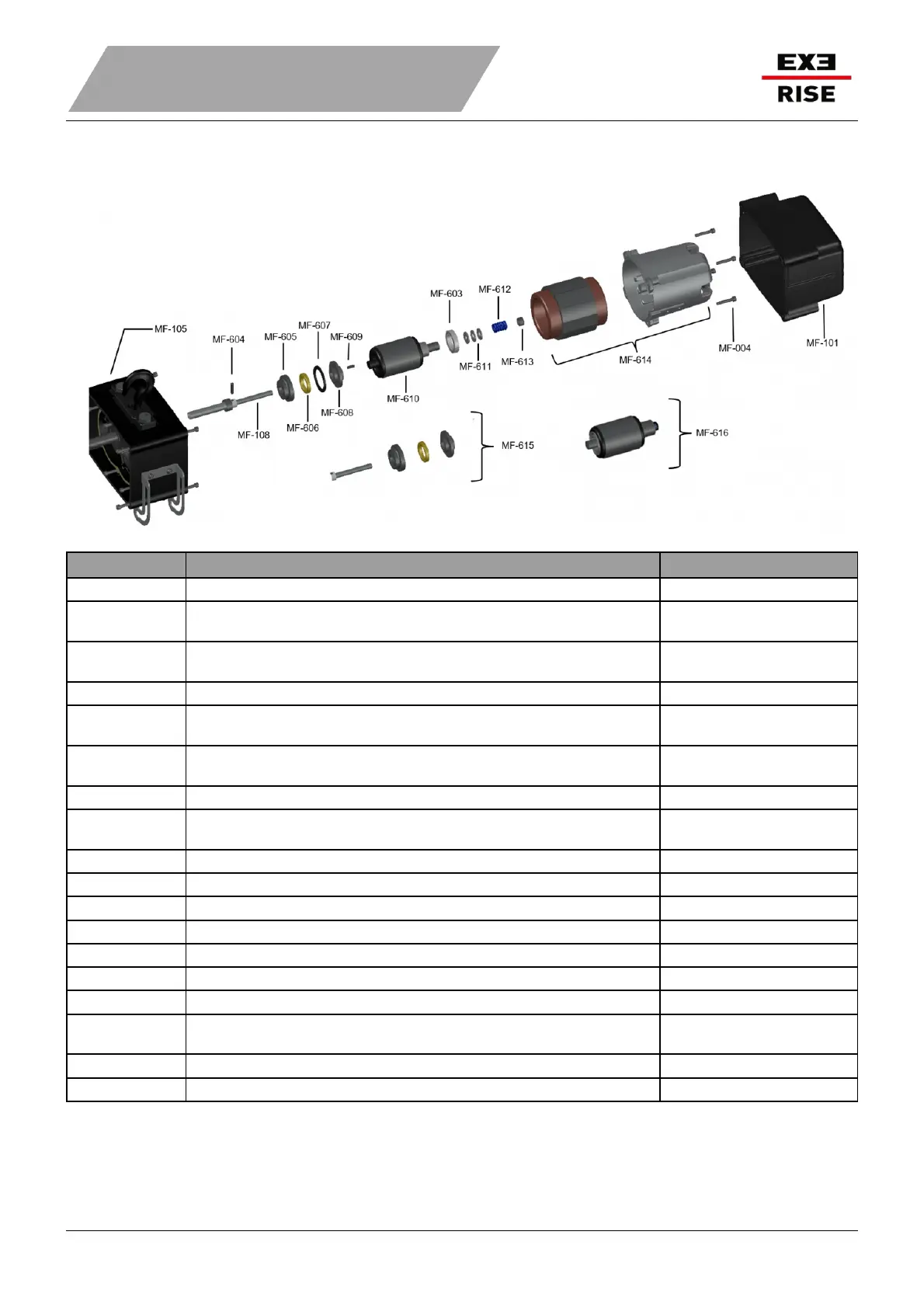

MF - Motor Side Exploded drawingMF - Motor Side Exploded drawing
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I CODE / NOTEA4I CODE / NOTE
MF-105 Medium Frame Load Wheel Housing Not available as spare
MF-108 Clutch and Rotor 0.8kW Shaft
Not available separately
(MF-615)
MF-603 Bearing 6906RS
Not available separately
(MF-307)
MF-604 Metal Pin 6x26mm LT 999
MF-605 Clutch inferior support
Not available separately
(MF-615 MF-616)
MF-606
Brass Clutch Disk
Not available separately
(MF-615 MF-616)
MF-607 Ferrite Clutch Disk LT XRS-0108
MF-608 Clutch superior support
Not available separately
(MF-615 MF-616)
MF-609 Flat key 5x3x16mm UNI7510A LT 999
MF-610 Rotor 230/400VAC-3-50Hz 0.8Kw LT 999
MF-611 Thrust Bearing for rotor shaft LT XRS-0169
MF-612 Blue Spring Clutch LT 999
MF-613 M10 Nut DIN985 LT 999
MF-614 Stator 230/400VAC-3-50Hz 0.8Kw + Aluminium Housing LT XRS-0095
MF-004 n.4 Screws UNI 5931 6x35mm TCEI 8.8 ZB 3.0800
MF-101
Medium Frame Black Cover with Handle 215x160x139mm (without
screws)
LT XRS-0079
MF-615 KIT Clutch with shaft LT 999
MF-616 KIT Rotor-Clutch with shaft LT XRS-0118
To Next Page
