USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg

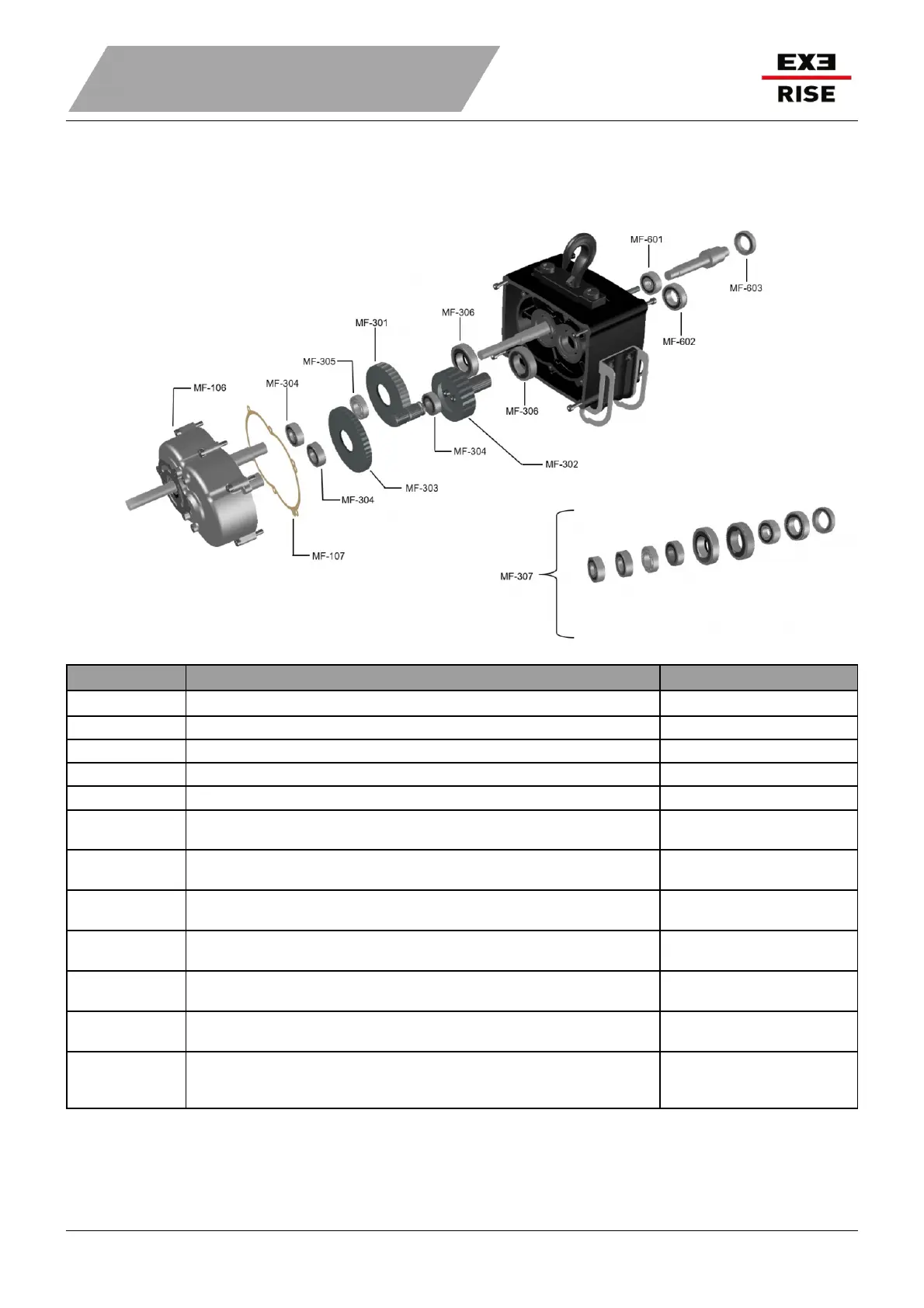

MF - Gear Box Exploded DrawingMF - Gear Box Exploded Drawing
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I CODE / NOTEA4I CODE / NOTE
MF-106 Gear Box alum. housing + n.6 screws UNI 5931 6x35mm TCEI 8.8 ZB
Not available as spare
MF-107 Reduction Gear Box Housing Gasket LT XRS-0120
MF-301 1st Gear stage Not available as spare
MF-302 2nd Gear stage Not available as spare
MF-303 3rd Gear stage Not available as spare
MF-304 Bearing 6202RS
Not available separately
(MF-307)
MF-305 Bearing 16004RS
Not available separately
(MF-307)
MF-306 Bearing 6006RS
Not available separately
(MF-307)
MF-601 Bearing 6203RS
Not available separately
(MF-307)
MF-602 Bearing 6005RS
Not available separately
(MF-307)
MF-603 Bearing 6906RS
Not available separately
(MF-307)
MF-307
KIT Bearing
n.3 6202RS (MF-304) + n.1 16004RS (MF-305) + n.2 6006RS (MF-306) +
n.1 6203RS (MF-601) + n.1 6005RS (MF-602) + n.1 6906RS (MF-603)
LT XRS-0107
LLaanngguuaaggee:: EENN MMaannuuffaaccttuurreerr:: RRWWMM SS..RR..LL AAuutthhoorriisseedd rreepprreesseennttaattiivvee:: AARREEAA FFOOUURR IINNDDUUSSTTRRIIEESS IITTAALLIIAA SSRRLL
58
