USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg

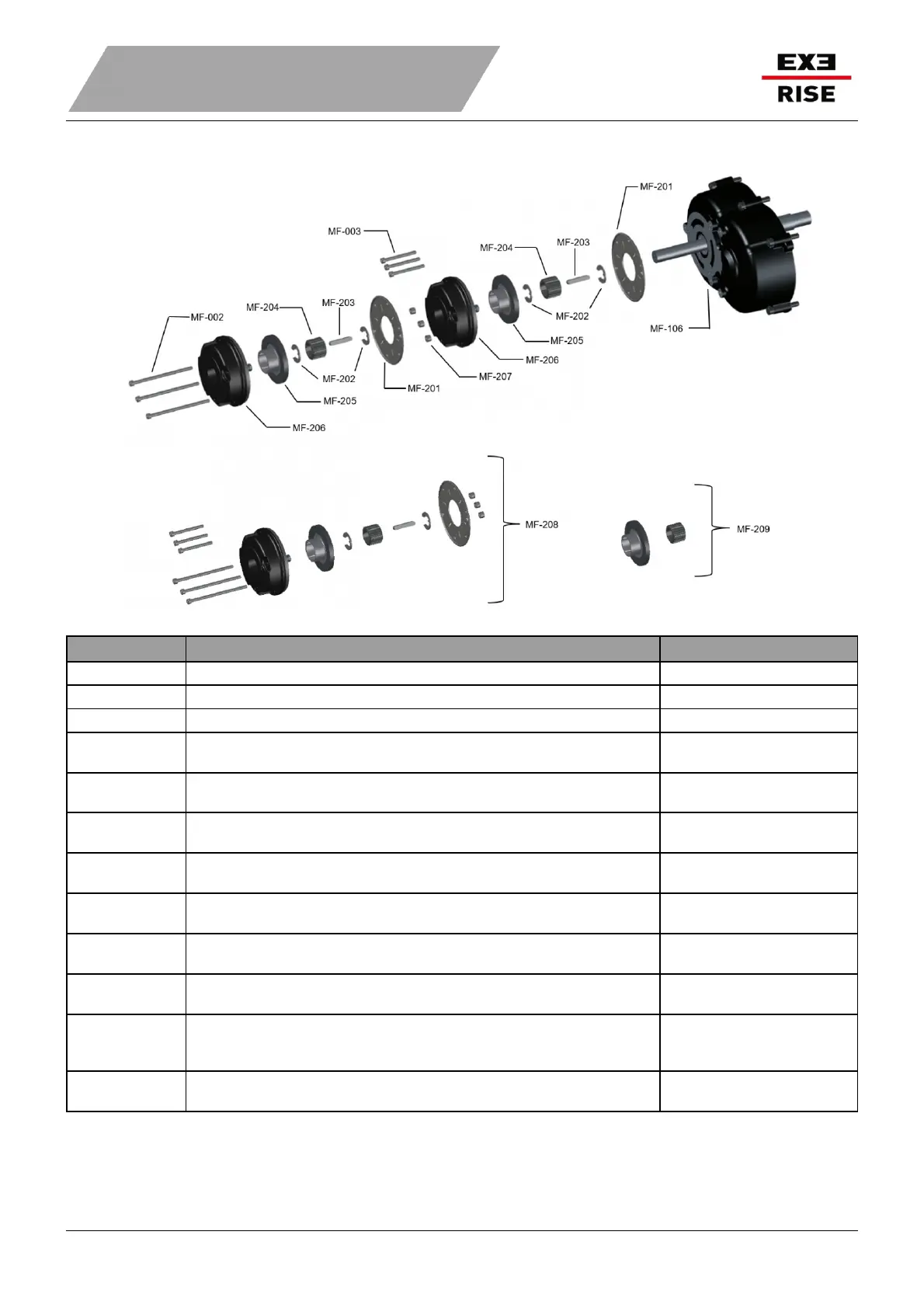

MF - Brakes Exploded DrawingMF - Brakes Exploded Drawing
KEY NUMBERKEY NUMBER DESCRIPTIONDESCRIPTION A4I ITA CODE / NOTEA4I ITA CODE / NOTE
MF-106 Gear Box alum. housing + n.6 screws UNI 5931 6x35mm TCEI 8.8 ZB Not available as spare
MF-201 Steel brake disk Øe 84mm - Øi 31.9mm – S=1.5mm (n.1 per brake) LT XRS-0137
MF-202 KIT n.4 Seeger-Ret. Shaft Locking Washer Set Ø10mm (n.2 x brake) LT XRS-0159
MF-203 Metal key 5x5x25mm (n.1 x brake)
Not available separately
(MF-208)
MF-204 Hub gear (n.1 x brake)
Not available separately
(MF-208 MF-209)
MF-205 Rotor brake (n.1 x brake)
Not available separately
(MF-208 MF-209)
MF-206 KIT Stator brake L06 103VDC (n.1 x brake)
Not available separately
(MF-208)
MF-207 (Only double brake) Spacers (n.3 x pair of brake)
Not available separately
(MF-208)
MF-002
(Only double brake) n.3 Screws UNI 5931 4x80mm TCEI 8.8 ZB
(n.1 kit x pair of brake)
LT XRS-0153
MF-003
(Only single brake) n.3 Screws UNI 5931 4x40mm TCEI 8.8 ZB (n.1
kit x brake)
LT 999
MF-208
KIT 1st or 2nd brake
MF-201 + n.2 MF-202 + MF-203 + MF-204 + MF-205+ MF-206 + n.3
MF-207 + n.3 TCEI-M4x80 + n.3 TCEI-M4x40
LT XRKB06
MF-209
KIT Rotor brake + Hub Gear
MF-204 + MF-205
LT XRS-0091
