Troubleshooting

FTB-2/FTB-2 Pro and FTB-4 Pro 371

Viewing System Information

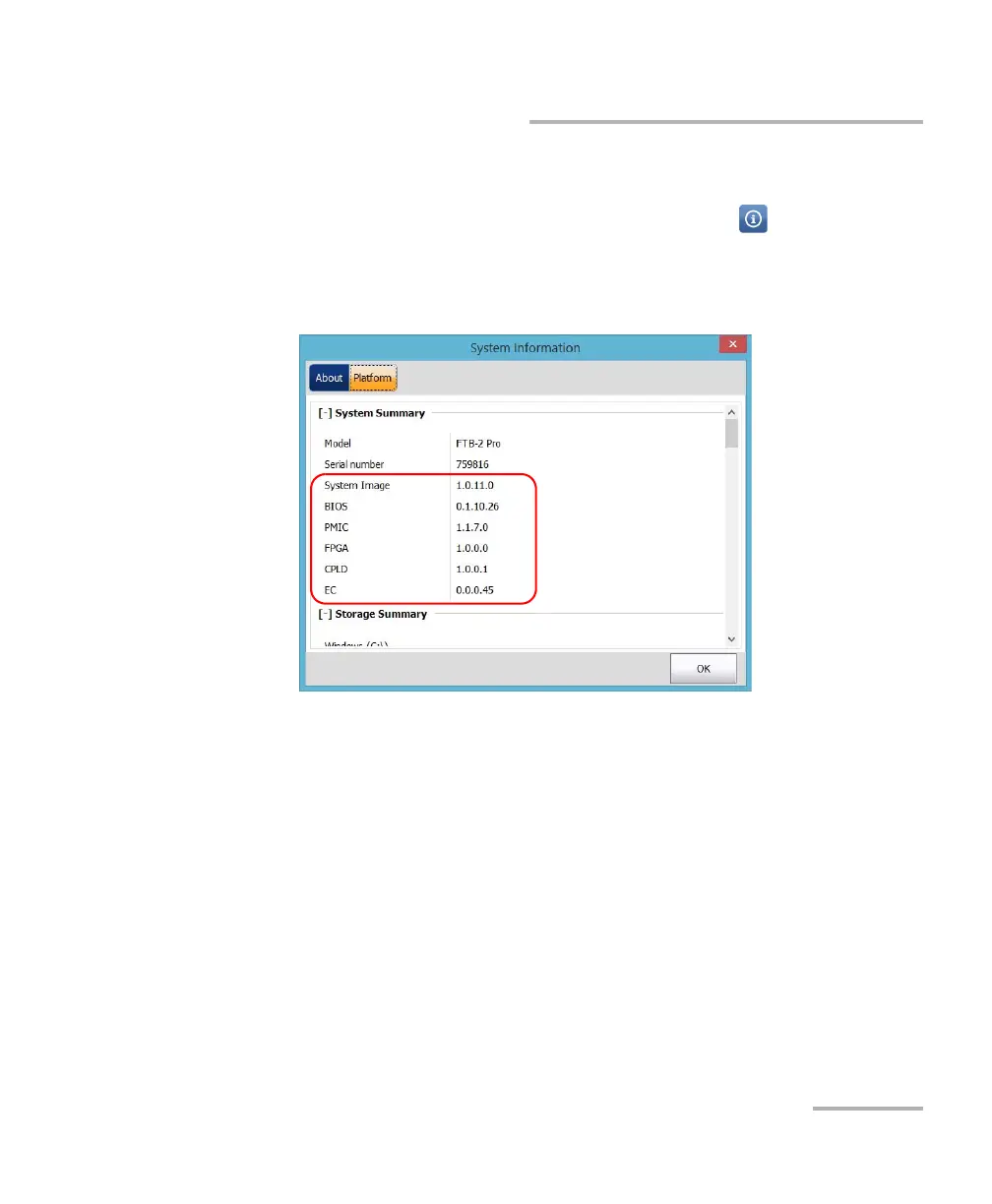

To retrieve the version numbers of the system image and

hardware components:

1. In the lower right corner of the main window, tap .

2. Tap the Platform tab.

The version numbers are displayed.
