Getting Started with Your Unit

60 FTB-2/FTB-2 Pro and FTB-4 Pro

Turning Off Your Unit

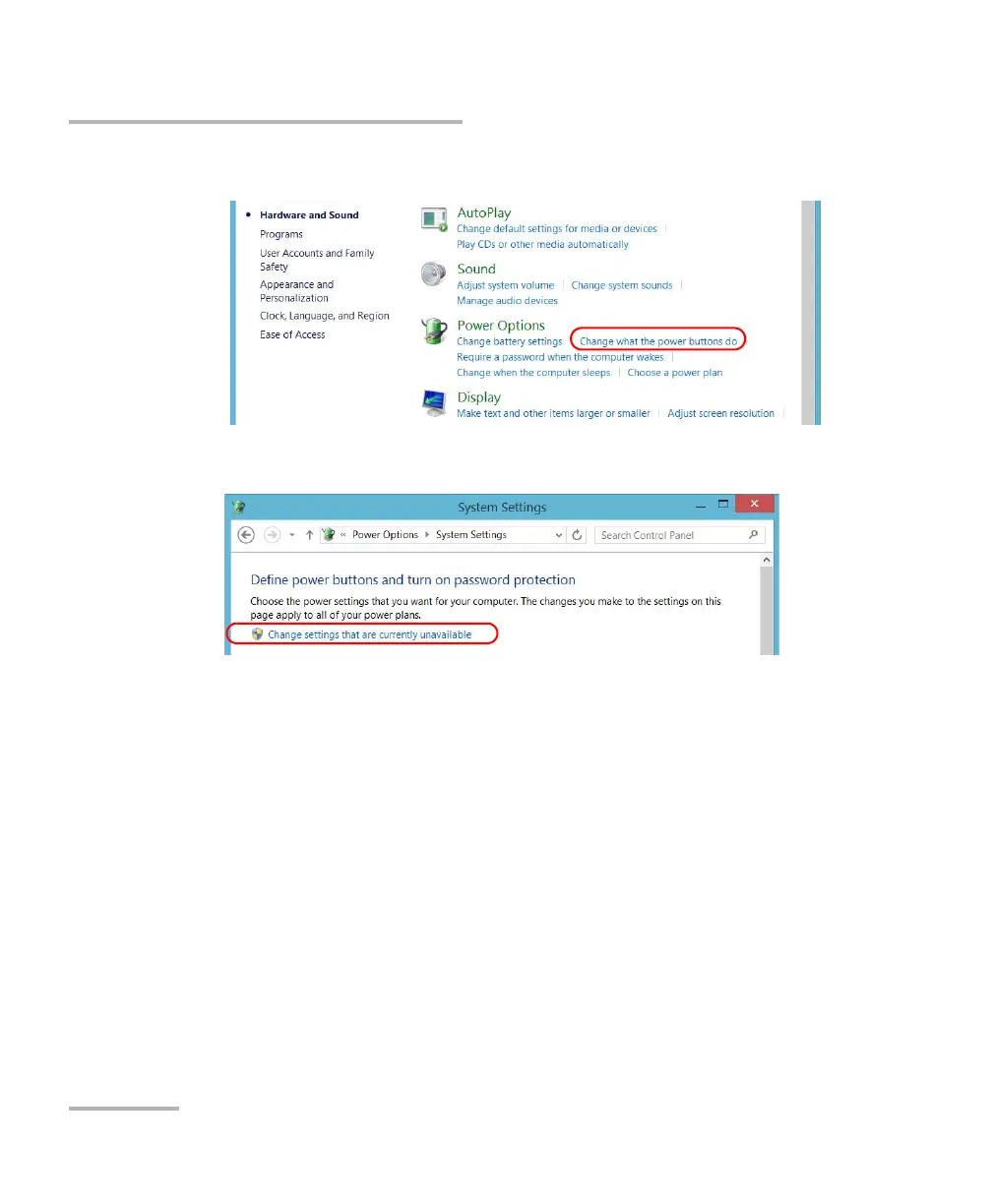

4. Under Power Options, tap Change what the power buttons do.

5. Tap Changes settings that are currently unavailable.
