FX15 Controller Technical Bulletin
10
Connection Details

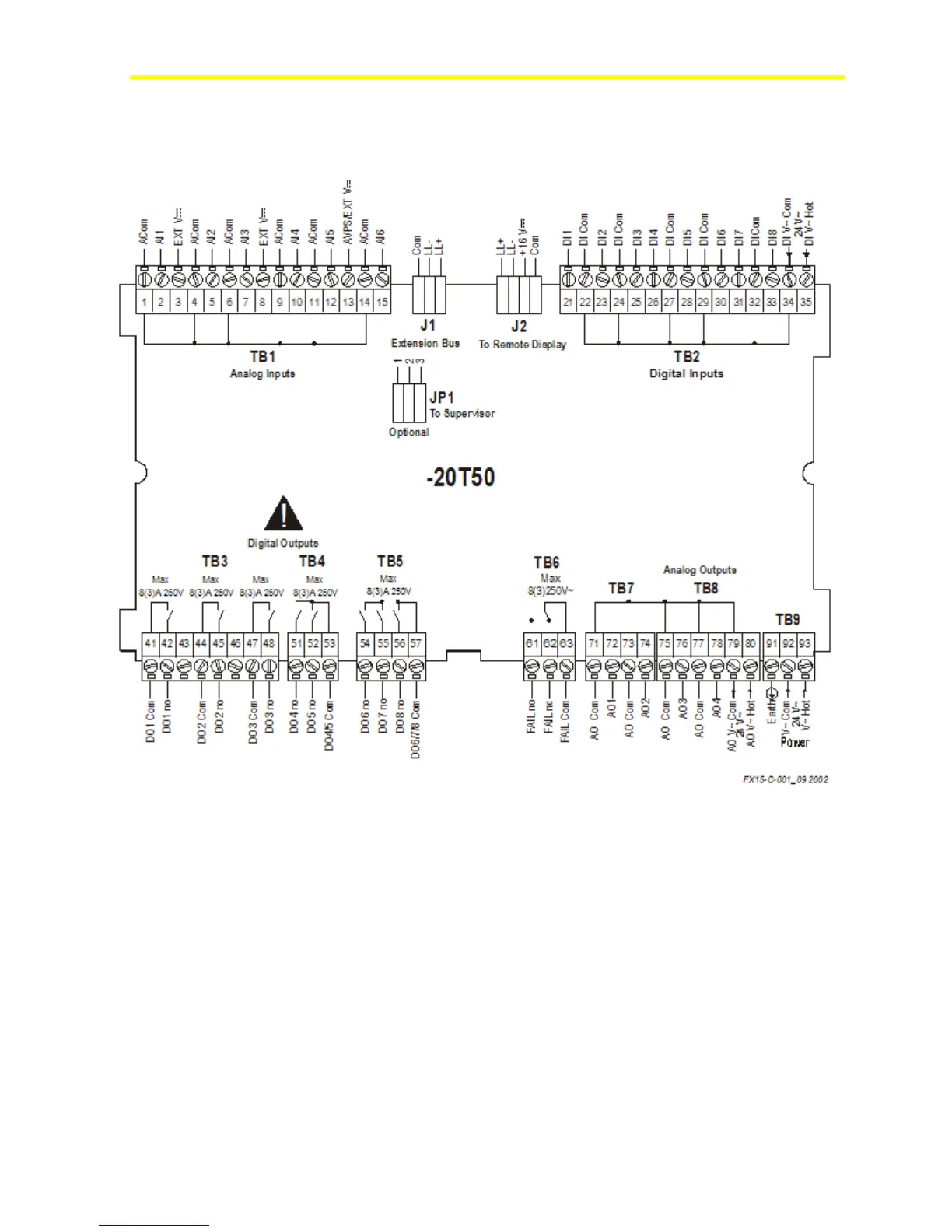

LP-FX15D2x and LP-FX15D7x Wiring Diagram
Figure 9: Connection Details for the FX15 (9 Relays)
