FX15 Controller Technical Bulletin
17
Connection Details for the LON Card
The FX15 comes either with the LON card preassembled or
communication-less and the card can be optionally assembled later in
the field. For details, see Ordering Codes.
The LON plug-in serial card allows the FX15 to be connected to a
L
ONWORKS network.
Service PIN
Reachable from the
controller top lid

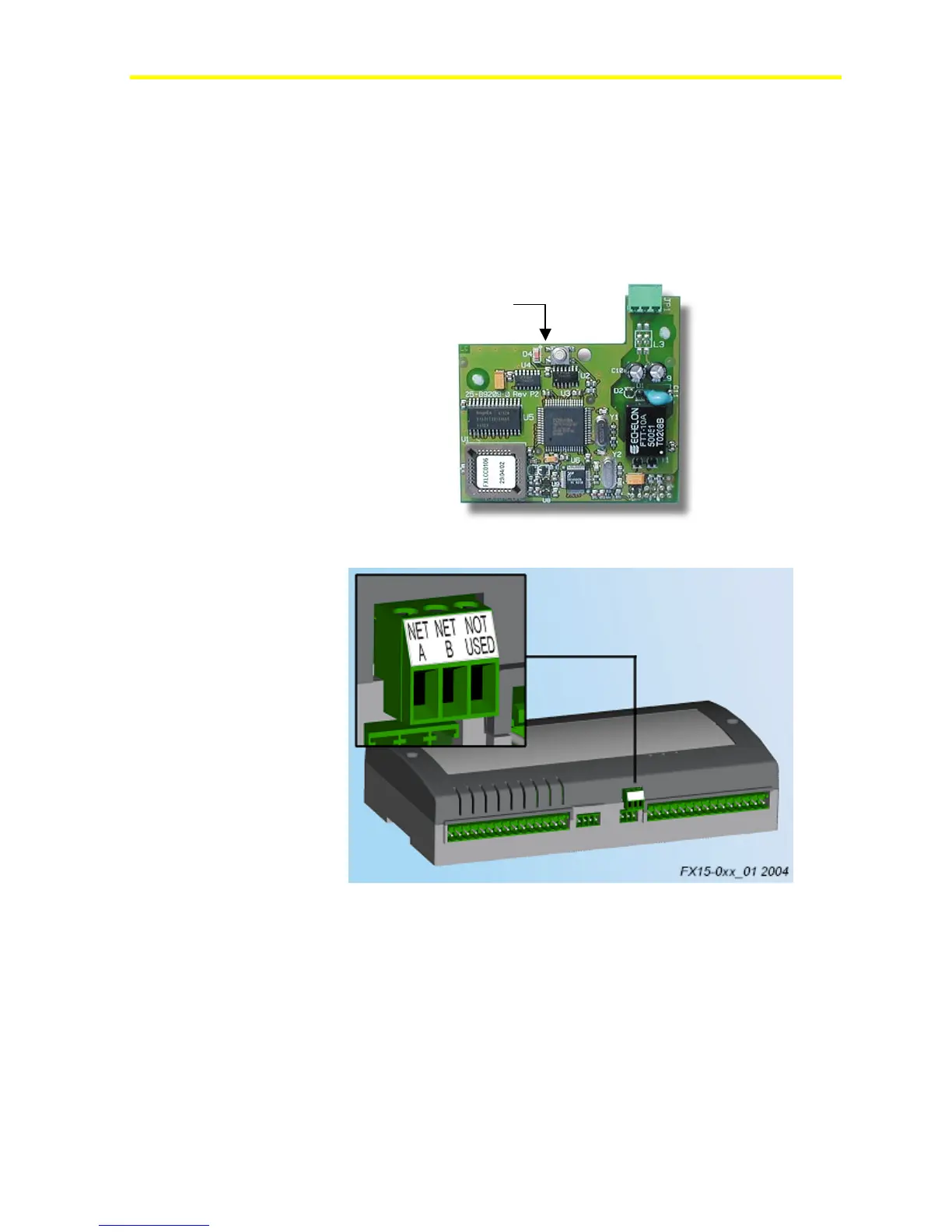

Figure 17: LON Plug-in Communication Card
Figure 18: LON Card Connection
Assembling the LON Communication Card
To assemble the LON communications card:
1. Power off the controller (hot plug-in not allowed).
2. Open the controller. See
Figure 19.
