Explorer FX15 - FX15 N2 Open Card Connection

FX15 Controller Technical Bulletin
14
Connection Details for the N2 Open Card
The FX15 comes either with the N2 Open Card preassembled or the
card can be assembled at a later time in the field. For details, see
Ordering Codes.
The N2 Open plug-in serial card allows the FX15 to be connected to an
N2 Open serial network through the RS-485 standard.
LED
Address
Se
l
ect
i
o
n

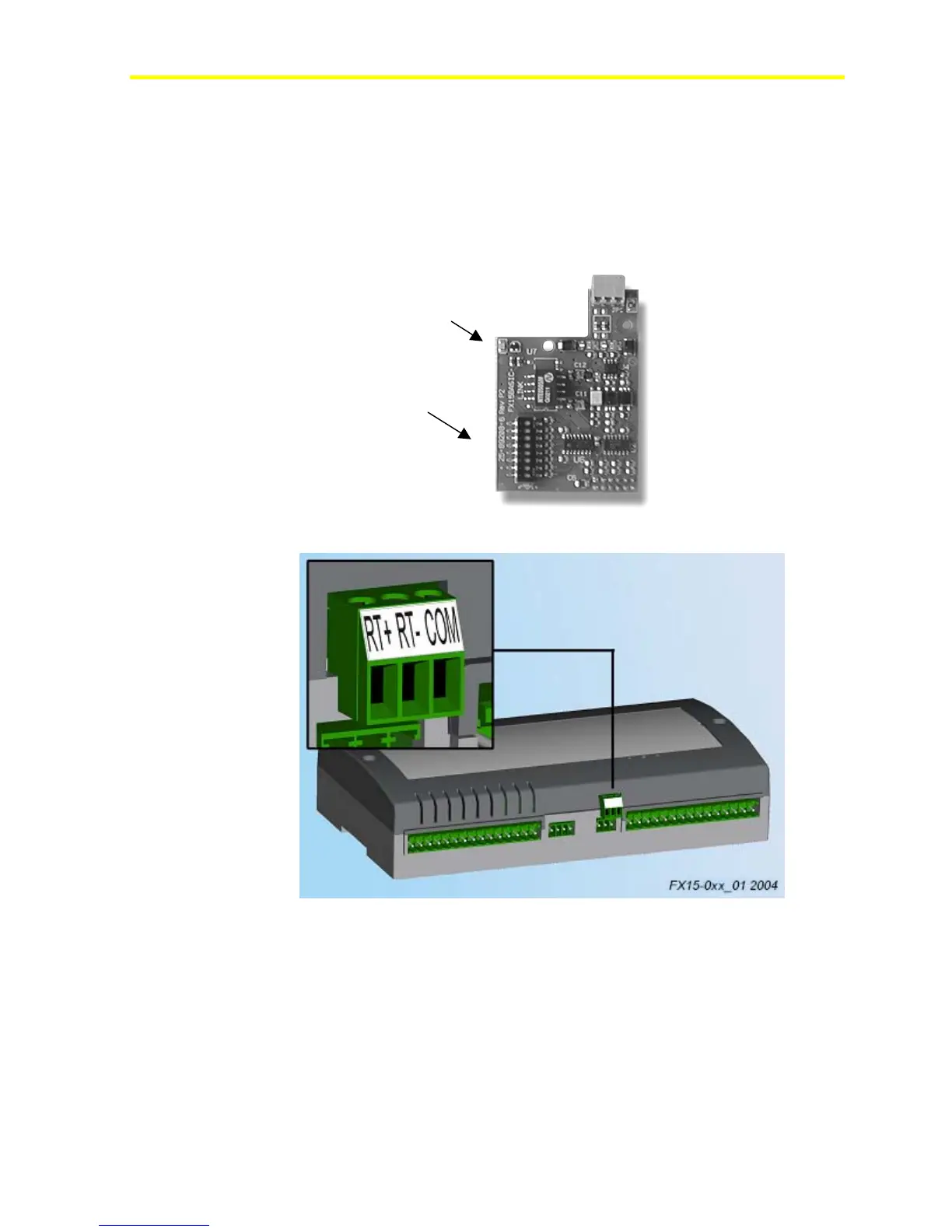

Figure 13: N2 Open Plug-in Communication Card
Figure 14: N2 Open Card Connection
Assembling the N2 Communication Card
To assemble the N2 communication card:
1. Power off the controller (hot plug-in not allowed).
2. Open the controller. See Figure 15.
