FX15 Controller Technical Bulletin
26
Inputs and Outputs
Introduction
The FX15 features the following I/O Channels:
• six high resolution Analog Inputs (13 bit, A/D Converter)
• eight opto-isolated Digital Inputs from potential free contacts, each
with transition counter
• nine Digital Outputs (4 Relays and 5 optionally Relays or triacs)
• four opto-isolated Analog Outputs

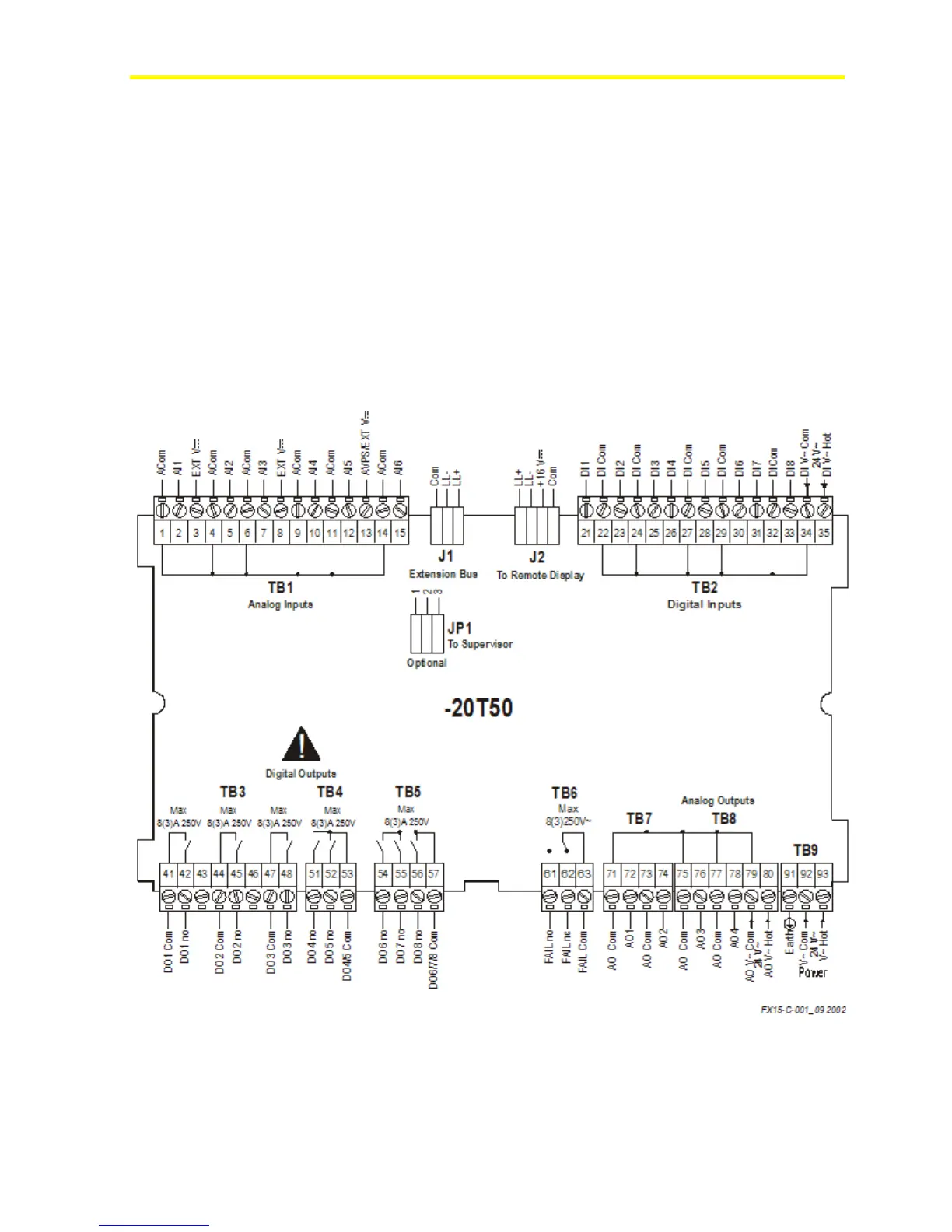

Figure 28: FX15 I/Os
