FX15 Controller Technical Bulletin
19
Connection Details for the Remote User Interface
The FX15 can support up to two Medium User Interfaces (MUIs) at the
same time.
The MUI is available in 2 models: panel mount (up to 3 m [9.8 ft]) and
wall mount (up to 1 km [0.6 mi]). The FX15 can support 1 panel mount
MUI plus 1 wall mount MUI or 2 wall mount MUIs (see
Figure 21 and
Figure 22).
For the panel mount connection use the pre-cabled connection kit
(LP-KIT007-000C), 3 m (9.8 ft) long, with a phone jack on the MUI
side and a preassembled screw connector on the FX15 side.

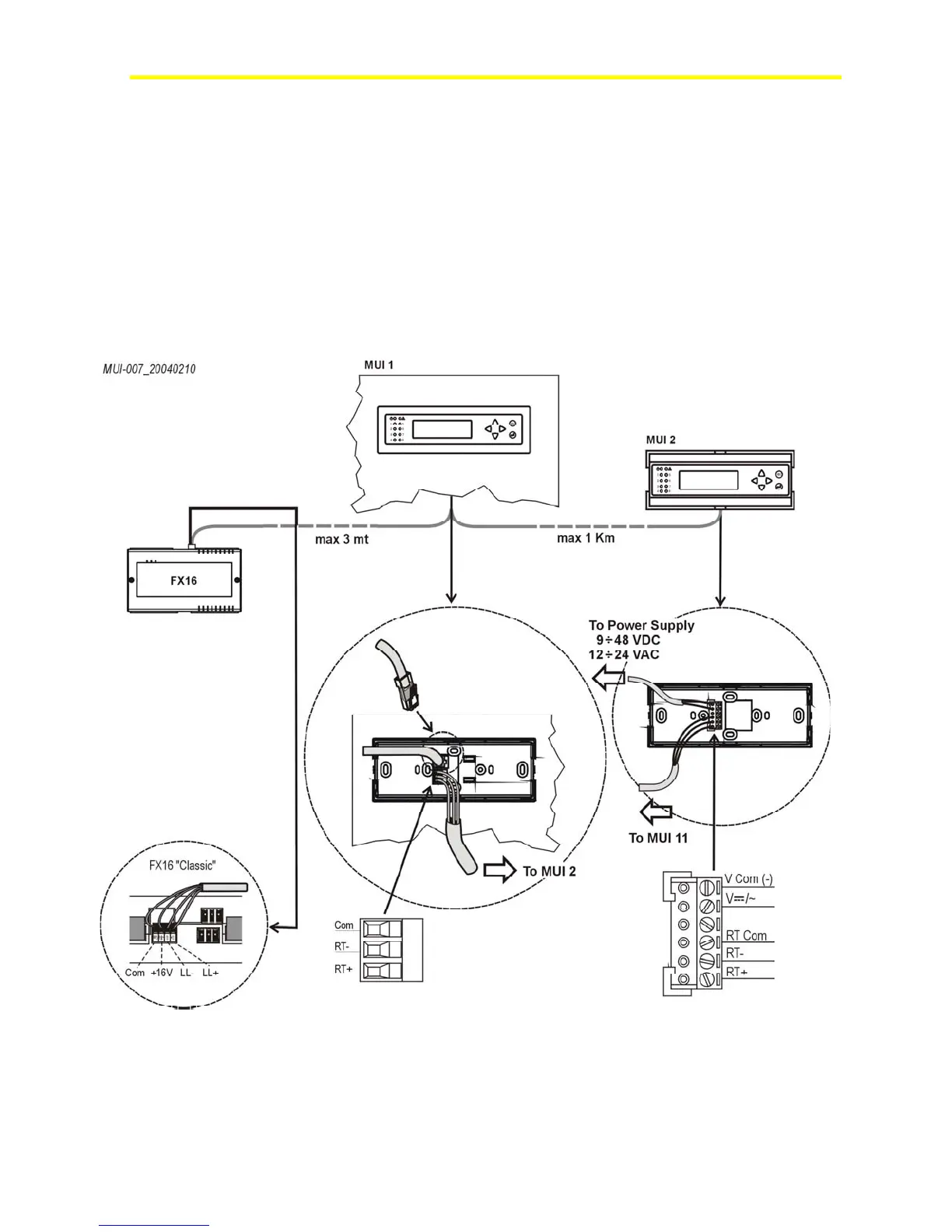

Figure 21: Installation for One Local and One Remote MUI
