Connection Details for the Programming Key
The Programming Key is used to upload an application from a personal
computer or from a preprogrammed FX15. The application is then
downloaded to other FX15 controllers.
Upload Download
<1 sec
>3 sec
>15 sec
to select
to confirm
for MEMORY ERASE
Download / Upload
LED
Download / Upload failed
LEDs
LP-KIT100-001_09 200
2

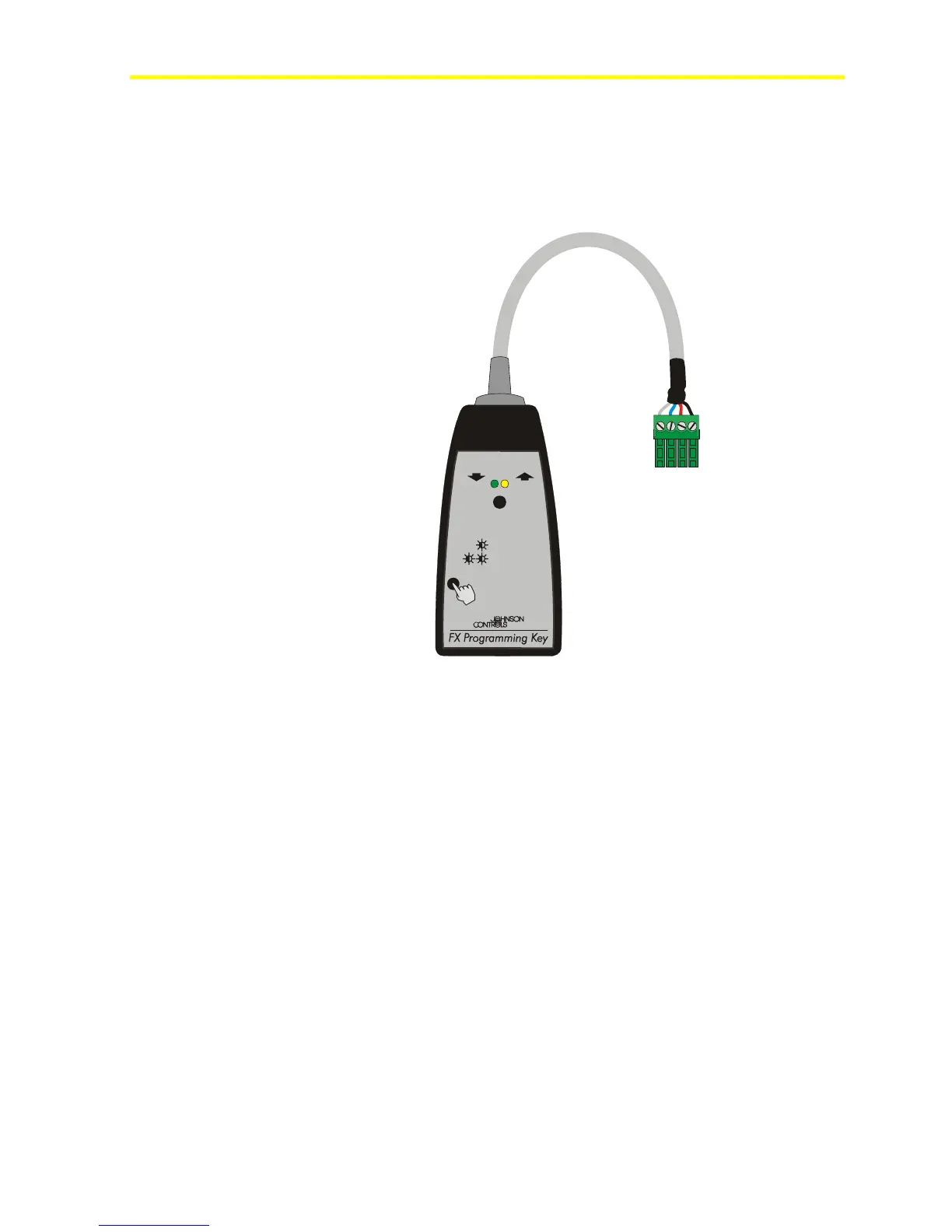

Figure 25: Programming Key
