FX15 Controller Technical Bulletin
43
Digital outputs in extension modules can only be configured as on/off
or pulse type, and the physical output may be a triac or a relay contact.
Pulse type outputs switch on for a configurable period (1 to 1275 ms)
for each transition of the connected variable.
An XT91D00 can be combined with its expansion modules to provide
the following configurations:
• 8 analog inputs/outputs
• 8 digital inputs/outputs, with digital counters associated with the
digital inputs
• 8 analog inputs/outputs and eight digital inputs/outputs
• 16 digital inputs/outputs, with digital counters associated with the
digital inputs within the first eight input/output points
XT
XT
X
T
XT
X
P-9102
X
P-9103
X
P-9103
X
P-9107
XP-9103XP-9104
XP-9103
XP-9103
XP-9107
FX15 "Classic"
Extension Bus (J1)
FX15-C-007_10 2002

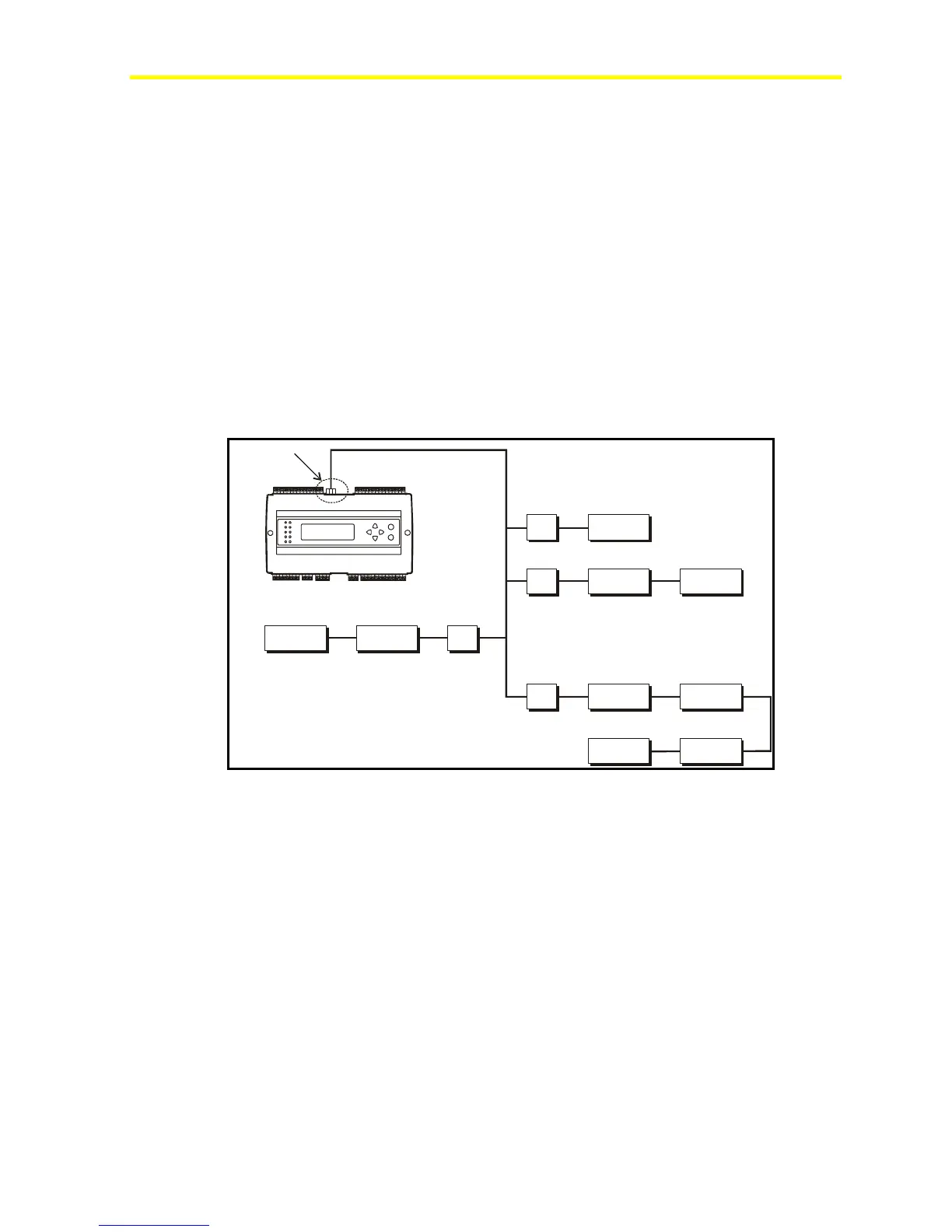

Figure 44: Example of Maximum Configuration
