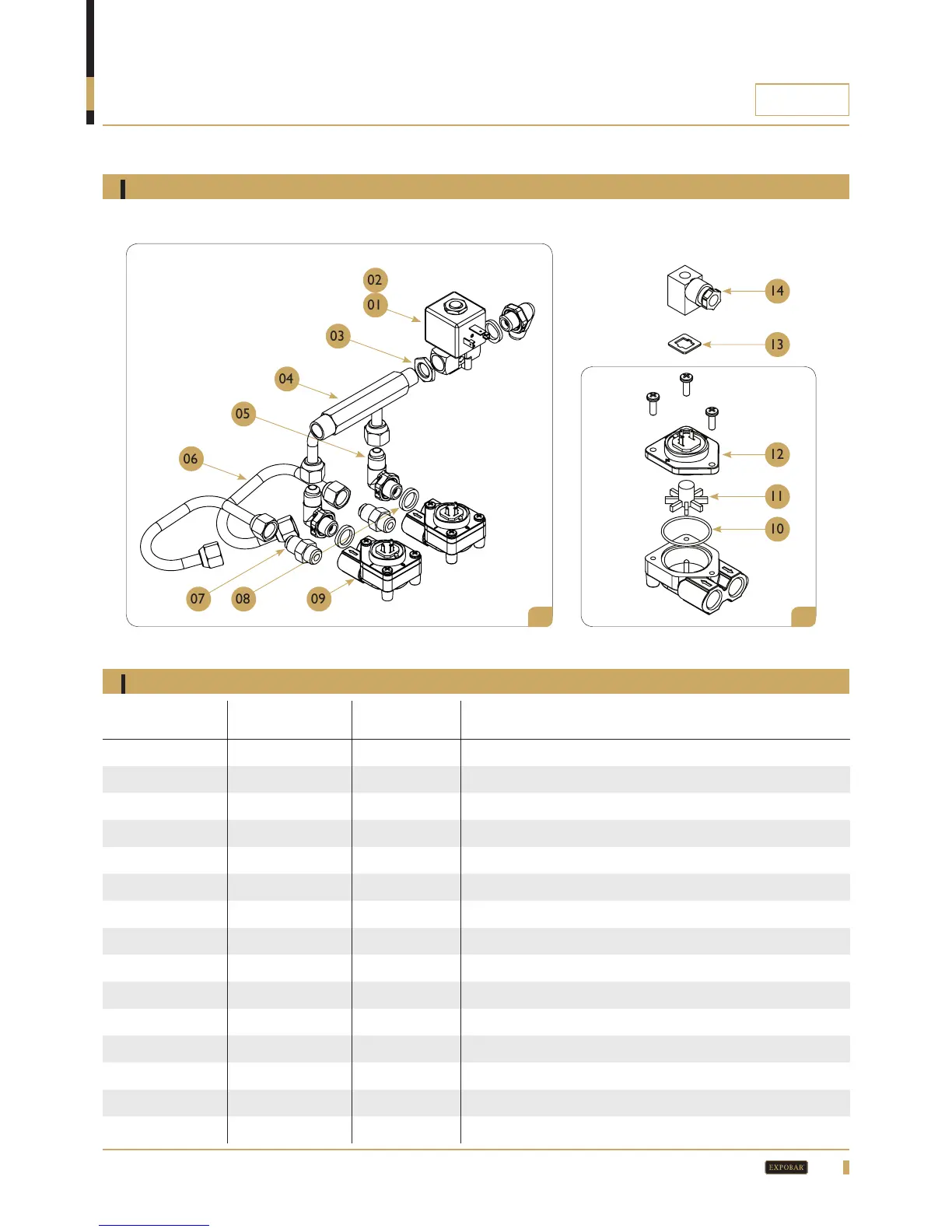

DETAIL DRAWINGS
G-10 Mini 2Gr : water supply and drainage set
Drawing
07
09
06
08
05
04
03
01
13
14
11
12
10
POS. PCS Part No. Description
01 1 C60000100 1/4 X 1/4 Electrovalve Parker 220V
02 1 C60000103 1/4 X 1/4 Electrovalve Parker 120V
03 1 C30100010 Hexagonal Nut 1/4 Pressostat
04 1 C35040101 Mini Brass Tube For Battery
05 3 C30000215 Conical Bend Adaptor 1/4 X 1/4
06 2 C35040102 4Ltrs Manifold Tube
07 2 C30000510 Conical Adaptor 1/4*1/4 Electron
08 3 C50010020 13.2*18.2*2.5 1/4 Teon Gasket
09 2 C60100045 FLOWMETER UL/NETW. BRASS TEF+LED
10 2 C60102020 O-Ring Flowmeter
11 2 C60102010 Frontal Botonera Elen
12 2 C60102040 Flow Meter Lid
13 2 C*45000001 Flow Meter Joint
14 2 C60100055 Flow Meter Connector
15 - CESC00098 Piping Mini Control 2 Std&Ta
02
Part list
15 09
