Expobar G-10 Service Manual

70
G-10
R

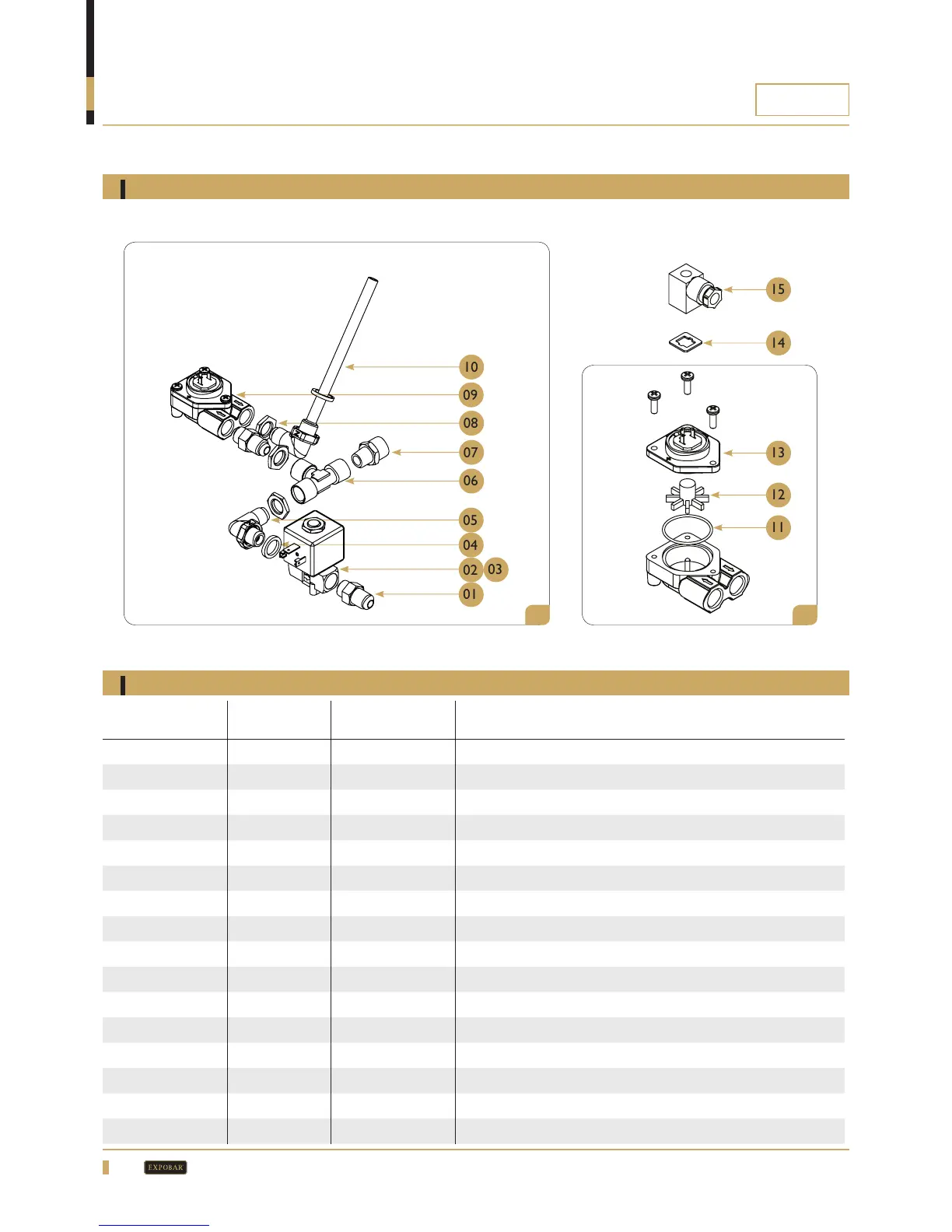

G-10 Mini 1Gr : water supply and drainage set
DETAIL DRAWINGS
Drawing
Part list
01
02
04
05
06
07
08
09
10
POS. PCS Part No. Description
01 2 C30000510 Conical Adaptor 1/4*1/4 Electron
02 1 C60000100 1/4 X 1/4 Electrovalve Parker 220V
03 1 C60000103 1/4 X 1/4 Electrovalve Parker 120V
04 2 C50010020 13.2*18.2*2.5 1/4 Teon Gasket
05 1 C30000215 Conical Bend Adaptor 1/4 X 1/4
06 1 C30000000 T H-H-H-1/4 Mini
07 1 C30000002 Buttress 1/4-3/8 Mini
08 3 C30100010 Hexagonal Nut 1/4 Pressostat
09 1 C60100045 FLOWMETER UL/NETW. BRASS TEF+LED
10 1 C30000220 Cone Injector 1/4
11 1 C60102020 O-Ring Flowmeter
12 1 C60102010 Frontal Botonera Elen
13 1 C60102040 Flow Meter Lid
14 1 C*45000001 Flow Meter Joint
15 1 C60100055 Flow Meter Connector
16 - CESC00090 Piping Mini Control 1 Std&Ta
14
15
12
13
11
03
16 09
