Extra 300S - Instrument Panel

7 - 6 Page Date: 20. April 2002
Section 7
Description and Operation of Aircraft and Systems
Pilot´s Operating Handbook
EXTRA 300S
7.6.1 INSTRUMENT PANEL
For instrumet panel arrangement of the cockpit refer to Fig. 7.6.1, which includes standard
and optional equipment marked as such.

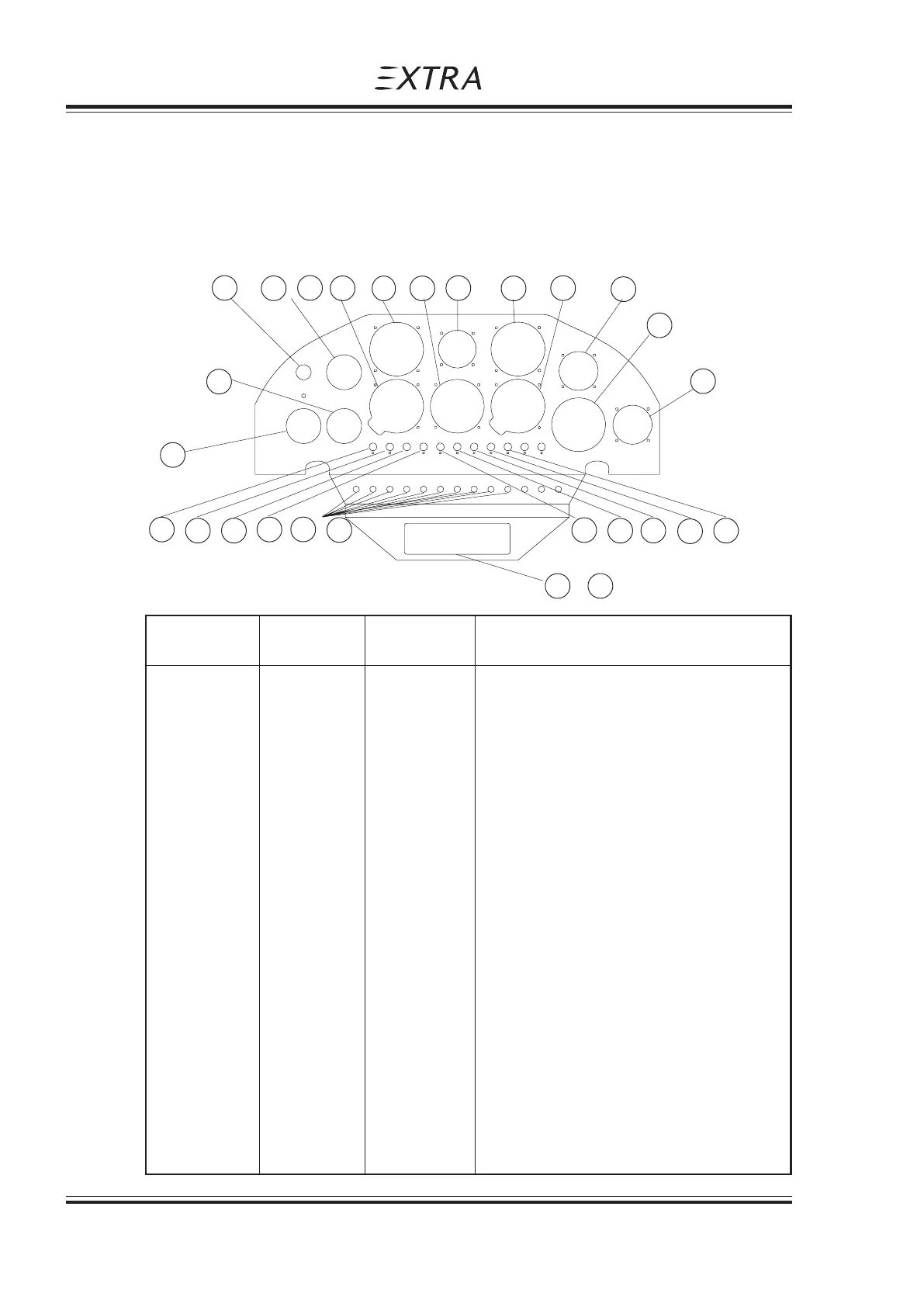

Fig. 7.6.1
1 2 / 40 3 4 5 6 7 8 9
10
12 11
13
14 15 16 17 23 - 32 18 19 20 21 22
41 / 2*
Standard Optional Position Item
x 1 Magneto Selector Switch & Starter
x 2 Amperemeter
x 3 Altimeter
x 4 Air Speed Indicator
x 5 Manifold Pressure / Fuel Flow
x 6 Magn. Direction Indicator
x 7 Oil Pressure / Oil Temperature
x 8 G-Meter
x 9 EGT / CHT
x 10 RPM Indicator
x 11 COM
x 12 Fuel Quantity Center Tank
x 13 Fuel Quantity Wing Tank
x 14 Master Switch
x 15 Field Switch
x 16 Low Voltage Monitor
x 17 Boost Pump Switch
x 18 Nav Light Switch
x 19 Strobe Light Switch
x 20 Radio Master Switch
x 21 Left Pedal Adjustment Switch
x 22 Right Pedal Adjustment Switch
x 23 Circuit Breaker Stall Warninig
x 24 Circuit Breaker Alt Field
x 25 Circuit Breaker Alt Output
x 26 Circuit Breaker Starter
