COMFORT MAXI INSTALLATION
Room air entrance
To allows an air loop, it is necessary to have
an air entrance hole. For a better convection
if it has to be on the bottom of the apparatus.
The air will be taken from the room where
the stove is installed.
Warm air of convection
It is necessary to let the heat (accumulated inside
the casing) go out. It must be done to avoid the
superheating of the insert.
Forced ventilation
The tangential fan blows in the room the
warm air created in the insert.
To ensure the correct and safe operation of the Comfort insert, when building the replace it is necessary to
respect the clearances between the insert and the inner walls of the replace. Considering the measurements
given in the technical speci cations, you need to account for at least 50 mm of air space in the upper part and
on the two sides.
The exhaust outlet pipe must always be at a minimum distance of 5 cm from in ammable
parts.

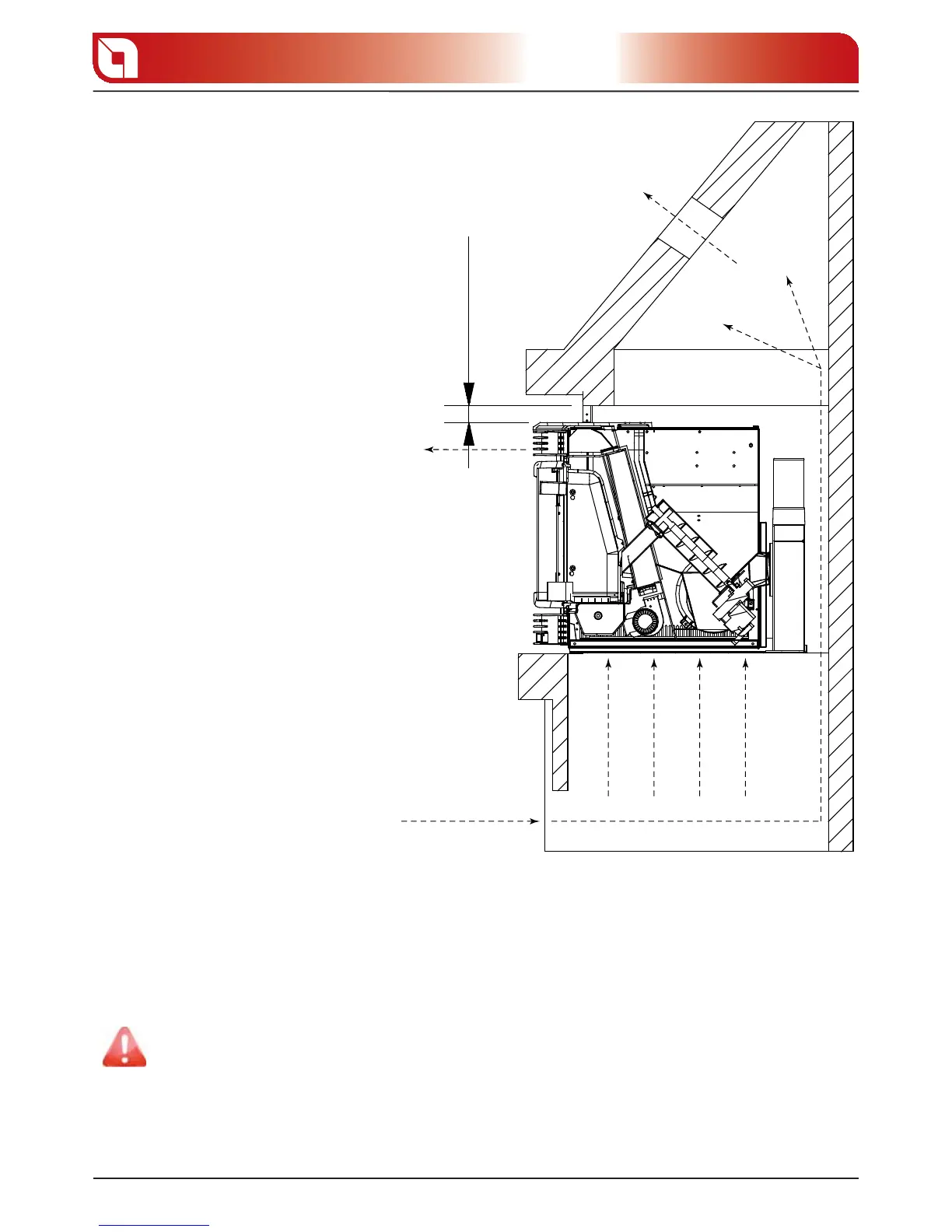

gure 7.14
