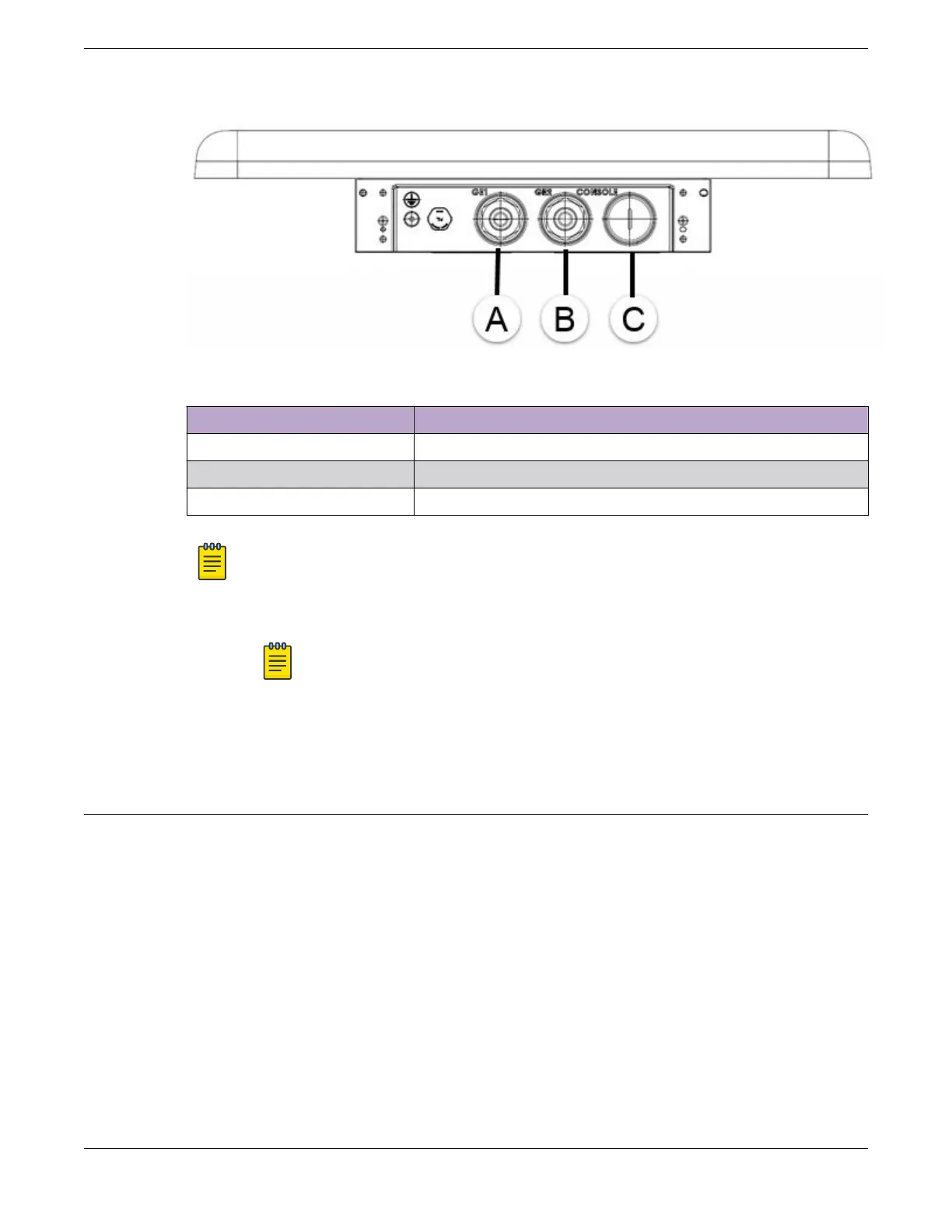

Figure 2: AP560h access point side ports
Callout
Description
A GE1 port
B GE2 port
C Console port
Note
The console port cap must be tightened to a torque of 5 in-lbs.
If a torque wrench is not available, a at-bladed screwdrive can be used. The
at blade must be 7/16 in. wide to avoid noticeable cap slot deformation.
Note
The slot deformation will not affect the IP67 console port cap
properties.
Turn the console port cap until there is resistance from the access point gasket,
and then turn the console port cap to a minimum of ½ turn further.
Purchase Order Information
Learn how to purchase various brackets and accessories for installing the AP560h
access point.
The AP560h access point is sold by itself and cannot be installed without a mounting
bracket or an accessory.
AP560h Overview Purchase Order Information
ExtremeWireless™ AP560h Access Point 11
