EZ-ACCESS PATHWAY User Manual

PATHWAY
®
Aluminum Wheelchair Ramp Kit Assembly Manual Page 26 of 40
1

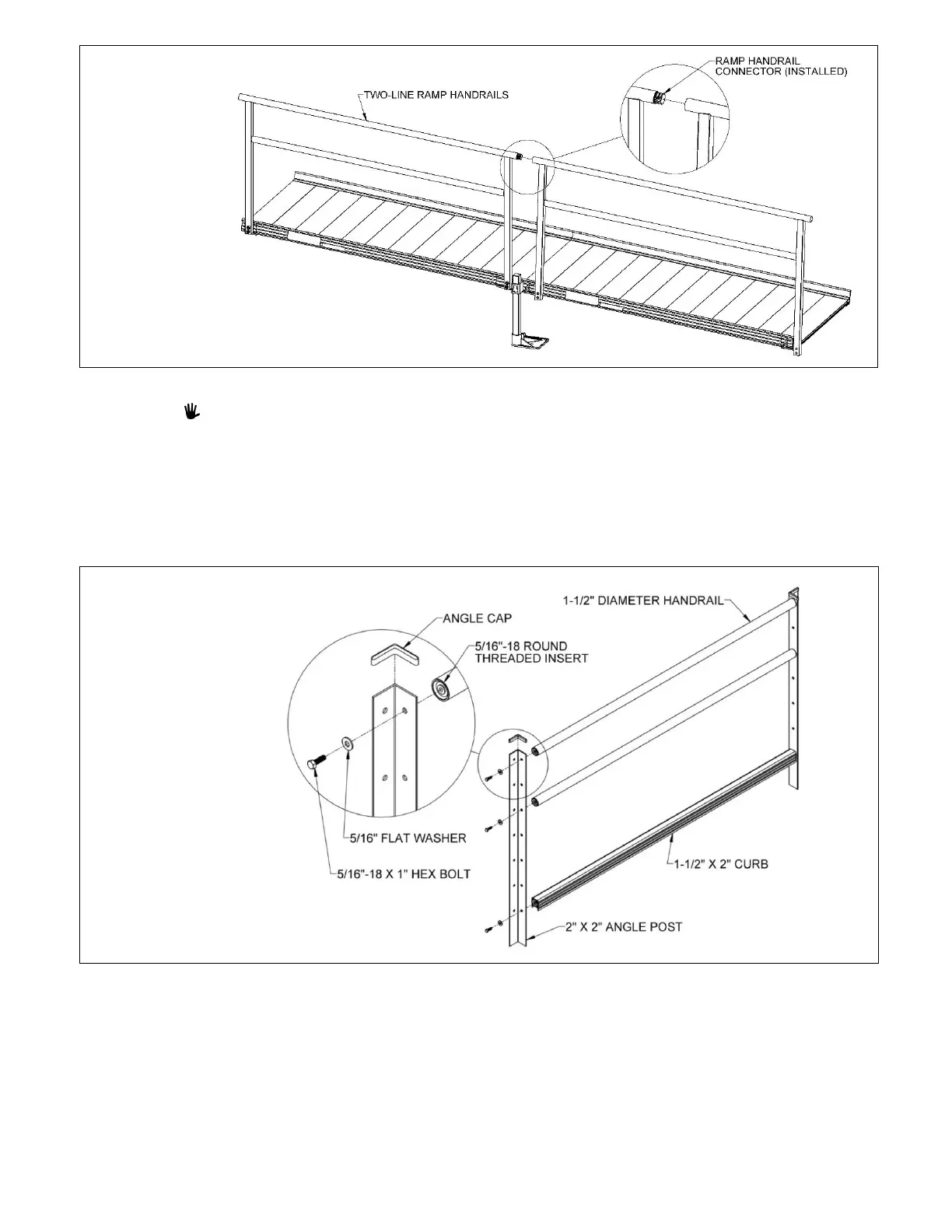

FIG. 5.2
5.2. ASSEMBLE PLATFORM HANDRAILS
If your configuration does not include a platform, skip to ‘INSTALL RAMP HANDRAIL END LOOPS’.
5.2.1. Two-Line handrails are provided in pairs when ordered with the platform. It is strongly
recommended the bolts be assembled loosely and not fully tightened until all have been
installed and the handrail has been installed on the platform.
5.2.2. Using holes shown (FIG. 5.3) for platform handrails, pre-assemble handrails by inserting a
5/16”-18 x 1” hex bolt through a 5/16” flat washer, the angle post, and into a 5/16”-18 round
threaded insert in the handrails and curb.
FIG. 5.3
