EZ-ACCESS PATHWAY User Manual

PATHWAY
®
Aluminum Wheelchair Ramp Kit Assembly Manual Page 5 of 40
1

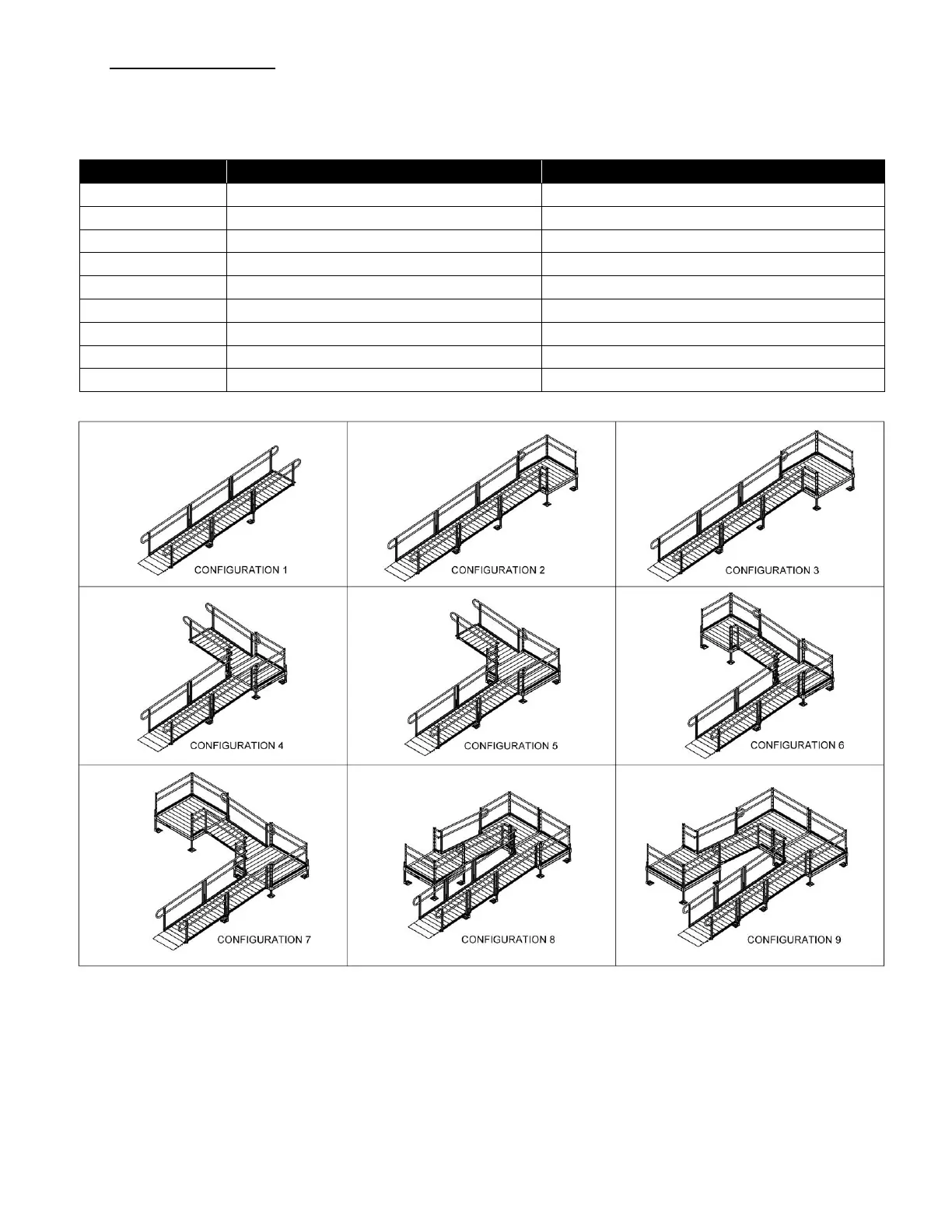

1. CONFIGURATIONS
PATHWAY Aluminum Wheelchair Ramp Kits are available in three basic configurations: straight, L-shaped,
and U-shaped, with two platform sizes available, 4’ x 4’ and 5’ x 5’. All systems feature solid surface tread
and Two-Line handrails.
CONFIGURATION #
STYLE
AVAILABLE SIZES
CONFIGURATION 1
STRAIGHT
2’ INCREMENTS RANGING FROM 10’-30’ IN LENGTH
CONFIGURATION 2
STRAIGHT W/ 4’ X 4’ TOP PLATFORM
2’ INCREMENTS RANGING FROM 10’-30’ IN LENGTH
CONFIGURATION 3
STRAIGHT W/ 5’ X 5’ TOP PLATFORM
2’ INCREMENTS RANGING FROM 10’-30’ IN LENGTH
CONFIGURATION 4
L-SHAPED W/ 4’ X 4’ TURN PLATFORM
2’ INCREMENTS RANGING FROM 10’-30’ IN LENGTH
CONFIGURATION 5
L-SHAPED W/ 5’ X 5’ TURN PLATFORM
2’ INCREMENTS RANGING FROM 10’-30’ IN LENGTH
CONFIGURATION 6
L-SHAPED W/ 4’ X 4’ TURN AND TOP PLATFORM
2’ INCREMENTS RANGING FROM 10’-30’ IN LENGTH
CONFIGURATION 7
L-SHAPED W/ 5’ X 5’ TURN AND TOP PLATFORM
2’ INCREMENTS RANGING FROM 10’-30’ IN LENGTH
CONFIGURATION 8
U-SHAPED W/ 4’ X 4’ PLATFORMS
2’ INCREMENTS RANGING FROM 20’-30’ IN LENGTH
CONFIGURATION 9
U-SHAPED W/ 5’ X 5’ PLATFORMS
2’ INCREMENTS RANGING FROM 20’-30’ IN LENGTH
